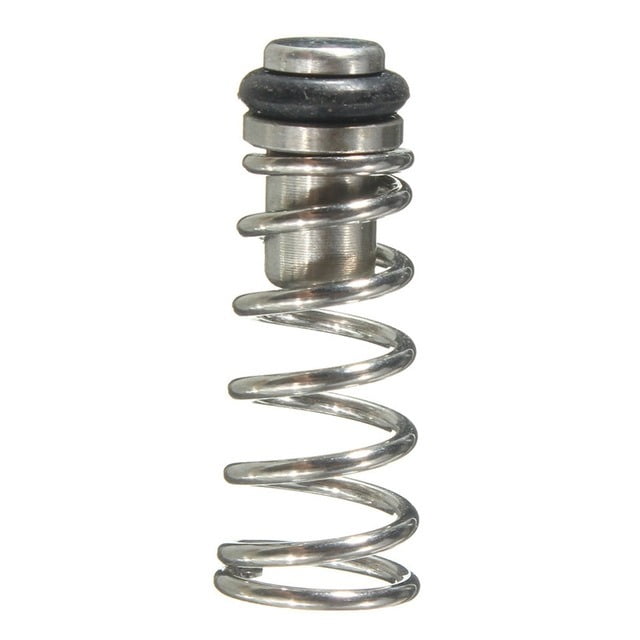

Replacement poppet and spring assembly for 18–19 litre Cornelius ball lock post mix beer kegs. Essential maintenance component that ensures proper gas and liquid flow control. Direct fit for standard post mix keg systems. Keep spares on hand to maintain consistent carbonation and pour performance across your draught setup.

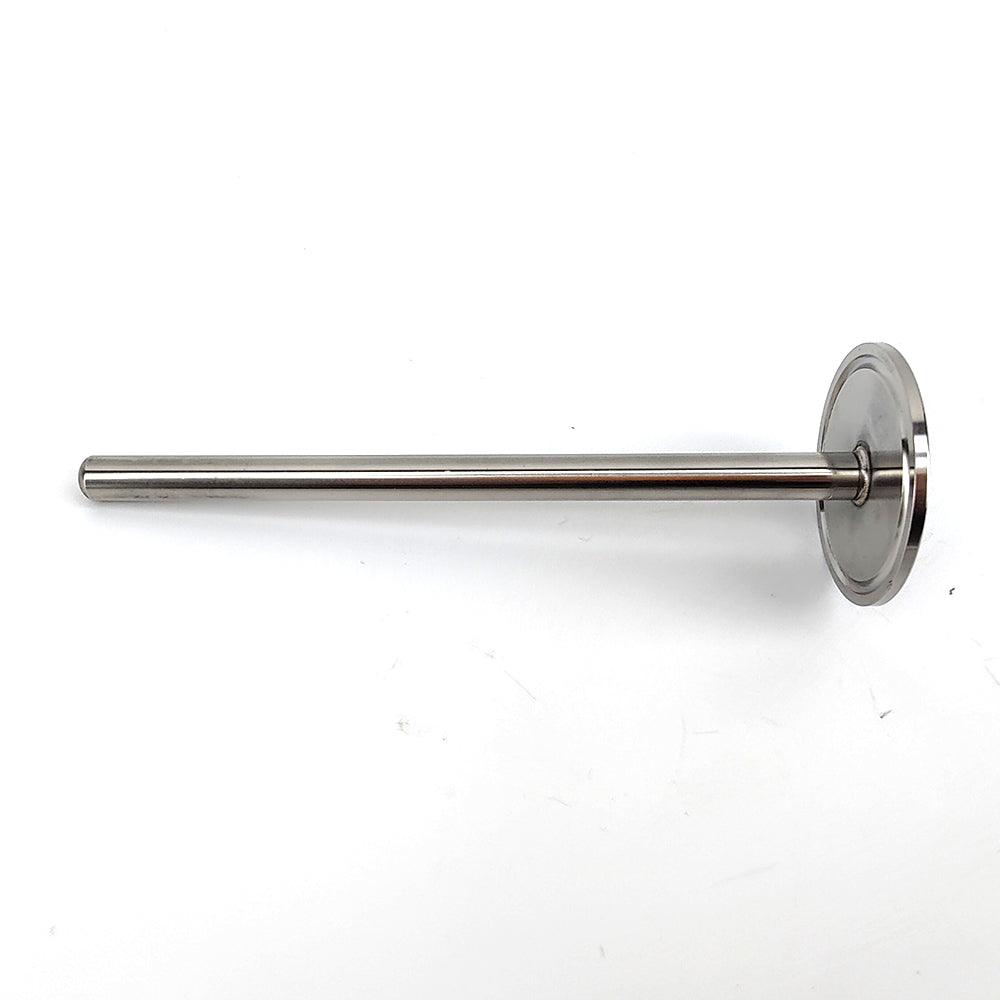

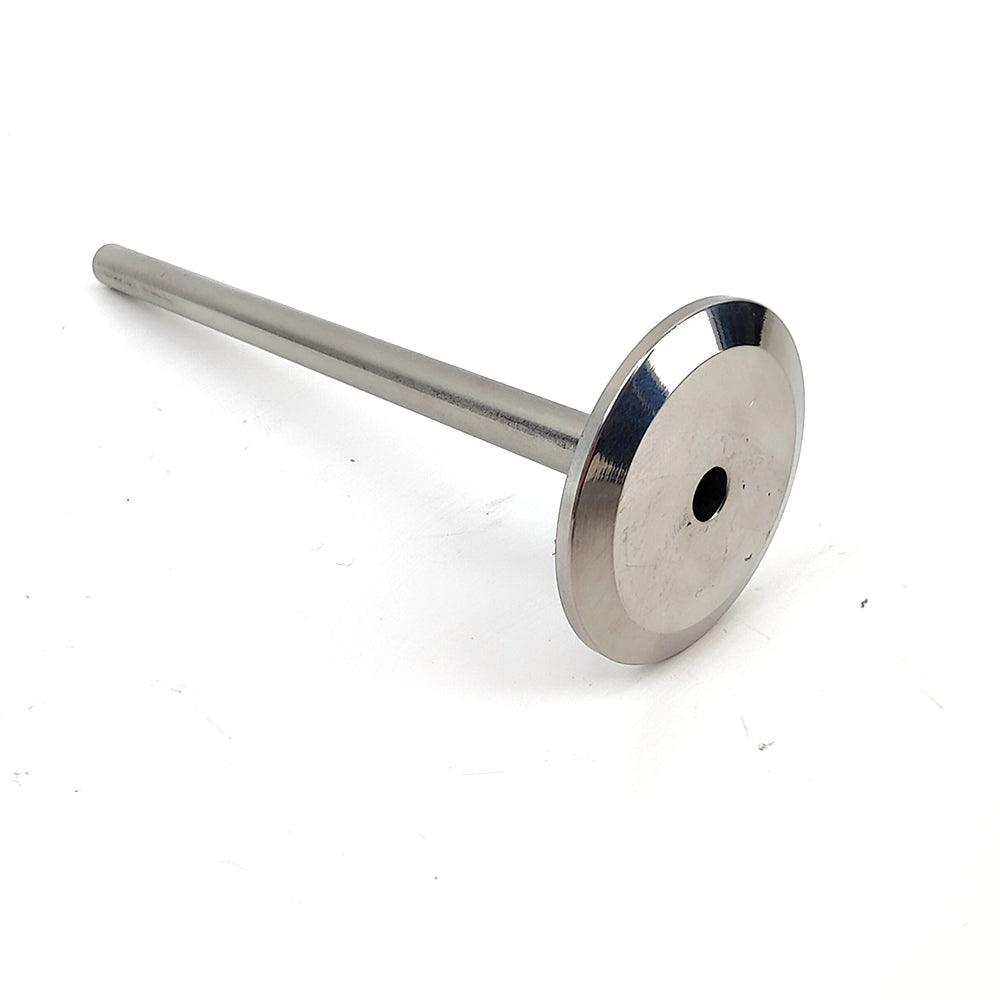

1.5-Inch Tri-Clamp Thermowell – 152mm

Measure the internal temperature of your fermenter, brewing vessel or processing tank with this 1.5-inch Tri-Clamp-compatible thermowell. Its 152mm (6-inch) length positions a compatible temperature probe inside the vessel for more representative readings while keeping the probe isolated from the liquid.

Designed for temperature probes measuring less than 6mm in diameter, it provides a practical connection for compatible brewing controllers, thermometers and temperature-monitoring systems.

Key Features

Direct Internal Temperature Monitoring
Positions the probe inside the vessel to provide a more representative temperature reading than an externally mounted sensor.

1.5-Inch Tri-Clamp Connection
Fits compatible 1.5-inch Tri-Clamp ports commonly found on fermenters, brewing vessels and processing equipment.

152mm Probe Length
The 6-inch insertion length reaches into the vessel for effective temperature monitoring.

Suitable for Probes Under 6mm
Designed to accommodate compatible temperature probes measuring less than 6mm in diameter.

Protects the Temperature Probe
Separates the probe from the vessel contents, making it easier to remove or replace without direct liquid contact.

Ideal For

• Fermentation temperature monitoring
• Brewing vessels and fermenters
• Temperature controllers
• Distillation equipment
• Food and beverage processing tanks
• Other compatible Tri-Clamp systems

Specifications

• Connection size: 1.5-inch Tri-Clamp
• Thermowell length: 152mm
• Imperial length: 6 inches
• Maximum probe diameter: Less than 6mm
• Product code: KL21920

Check the diameter and insertion length of your temperature probe before purchase. A compatible Tri-Clamp gasket and clamp may be required for installation.

1.5-inch tri clover accessories in 304 stainless steel. These are for the 50L and 100L fermenters

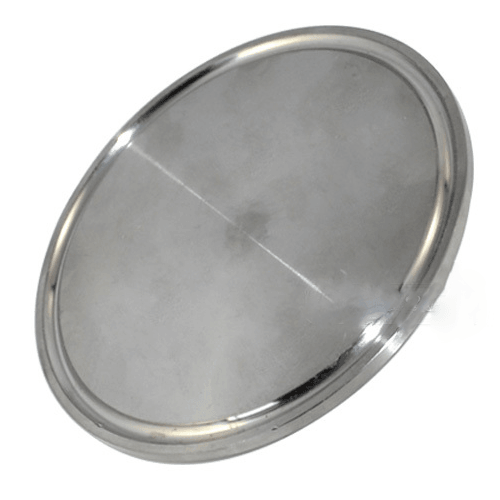

A 1.5 inch tri clover flat plate for blanking off a TC port on your still, boiler or fermenter. It seats against a standard clamp and gasket for a clean, pressure tight seal. Simple, stainless and always useful to have in the parts drawer.

This thermowell works great with any kegmenter, keggle, brew pot, boiler and various other brewery hardware.

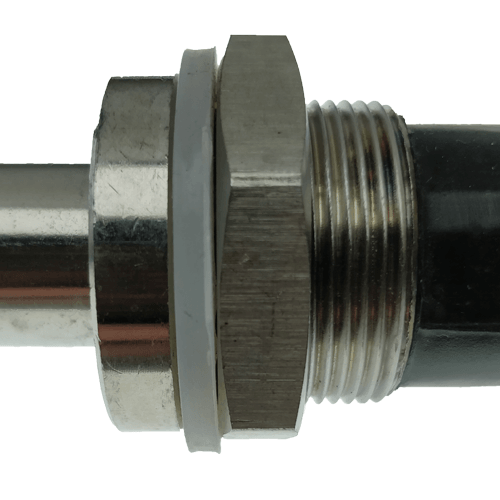

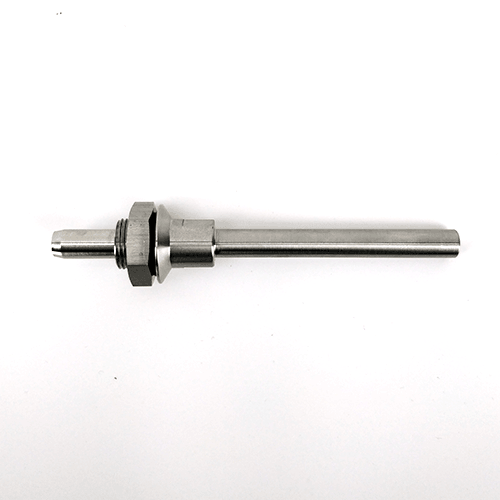

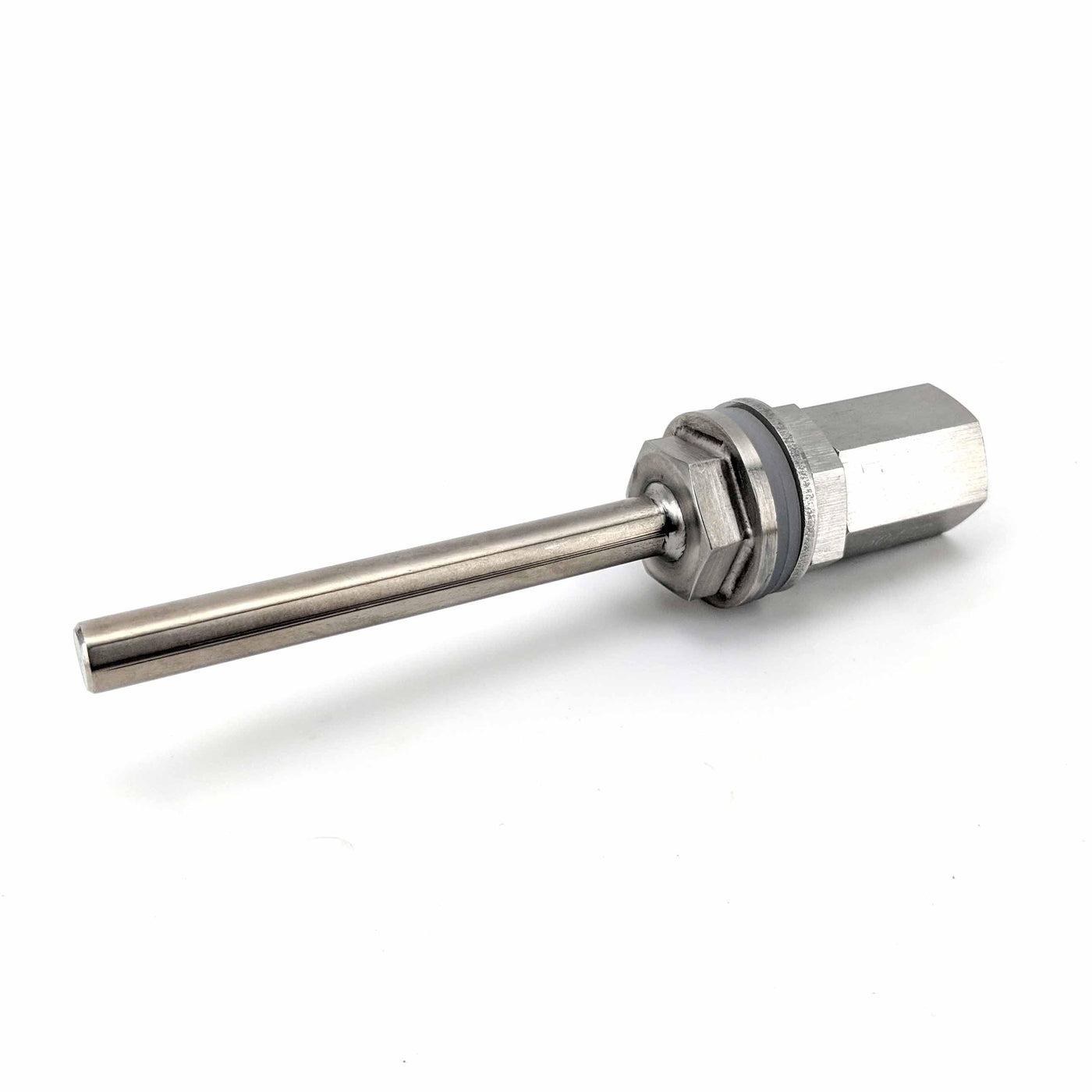

This versatile weldless thermowell is designed for accurate temperature monitoring in stainless steel brewing vessels. The updated design includes a coupling nut, making it compatible with digital temperature probes (up to 7mm diameter) as well as bi‑metal temperature dials, both short‑stem and long‑stem.

Installation is weld‑free: drill a 20mm hole, lightly file if needed, and secure the thermowell in place. The sanitary thread design ensures no threads are exposed to liquid inside the vessel. Soft silicone seals conform to curved surfaces, creating a tight, leak‑free fit.

Key Features:

• 1/2" weldless threaded thermowell
• Fits probes up to 7 mm in diameter
• Includes coupling nut for bi‑metal dial compatibility
• Weld‑free installation
• Sanitary thread design
• Silicone seals for curved surfaces
• Suitable for a wide range of brewing vessels

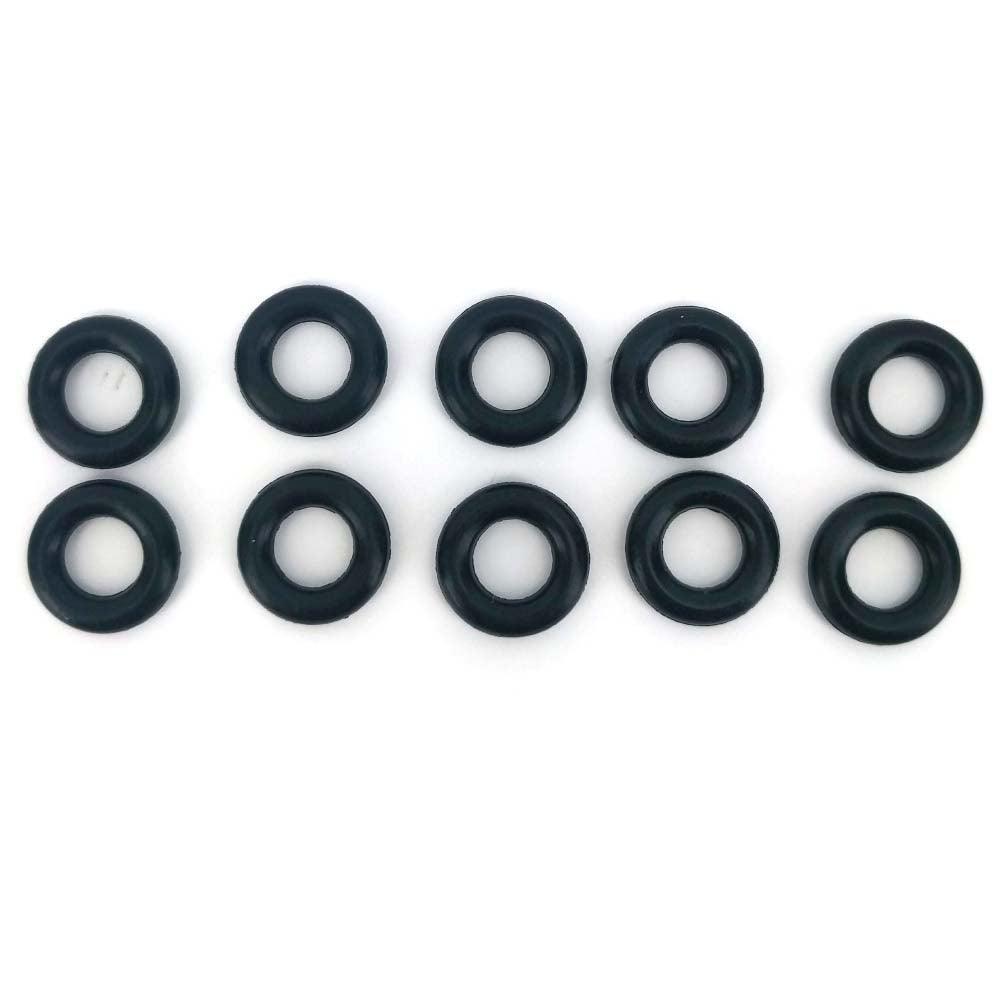

These o-rings are a high quality o-ring made from Nitrile N70 compound. This is a value pack of 10 o-rings. These fit all ball lock and pin lock kegs. The dip tube o-ring is easy to replace and is simply a matter of removing the post first then lifting up the gas and liquid dip tubes to reveal the location of the o-ring.

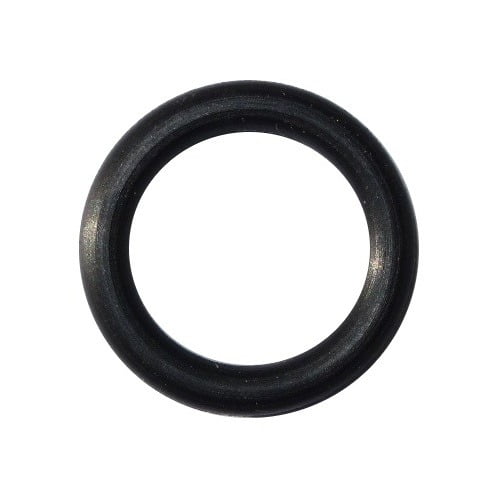

These O-Rings are the correct replacement for the O-Rings under the posts on your Corny kegs. When the o-rings are new they have a round cross section however after being used for some time they turn into a square cross section so dont be alarmed if you take the old one out and wonder why the new one is round. It's simply that the old o-ring has changed shape over time.

Made from 304 food-grade stainless steel and compatible with all standard 2inch tri-clover, tri-clamp, ferrule fittings.

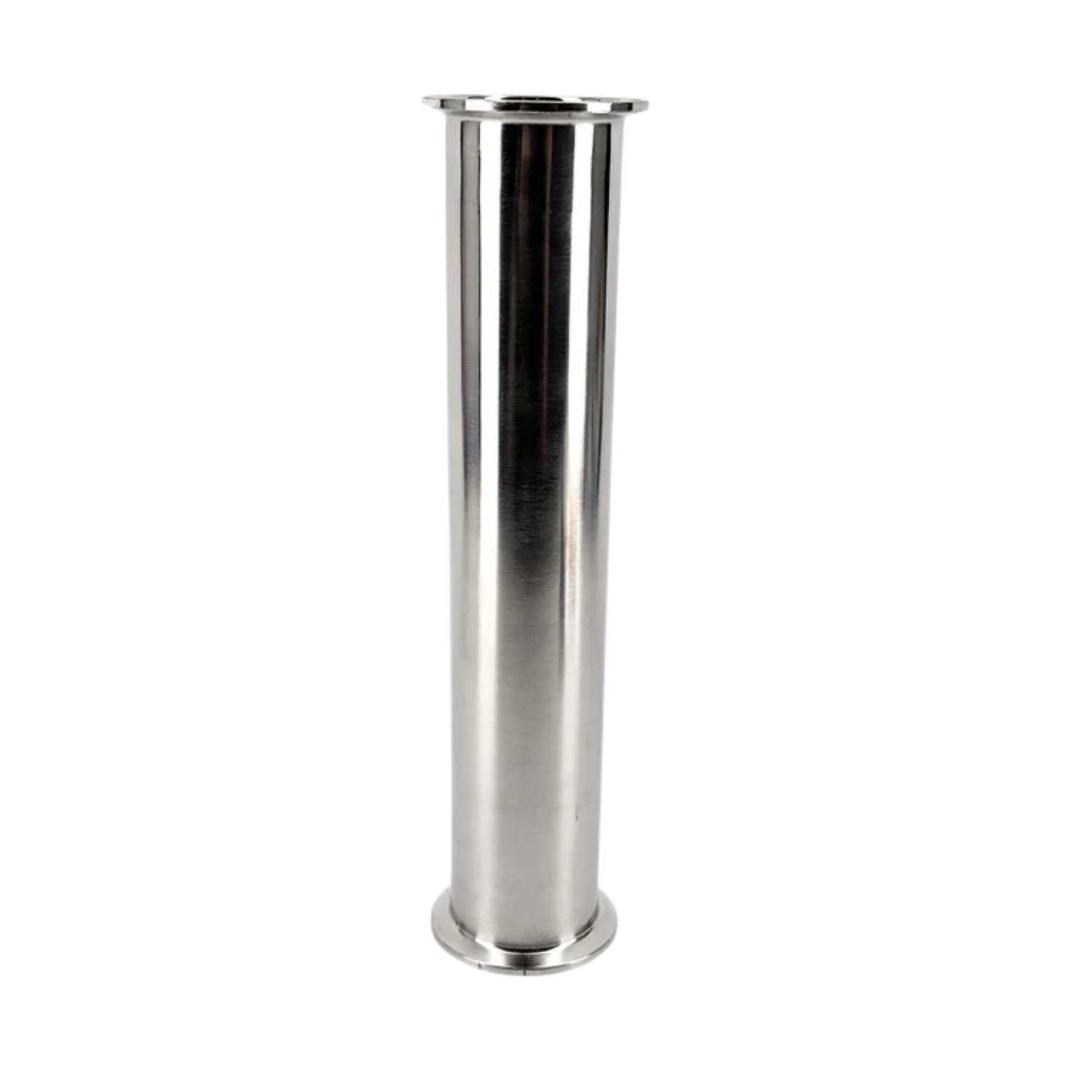

This stainless steel 2inch tube extension can be used for breweries, making carbon filters or simply extending a 2inch tri-clover fitting

Approximate Dimensions

• Inner Diameter: 47 mm
• Outer Diameter: 63 mm
• Length: 250 mm

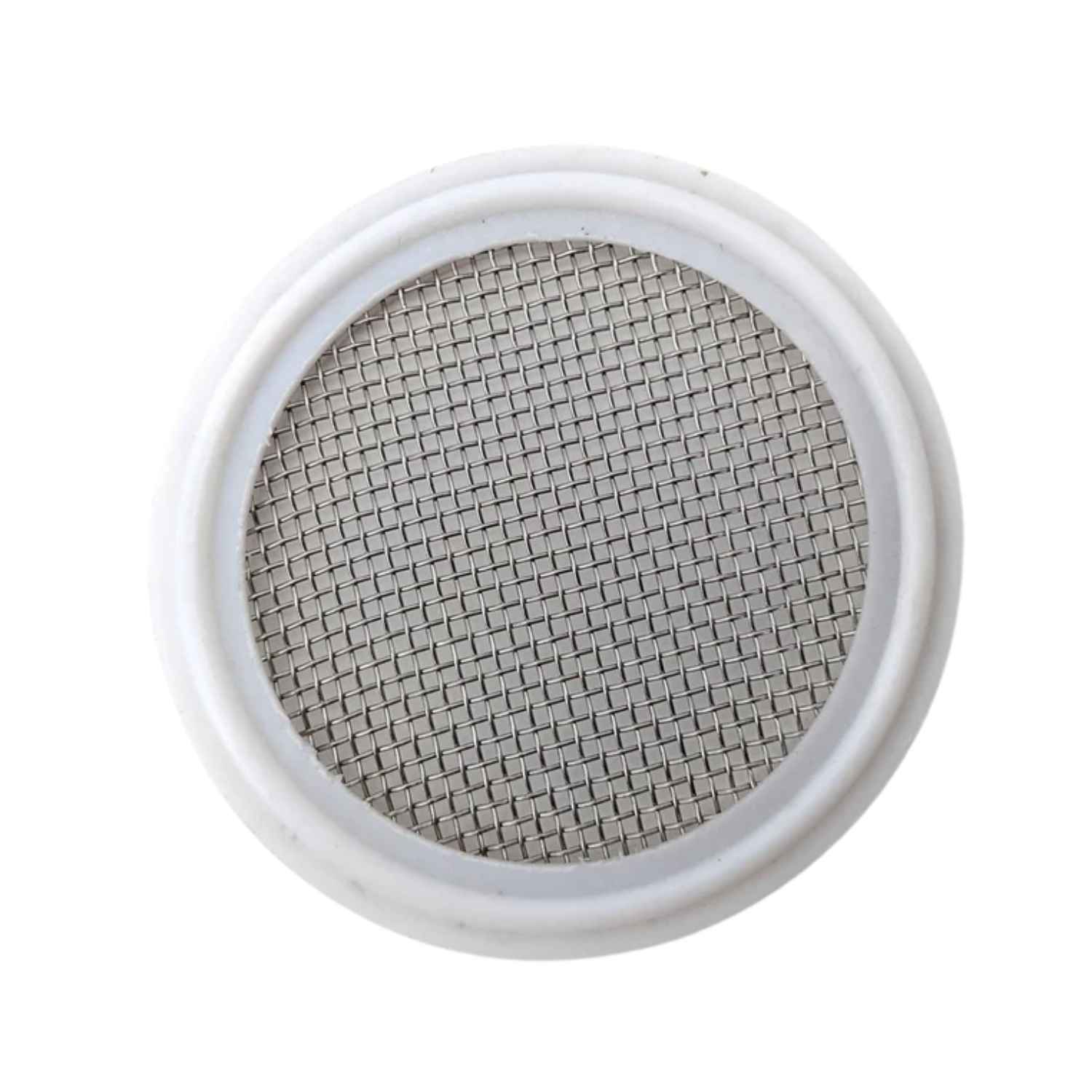

Upgrade your distillation or brewing setup with this premium 2 Inch Tri‑Clover Stainless Steel Mesh Screen, engineered for durability, precision, and reliable filtration. Made from high‑quality 304 grade stainless steel and fitted with a chemical‑resistant PTFE (Teflon) seal, this screen delivers long‑lasting performance in demanding distillation and food‑grade applications.

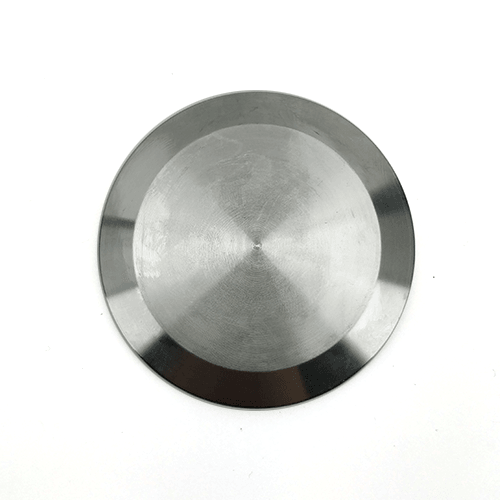

A solid 2 inch tri clover end cap in 304 stainless steel, made to blank off a TC port on your still, boiler or fermenter. It seats against a standard clamp and gasket for a clean, secure seal every time. Simple, sturdy, and endlessly handy around the brewery.

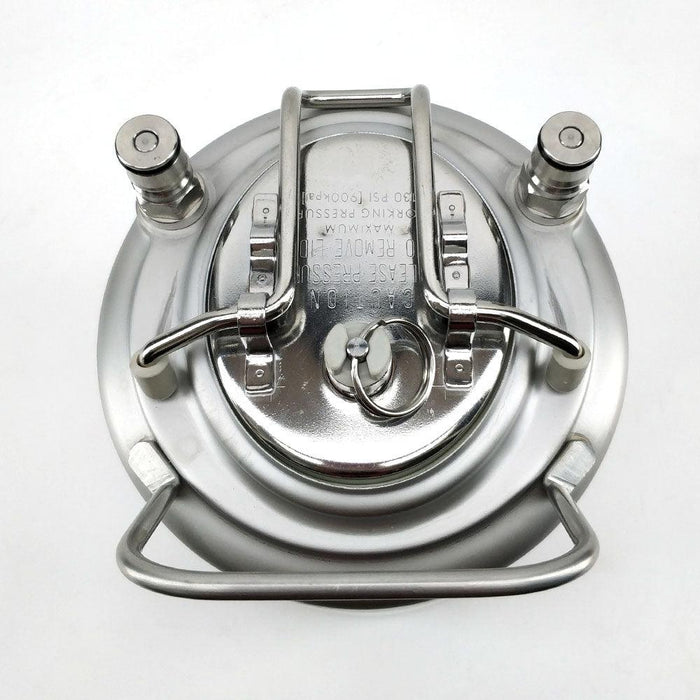

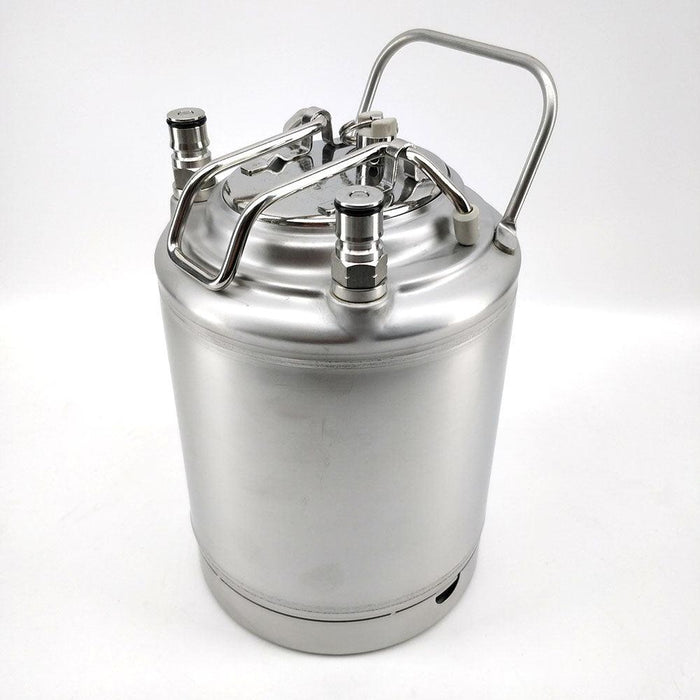

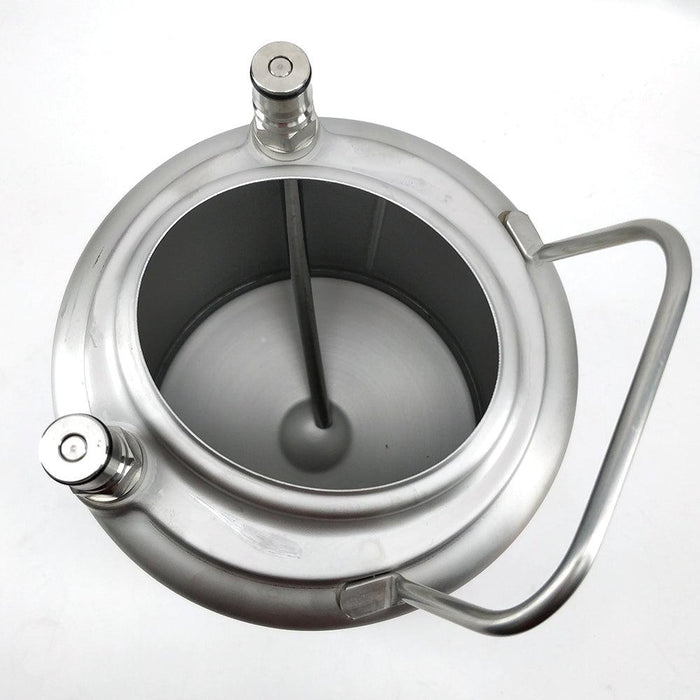

2L Ball Lock Keg with Corny Keg Lid and Metal Handle (152mm x 252mm)

The KegLand 2000mL Ball Lock Keg is the smallest Cornelius keg lid capable ball lock keg to date. Primarily designed for a compact carbonating reservoir for soda water systems. It can of course be used as a more homebrew-styled portable party keg growler.

The other main difference between this keg and the Mini Keg range is that it comes with a rigid stainless steel gas and liquid dip tube (Please see internal photo). Meaning it cannot be used on its side without configuring a floating dip tube. To do this and not cut down the internal dip tube preventing re-saleability.

Dimensions:

• 152mm  wide x 252mm to the handle.
• 231mm to the top of the ball lock posts. If using a machined ball lock disconnect the height would be approximately 273mm.

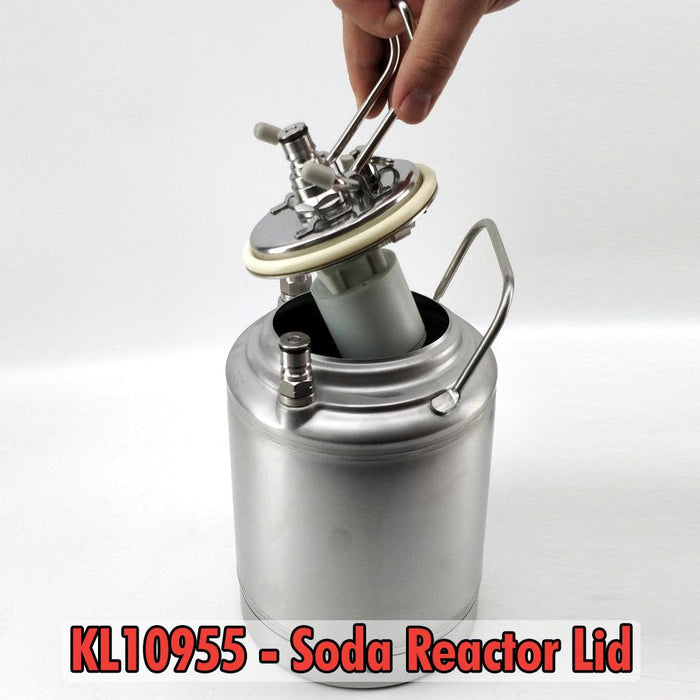

• When using a soda reactor lid. The height including a machined ball lock disconnect would be 297mm

Flexible, heat-resistant and easy to work with, this heavy-duty silicone tube is ideal for transferring glycol and liquids in homebrewing and beverage systems. Its soft silicone construction creates a reliable seal over compatible 10mm hose barbs and offers good resistance to heat and chemicals.

Supplied as a convenient 2-metre roll, it is particularly well suited to glycol transfer from compatible IceMaster G20 and G40 chillers, as well as other suitable brewery applications.

Key Features

High-Temperature Resistance
Designed to withstand continuous exposure to temperatures above 200°C, making it suitable for a range of hot-liquid applications.

Flexible Silicone Construction
The soft, pliable material is easy to route through brewing systems and seals securely around compatible hose barbs.

Good Chemical Resistance
Suitable for transferring glycol and other compatible liquids commonly used in brewery and beverage systems.

Compatible with 10mm Barbs
The 10mm internal diameter fits compatible 10mm hose-barb connections.

Convenient Two-Metre Length
Supplied as a 2m roll for equipment connections, replacement lines and custom installations.

Ideal For

• Glycol transfer lines
• IceMaster G20 and G40 glycol chillers
• Homebrew equipment
• Brewery liquid-transfer systems
• Compatible hot-liquid applications
• Equipment using 10mm hose barbs

Specifications

• Length: 2 metres
• Internal diameter: 10mm
• Outside diameter: 15mm
• Wall thickness: 2.5mm
• Approximate burst pressure: 35 PSI
• Recommended operating pressure: Below 20 PSI
• Product code: KL18142

Important Information

This unreinforced silicone tubing is intended for low-pressure applications. Do not use it above 20 PSI or with mains water pressure. Its approximate burst pressure is 35 PSI, but this should not be treated as a normal operating pressure.

For secure attachment to a 10mm barb, use a correctly sized hose clamp. Confirm that the tubing is chemically and thermally compatible with your intended application before use.

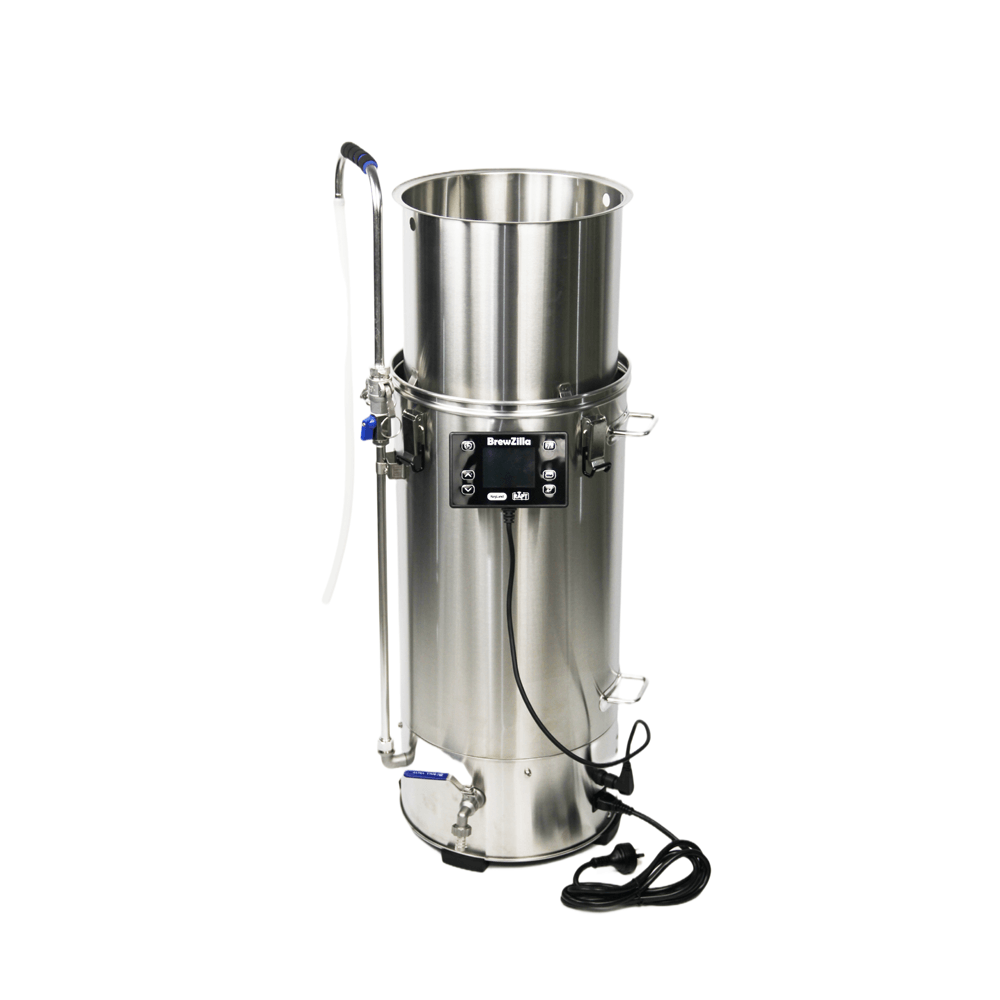

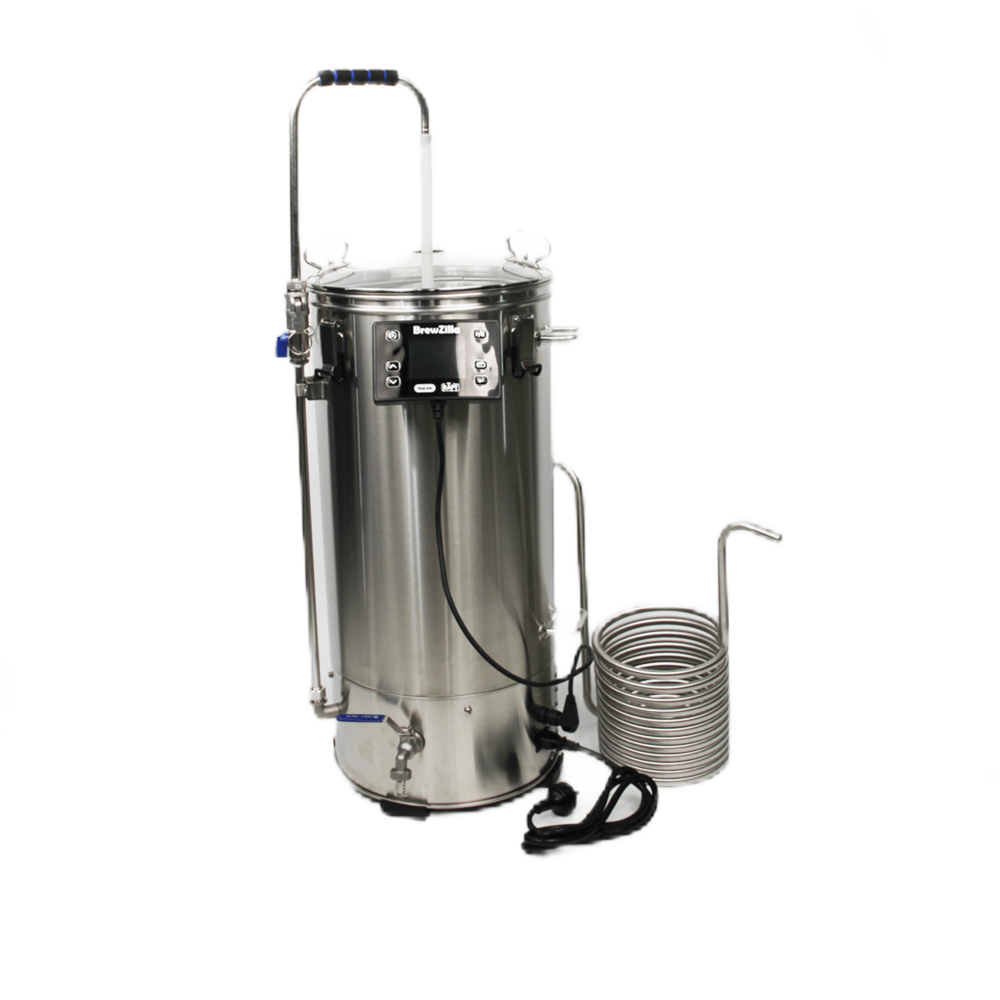

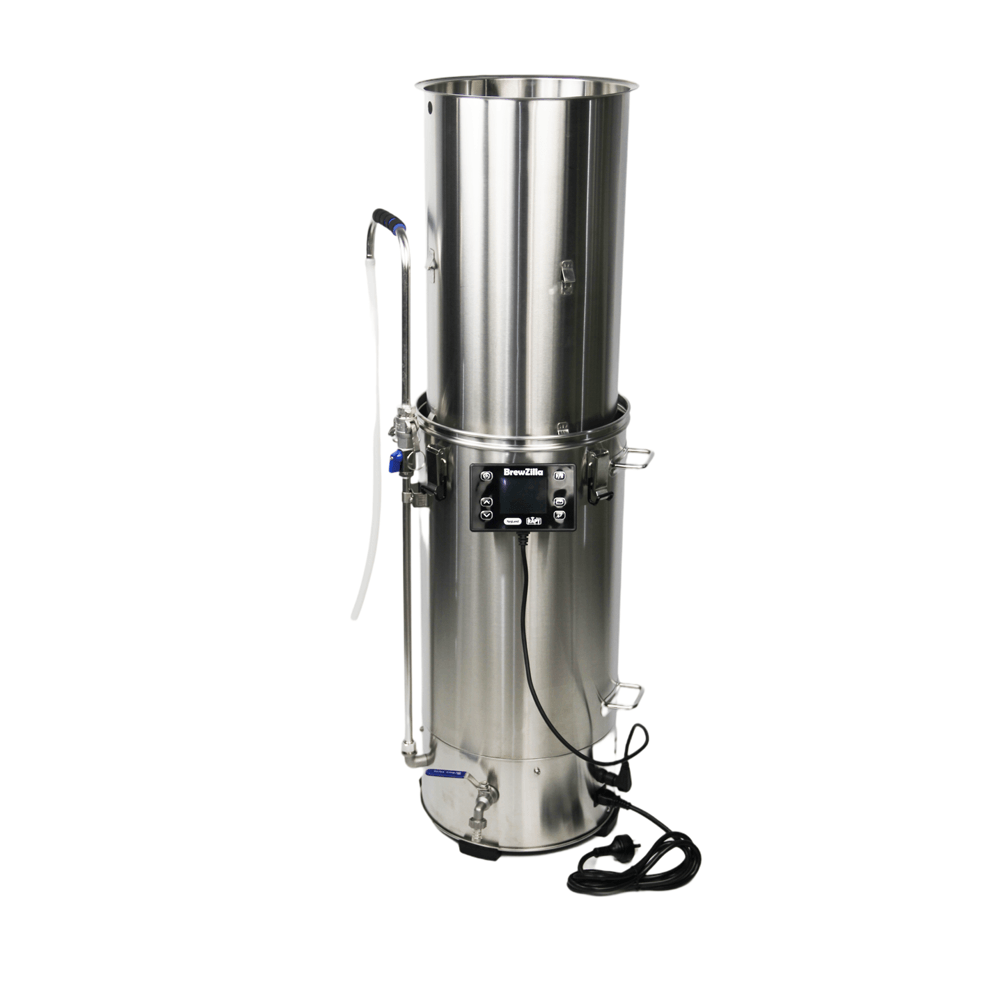

The BrewZilla Gen 4 is designed to be a compact single vessel all grain home brewing system that can be run off a single 220-240v socket. A complete turnkey system with a delay timing feature and step mash functionality.

Built to make batches up to 30L, it is the ideal solution for those who want to take the first step in all-grain brewing while also wanting full control of their batch from start to finish.

The Google Play Android App can be downloaded via the link below.
https://play.google.com/store/apps/details?id=io.rapt

"This app is a web mobile wrapper that allows you to browse the RAPT portal/website so that the website renders into a mobile device screen increasing usability on your device.  It also gives you the added functionality of push notifications to your mobile device."

Wifi / RAPT Integration

The BrewZilla brewery type has been used across the world and won homebrew competitions in every country the brewery has been sold.  It's the most sold single vessel brewery worldwide and can be used for Home Brewing, Distillation, Preserve Canning, Sous Vide Cooking or just as a boiler. Our larger versions can also be used as a portable hot tub!

Complete Concave Draining Base
The new base design completely drains out meaning you capture every single bit of wort. No longer do you need to tilt the brewery to extract every last bit of wort.  This also makes it suitable for CIP cleaning using our new Low Volume CIP Spray Rotor.

PPSU Graduated Sight Glass (Stock standard in 4.1)
With the added sight glass you'll be able to sparge with confidence knowing the level of your BrewZilla without having to peer down the side/lift out the malt pipe.

Adjustable Lid Clamps (Stock standard in 4.1)
Now you can adjust the tension as required for whatever accessory you're adding to the top of your BrewZilla. Whether it be a lob-sided distillation apparatus or simply a tighter hold on Extension Sleeves.
WARNING: Do not use the clamps or adjustable clamps with a glass lid, the clamps are only designed for metal steam condenser, distillation lids or extensions.

False Bottom Pump Protection Screen
One of the key features of all the BrewZilla single vessel units is the false bottom protection screen. This screen avoids the need for doing a whirlpool and it filters wort and prevents more than 95% of hops and hot break getting sucked into the pump and thus greatly reduces the blocked pump issues that are often an issue with other brewery designs.

Ultra Low Watt Density
The BrewZilla has signficantly lower watt density than other breweries.  The main benefit of lower watt densities are that it enables you to produce lighter colours of beers that would otherwise get some caramelisation.  The ultra low watt density also means you have less chance of boil overs, you get less crud sticking to the element making cleaning easier and ultimately reduces wear and tear on the element meaning even with significant abuse your elements will last way longer.

RAPT/Wifi Connected
The new Gen 4 model is the first BrewZilla that connects to the RAPT Portal (https://app.rapt.io/).  This portal allows you to track, record and monitor your brews online.  This greatly reduces the need for handwritten records of your brew day as it's all done automatically.

The RAPT portal also allows you to see every brew you have done in the past and control the brewery remotely so you can start pre-heating water remotely or simply keep an eye on the brewing process while you do something else.

Get push notifications to your mobile phone of when to add hops or start the boil.
Along with this ease of access and control. The RAPT BrewZilla will also allow you to fully customise your brewday with profiles specifically tuned to your style of brewing or your recipe.
For example you could set up your profile to receive certain alarms or messages when you are required to do something. E.g. Adding grain when the strike temperature is reached. Mash-Out Alarm when you're ready to sparge, Salt / Hop additions when you've reached the boil.

As well as hop stand additions or chilling instructions. All of this at the touch of a button that is preprogrammed to what you want to do. No more egg timers, no more phone timers. Everything controlled by the one area.

Bluetooth Gateway Device
KegLand is currently developing various bluetooth devices such as RAPT Bluetooth Thermometer (low energy BLE) other sensors which will be compatible with this brewery.  This brewery is able to receive the BLE beacons and relay this information onto the RAPT portal.

Also by receiving multiple BLE thermometer sensors the Brewery is able to make smater and more automated decisions on how to control the brewing or distillilation process.  For example a BLE thermometer can be placed into your coolant water so you get an alarm if the temperature is too high, a BLE thermometer can be put into the middle of the malt pipe so you can more accurately control elements switching on/off to achieve a core malt pipe temperature etc.

Improved Base Design with Easy Access Pump
The new base design means we have sealed all the electronics on the underside of the brewery into a separate junction box. This has allowed us to omit the bottom cover.  This significant design change means that the pump can be accessed much more easily.

It also means the plumbing can be changed more easily too. For instance you can re-arrange the plumping to the pump to pump into the tap outlet or change this so the tap outlet bypasses the pump.  These changes make it more flexible but also much easier to take apart the pump for cleaning and maintenance if required.

RAPT Controller with Full Colour Screen
The new RAPT controller has an easy to read full colour screen. The controller can also be disconnected easily making wash down easier.  The controller is mounted in a higher position with a tilting frame so you can angle the screen toward you depending on how tall you are.

The new controller module is packed with features and KegLand is consistently updating firmware to include more features.  Firmware updates are quick and painless and with a single click you can upgrade all Gen 4 units to the latest firmware to take advantage of new features and accessories. Forget getting on your knees mid-brew, do it all while standing or sitting next to your BrewZilla.
The controller can also activate the pump. Meaning there are no toggle switches anywhere on the BrewZilla Gen 4.

IEC Cable for Easy Storage
The new design has a removable IEC cable so you can unplug the cable making it more neat for storage.

Improved Lid Handles
The new lid handles are better designed and made from stainless so they are more robust and more ergonomic to hold especially with wet hands.

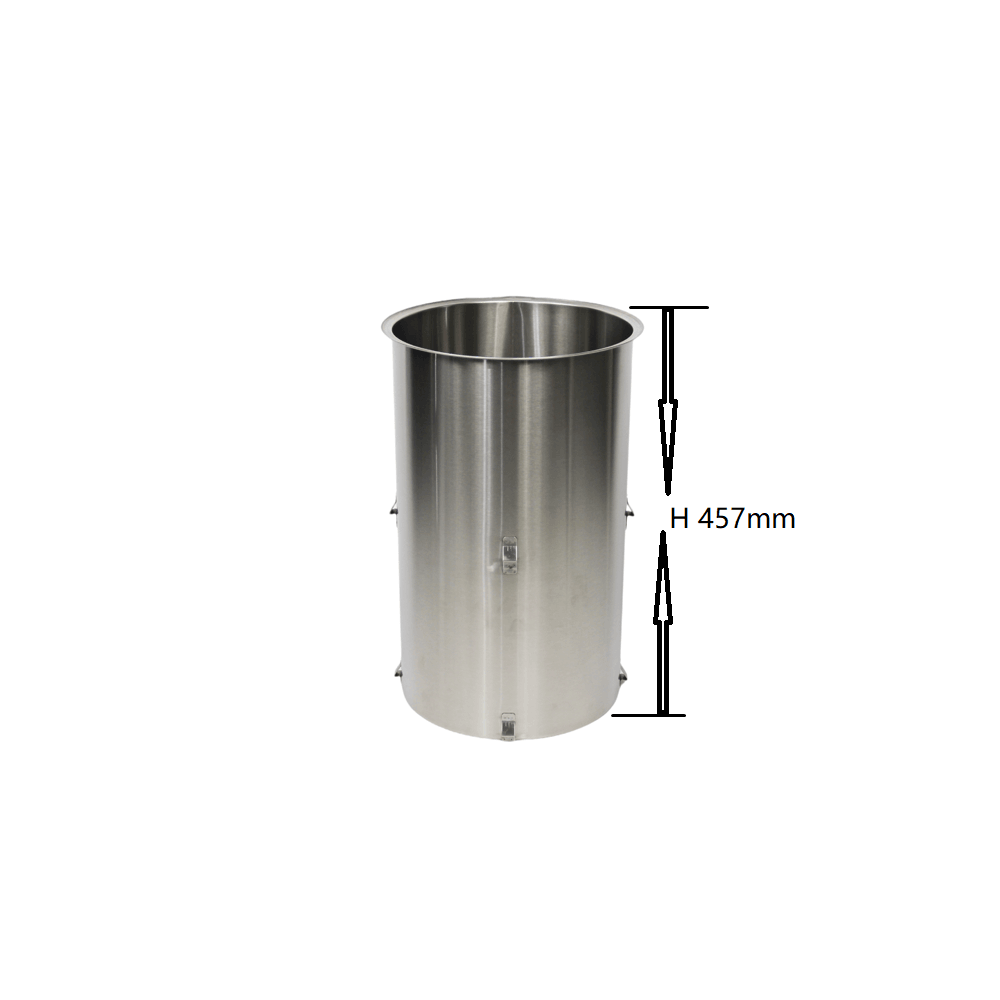

Two Stage Oversized Malt Pipe
This new malt pipe design is 30% larger meaning you can mash more grains and either make more beer or make higher gravity beers.  the new malt pipe also has a two stage height adjustment so you hand half lift the malt pipe and set on the supporting halo ring halfway up.

This makes it more ergonomical so you can lift the heavy malt pipe up in two stages but has the second advantage that it makes the brewery more suitable for smaller batches too where raising the malt pipe half way up is preferable.

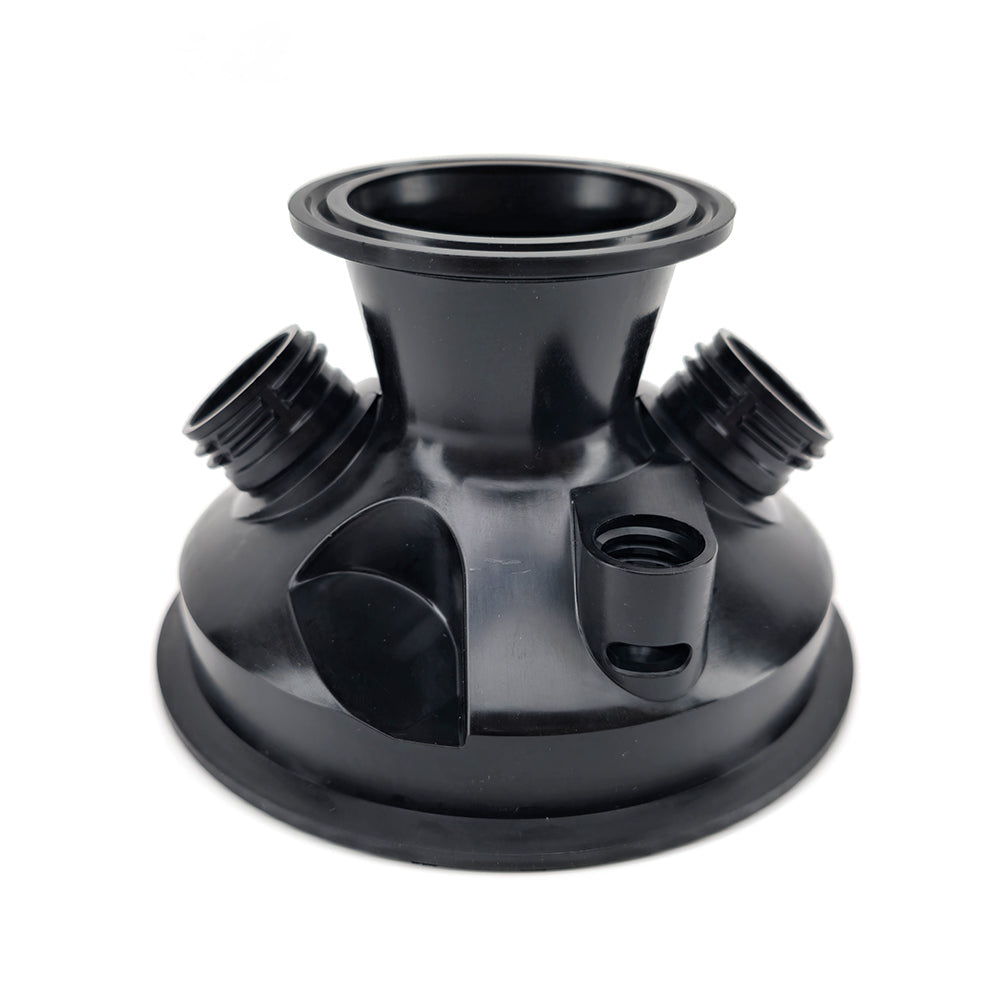

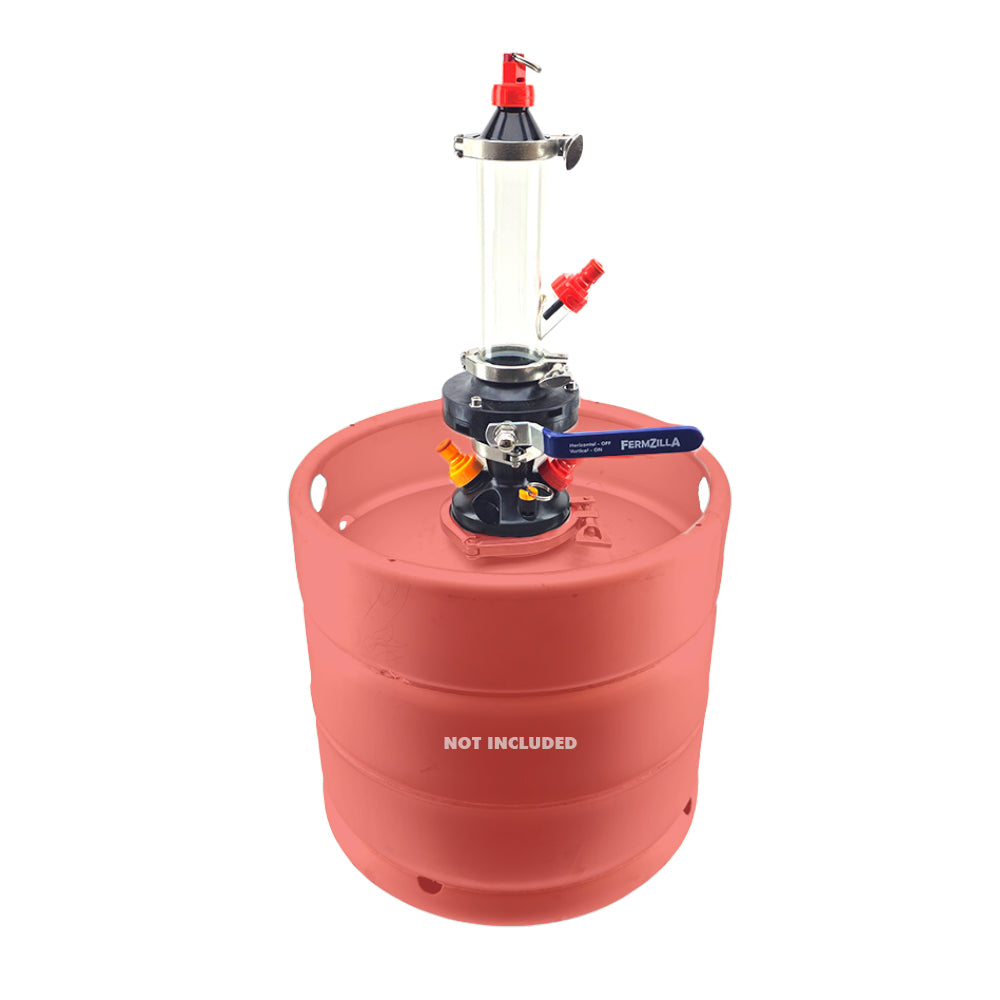

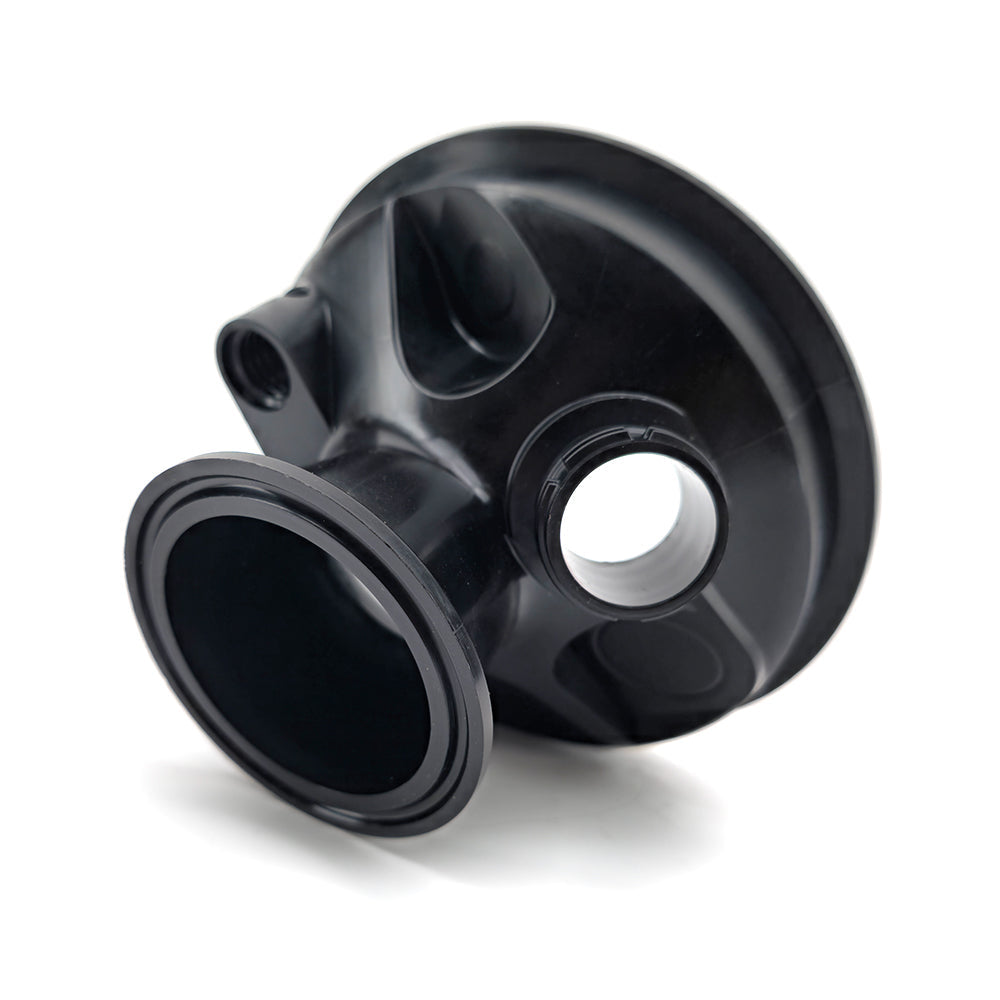

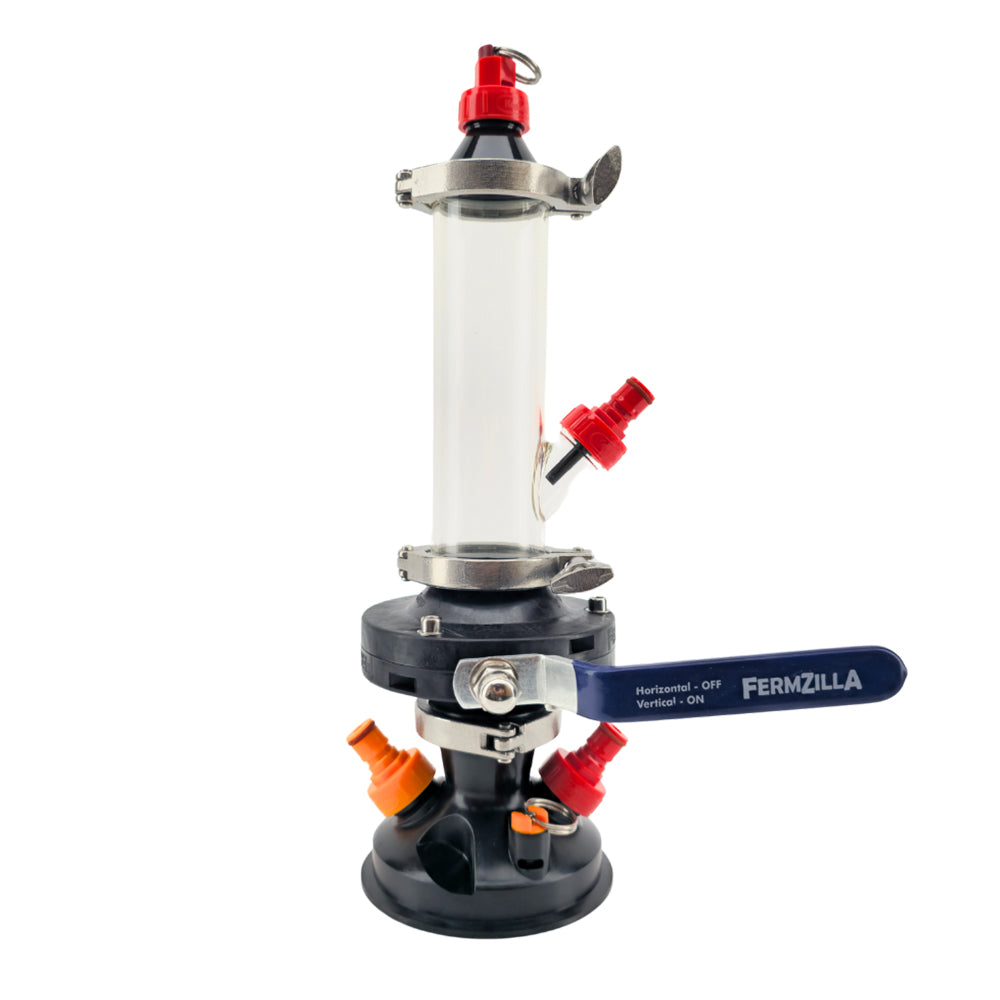

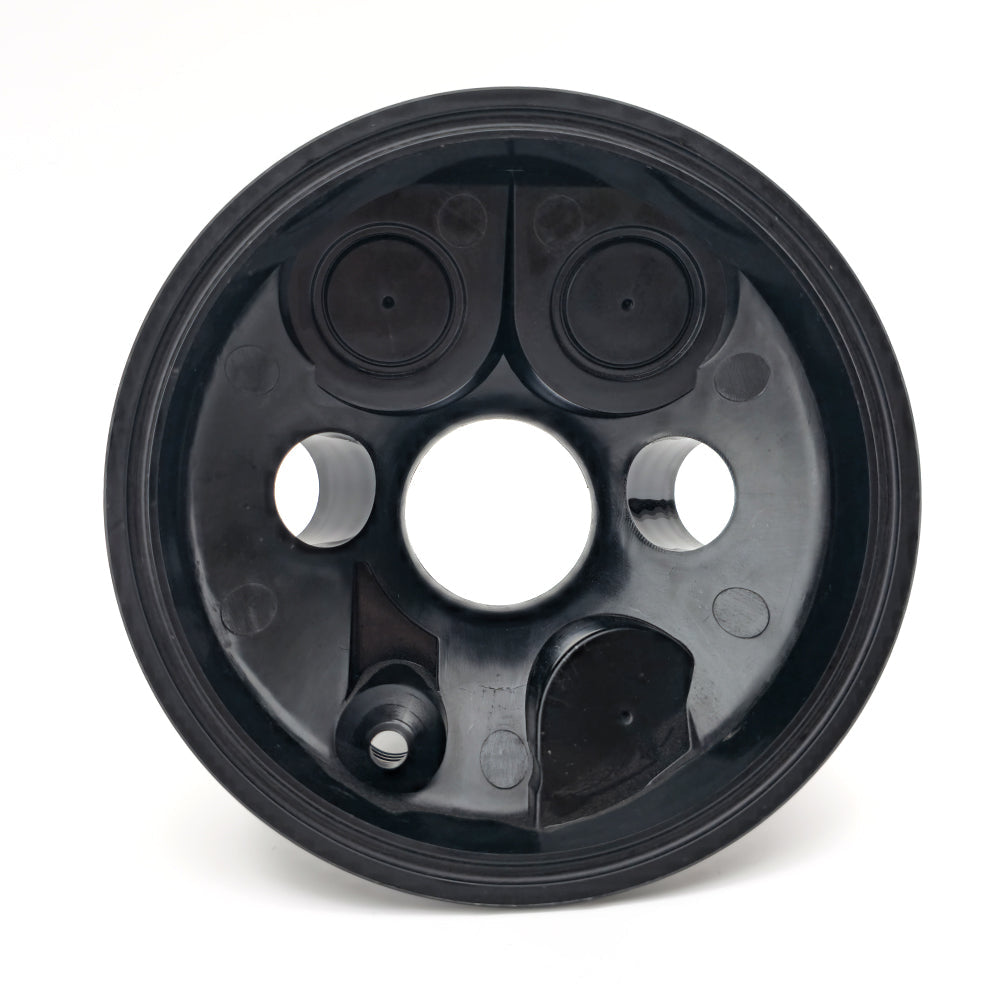

With just a few clicks you could be on your way for upgrading your Kegmenter with the New 4 Inch TC Pressure Lid with 2 Inch Port. Plus! all the hop bong goodies thought out so you don't have to.

This will also improve the strength of WiFi and Bluetooth of your RAPT Pill as it can send data much easier through the reinforced engineering plastic lid.

Due to the large 4 Inch Tri-Clover diameter, it is difficult to get higher pressures without leaking. Therefore we suggest using this up to 1.5 BAR (21psi)

15mm ID x 21.5mm OD x 3mm

What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds.   When compared with silicon and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.

Specifications:

(10 Pack) - 15mm ID x 21.5mm OD x 3mm

What is EPDM?
EPDM = Ethylene Propylene Rubber which has excellent chemical resistance including being compatible with ozone, oils, wide variety of alkaline and acid compounds, water, alcohol, ketone and beverages.

EPDM is also resistant to aging, weather and will not perish easily like other rubber compounds.   When compared with silicon and vinyl EPDM has better gas transmission rates, better wear resistance, is BPA free and is the number one choice for many long lasting food grade applications.

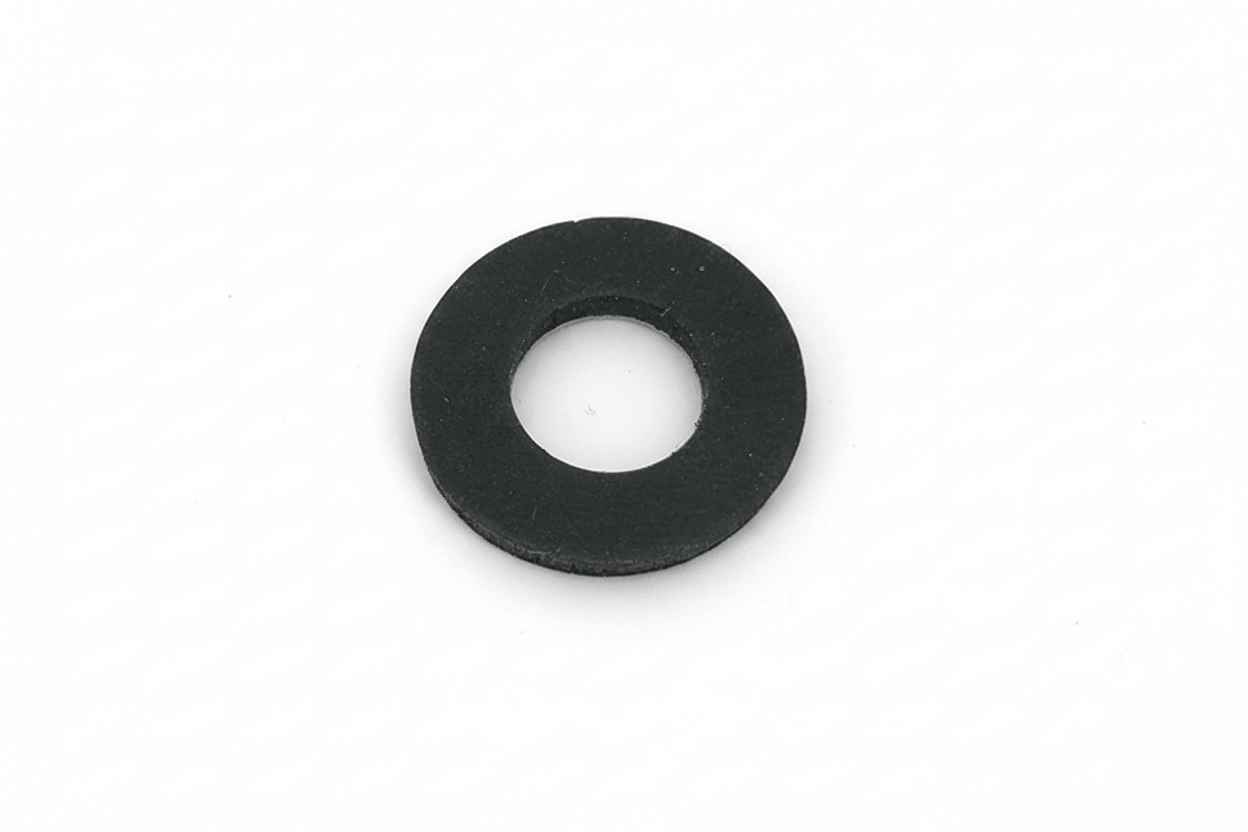

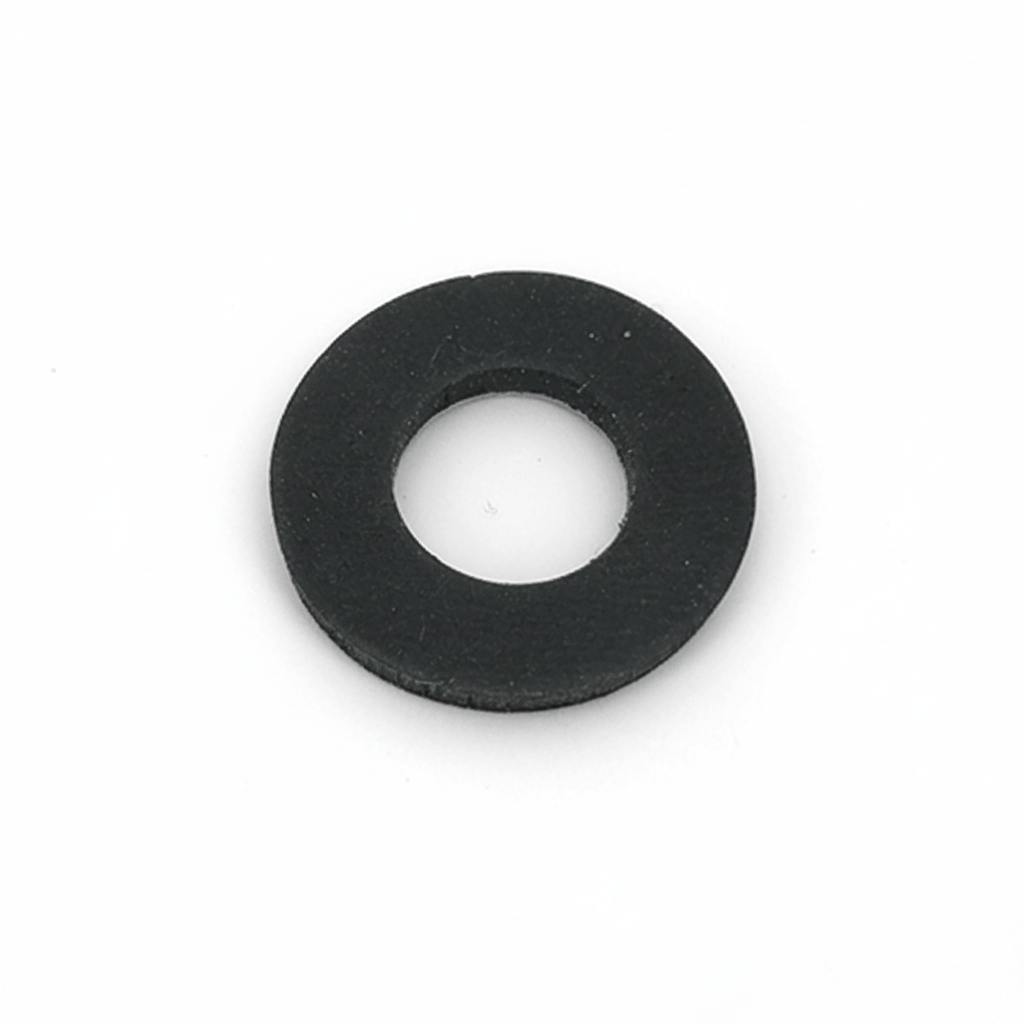

This is a EPDM 5/8 Washer which is suitable for Keg Couplers and Tap Shanks

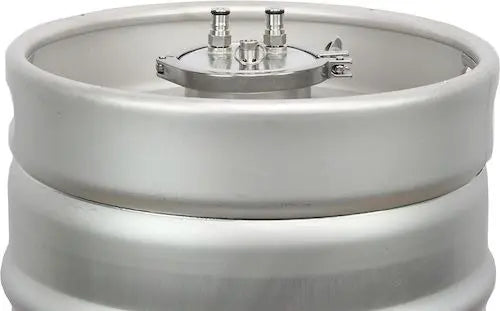

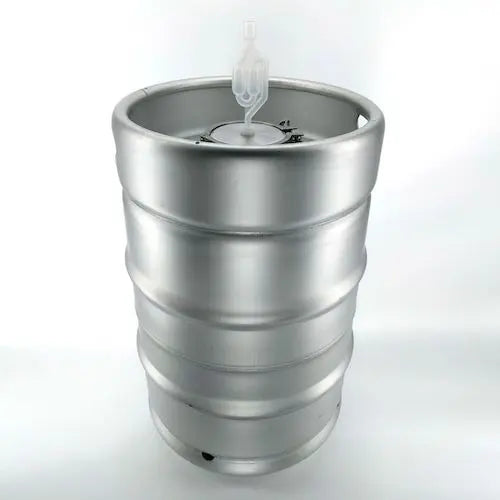

These 58L stainless steel vessels are designed in the same manner as a commercial beer keg, but with a large 10cm (4inch) tri-clover opening at the top that allows you to easily get inside the keg to clean it. This new 58L size is ideal for doing 50L batches with a little extra head space inside the Kegmenter.

This Kegmenter comes with an airlock and a flat plate, but it can also be used under pressure if desired. If you intend to use this under pressure, we recommend purchasing the lid with ball lock posts and a pressure relief valve.
The Kegmenter can hold 2.5bar, allowing you to carbonate and ferment in the same vessel. You can either carbonate naturally using our adjustable pressure relief valve (spunding valve) or force carbonate if you are using a CO2 gas cylinder.

Being able to hold pressure also allows you to push the beer directly from the fermenter through a filter or even dispense directly from the fermenter to a draught beer tap if desired.

The chimes on the Kegmenters have been specifically designed to be taller than standard chimes in order to provide clearance over the stainless posts on the Ball Lock Post Lid. This implies that the Kegmenters can be stacked. Because of the interlocking stacking chimes, the kegs can be safely stacked up to four high.
The Kegmenter can also be used in conjunction with the 2" to 4" tri-clover concentric reducer.

This means you can reduce the 4inch opening down to 2 inch opening so you can attach one of our Alcoengine Reflux or Alcoengine Pot still to the top.

Pressure Limitations
Maximum Working Pressure: 2.5 BAR
Test Pressure: 5 BAR
Wall Thickness (Body/Chimes): 1.8mm/2.1mm
