Fruit Crushers & Destemmers

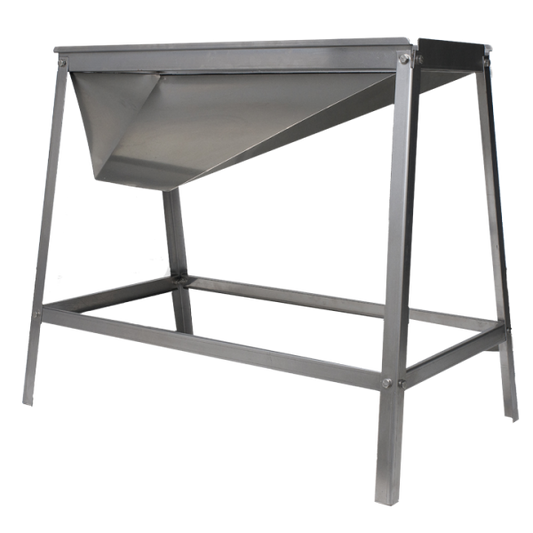

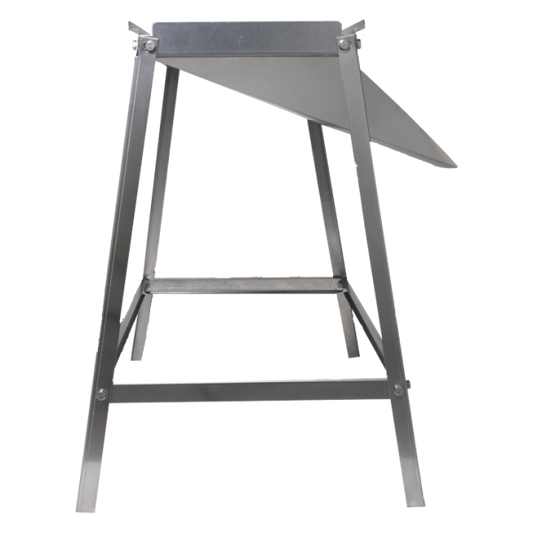

This stainless steel stand is designed to support crusher destemmers, destoners, and deshellers, enhancing their stability and ease of use. Equipped with a must chute, it facilitates smooth material flow during processing. Crafted by Grifo Italy, the Series 80 L stand combines durability with practical functionality for efficient operation.

Code: 124147

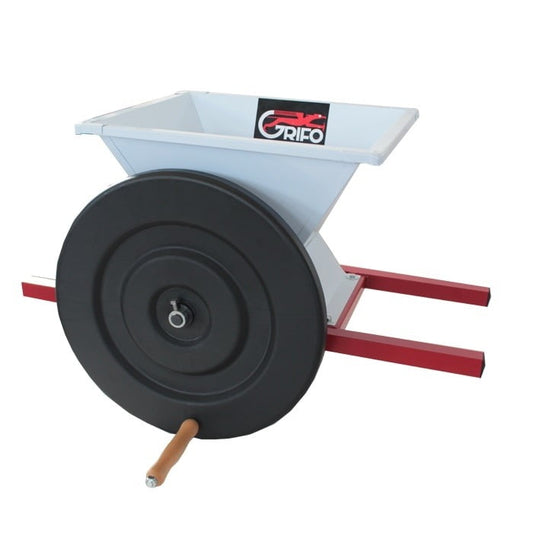

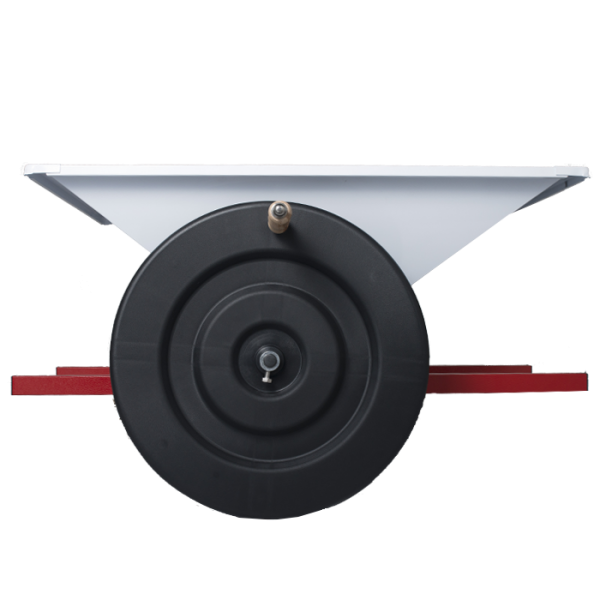

Small manual grape crusher.
Features painted baked enamel hopper with nylon rollers.

The manual fruit shredder does not need any electricity to operate. Fruits and berries can be crushed before pressing with the Fratelli Baesso B100 shredder. Two rollers with grate-shaped stainless steel blades are included in the shredder.

• cutting blades and funnel made of stainless steel
• rollers made of strong nylon
• capacity of the filling funnel : 15 l
• weight: 15 kg
• dimensions of the funnel: 36 x 42 cm

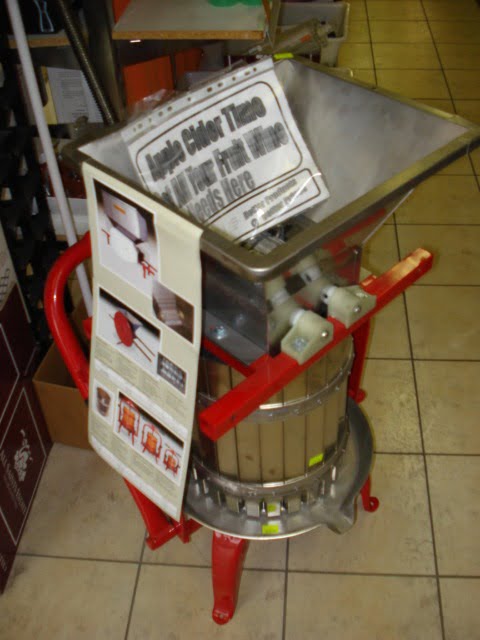

A wide flywheel on the side of the shredder rotates to power the manual fruit shredder. The large flywheel provides inertia, reducing the amount of power needed to operate the shredder. The apple shredder should be mounted on a stable support, such as between two chairs or tables, for smooth and convenient operation. Also open-top tank or bucket should be placed under the shredder for collecting crushed apples.

Working with this shredder needs two people. One is turning the flywheel to operate the shredder, while the other is putting fruit into the funnel. This method can shred up to 300 kilogrammes of apples per hour.
The handy apple shredder is ideal for small apple garden owners or others who want to make apple juice many times but in small batches.

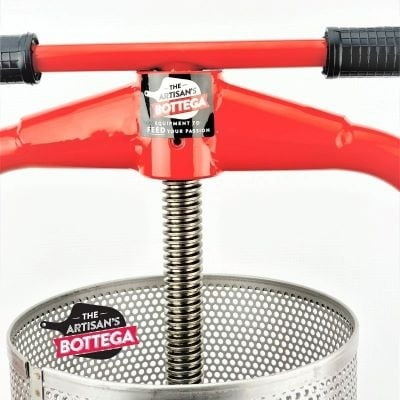

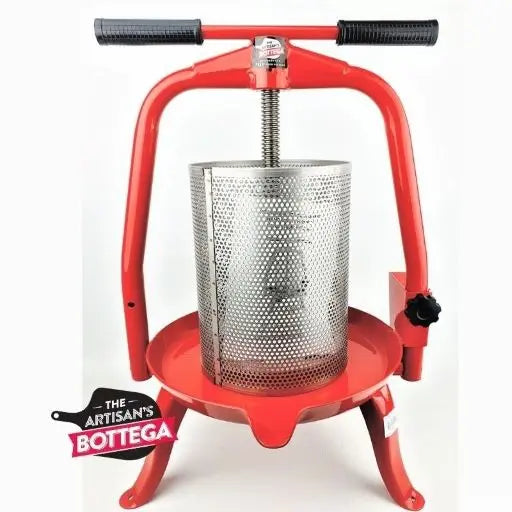

Baesso presses are traditional hand-operated cylindrical presses. Presses are produced by a company with centenary history; that means experience and skills handed down through many generations. This type of press with its long-lasting history is very popular among customers

This model features a stainless steel basket and an enamel coated frame. The principle of operation is very easy. It is needed to fill the press’s cage with crushed apples or pears. The pressing plate exerts pressure on the fruit mass and the juice leaks from the cage to the tray and from the tray to the collection vessel.

Presses are produced of high-quality materials: the cage, the pressing plate, and removable tray are constructed in stainless steel.

We offer you three different sizes of Baesso T bar presses. We hope you find suitable one!

The main advantages of our presses are:

• robust and easy-to-use
• inclinable frame for easy access
• one pressing with cleaning takes about 15 minutes
• high juice yield - up to 60 per cent
• easy-to-clean and compact
• No electricity is needed
• Safe and secure

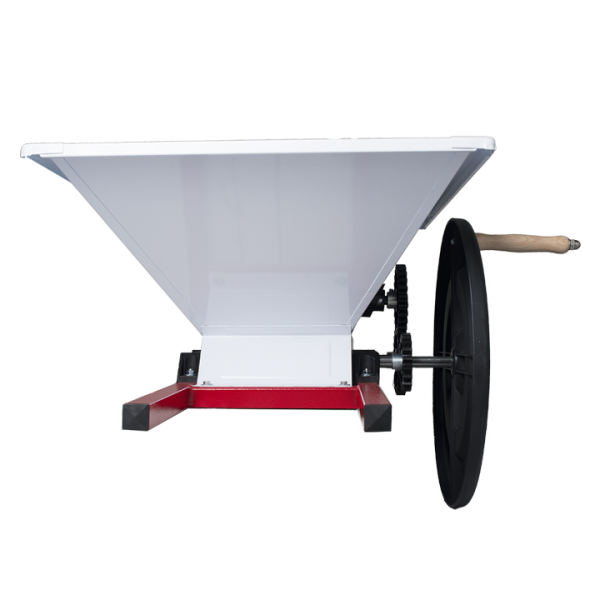

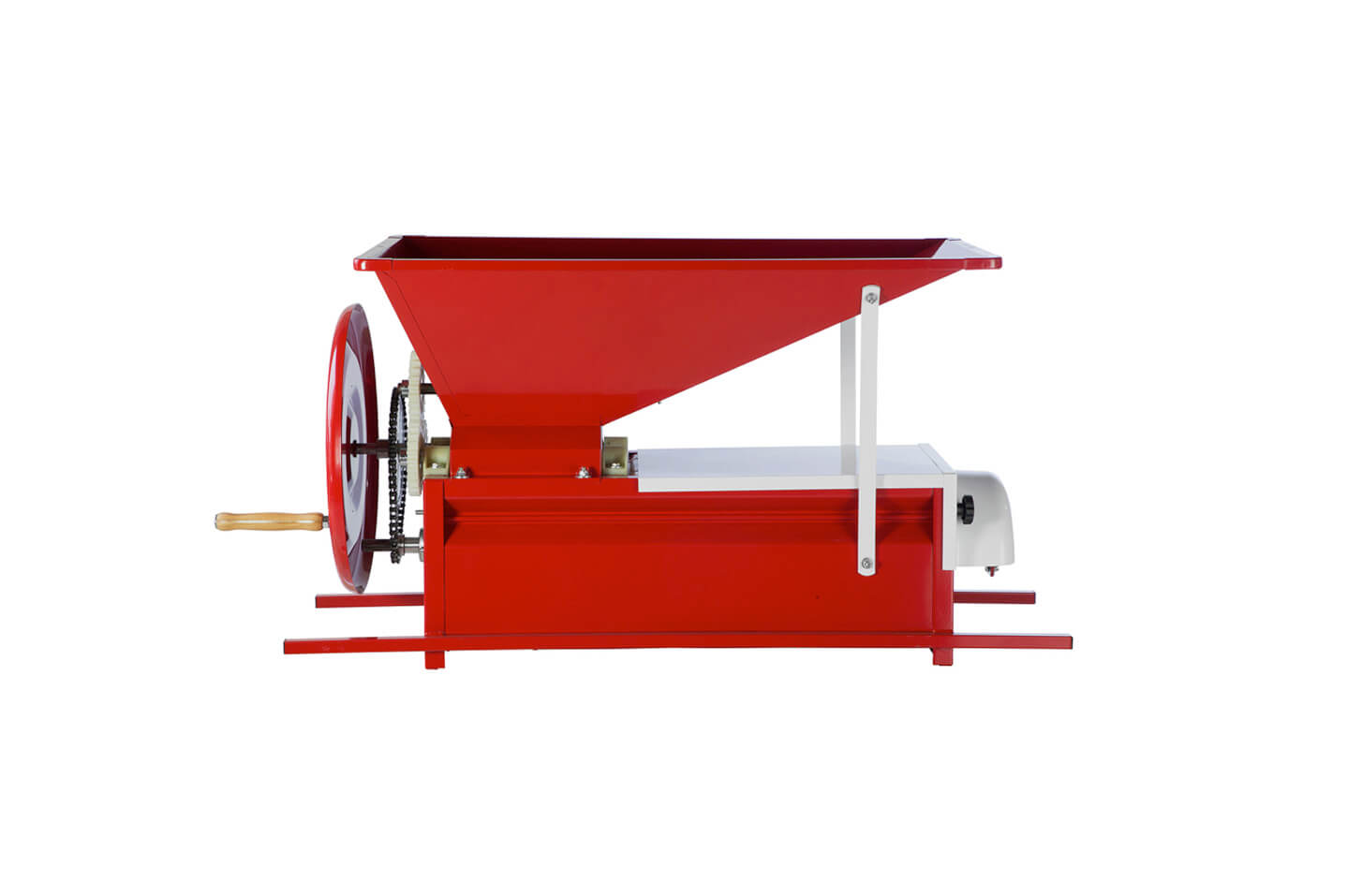

Product Overview:

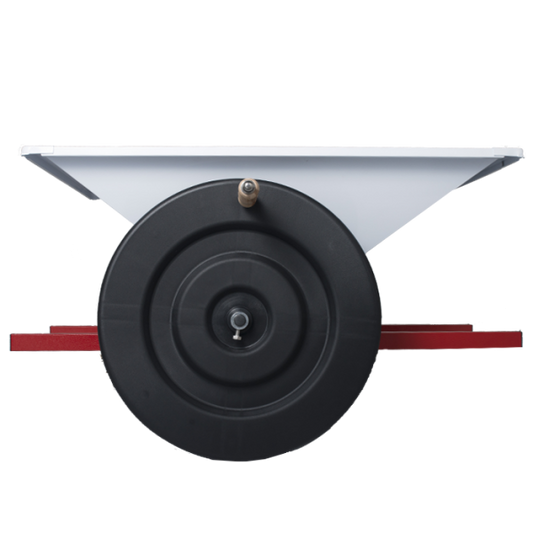

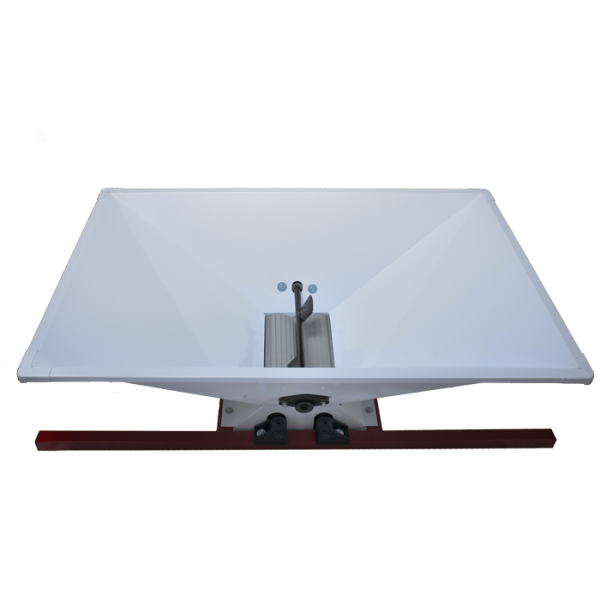

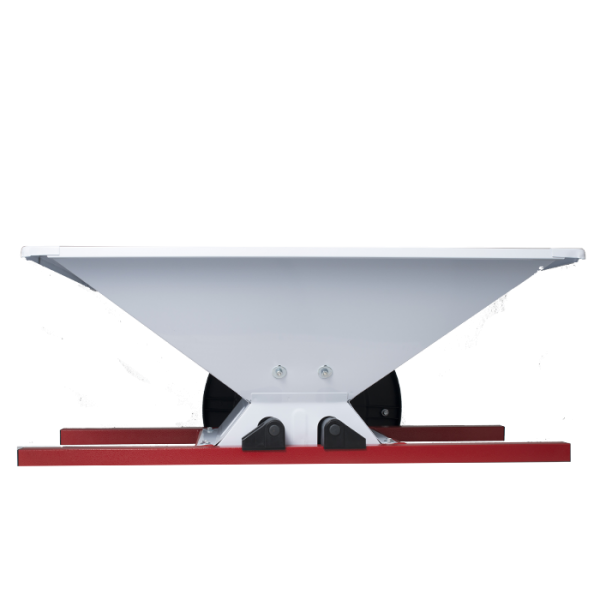

Designed for easy, efficient grape crushing, this crusher is made from high-quality materials and built for durability. With a medium hopper measuring 55 x 80 cm, it is made from high-quality materials and built for durability. The hand-wheel mechanism drives the rotation movement to the mixer, rollers, and gears, ensuring smooth, manual operation. The rollers are adjustable to a few millimetres, allowing you to customize your crushing process. The machine features a sturdy steel varnished hopper, support, and mixer, while the gears are made of durable nylon for long-lasting performance.

Please Note: The product's colour may vary slightly depending on the product patch delivered.

Specifications:

• Hopper Size: 55 x 80 cm
• Agitator: 3-gear nylon agitator
• Materials: Steel varnished hopper, support, and mixer
• Roller Adjustment: Specific supports allow the rollers to be adjusted to a few millimetres
• Operation: Manual, hand-wheel driven
• Durability: High-quality materials ensure strength and long-lasting performance

Features:

• Large Hopper: The medium-sized 55 x 80 cm hopper allows for large quantities of grapes to be processed efficiently
• 3-Gear Agitator: Nylon gears ensure smooth operation and durability
• Adjustable Rollers: Rollers can be adjusted to a few millimetres for precise grape crushing
• Sturdy Construction: Steel varnished components provide durability and resistance to wear
• Manual Operation: The hand-wheel mechanism makes this machine accessible and easy to use for manual grape crushing

Key Benefits:

• Adjustable Crushing: Easily adjust the rollers for customized grape-crushing results
• Durable and Reliable: Made from high-quality materials to ensure long-lasting performance
• Simple Manual Operation: Easy-to-use hand-wheel mechanism for smooth operation

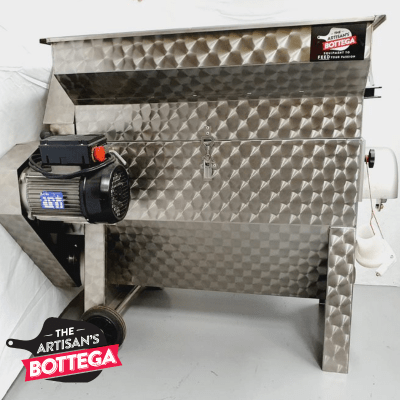

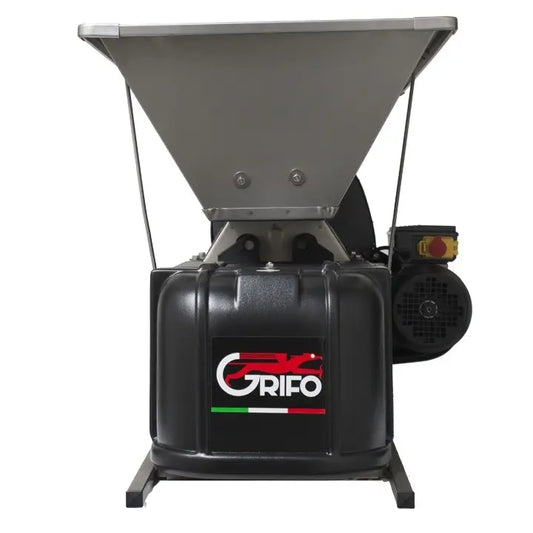

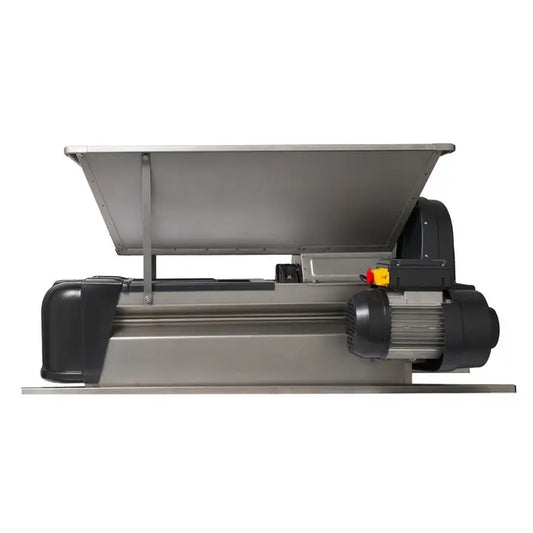

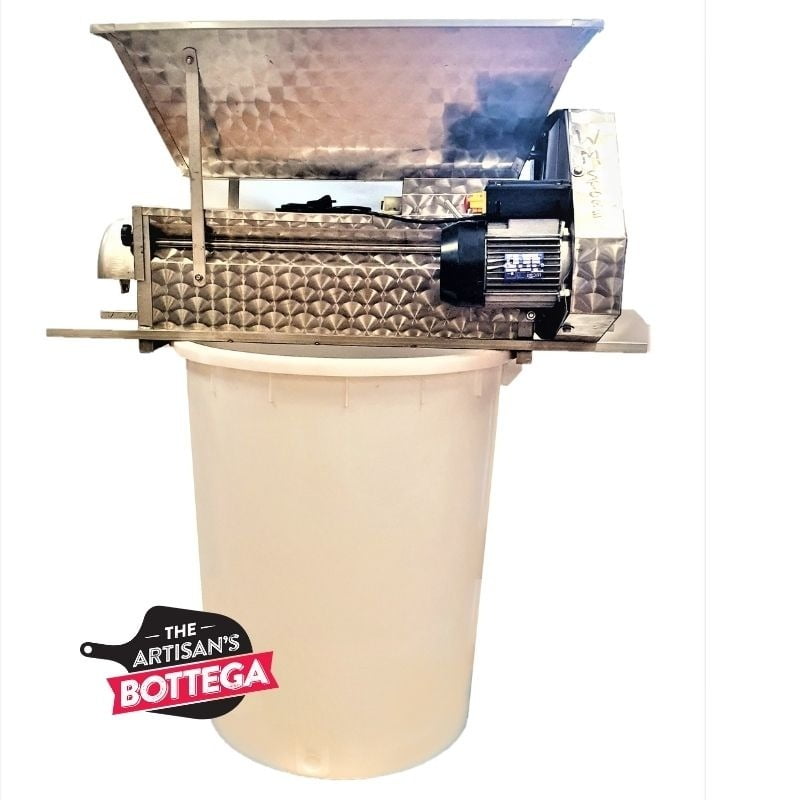

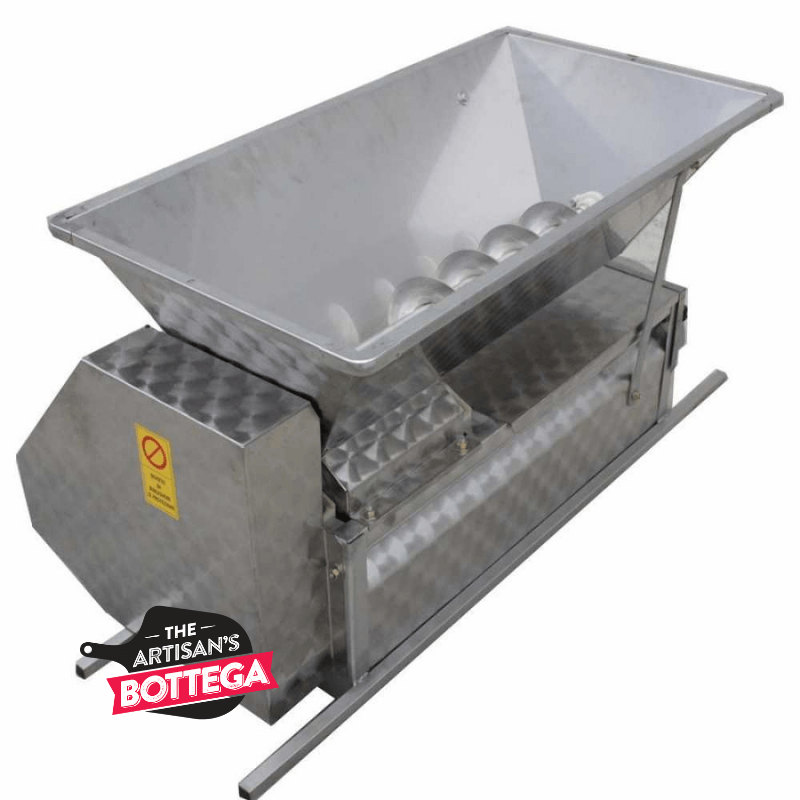

Crusher Destemmer Stainless steel Electric 1hp - 80kg Feeder Auger Hopper Nylon Rollers from Grifo with grape stalk remover.

Features

• Stainless steel hopper 900×500 mm
• Nylon rollers 220 mm
• Stainless-steel basket
• Electric motor 220 v hp 1
• Hourly production 1500 Kg

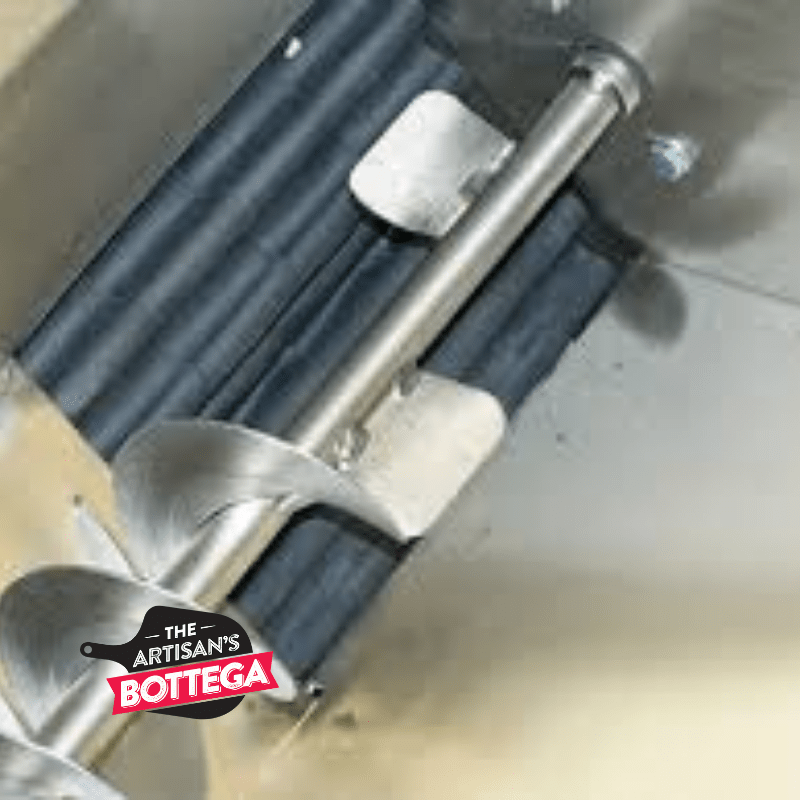

The DMCSI is composed of a hopper and a case, both those and all the screws are made of stainless-steel. Inside the hopper there’s a screw conveyor which continuously moves the grapes toward the rollers. The powerful engine mounted on the side generates a rotatory movement which is transferred to all the mechanisms: the rollers for the crushing, the screw conveyor and the destemming shaft, which works with the extractable stainless-steel grid to separate the grapes from the stems. The rollers and all the gears are made in nylon, material which guarantees reliability and sturdiness. Thanks to the special supports, the rollers are adjustable by a few millimeters.

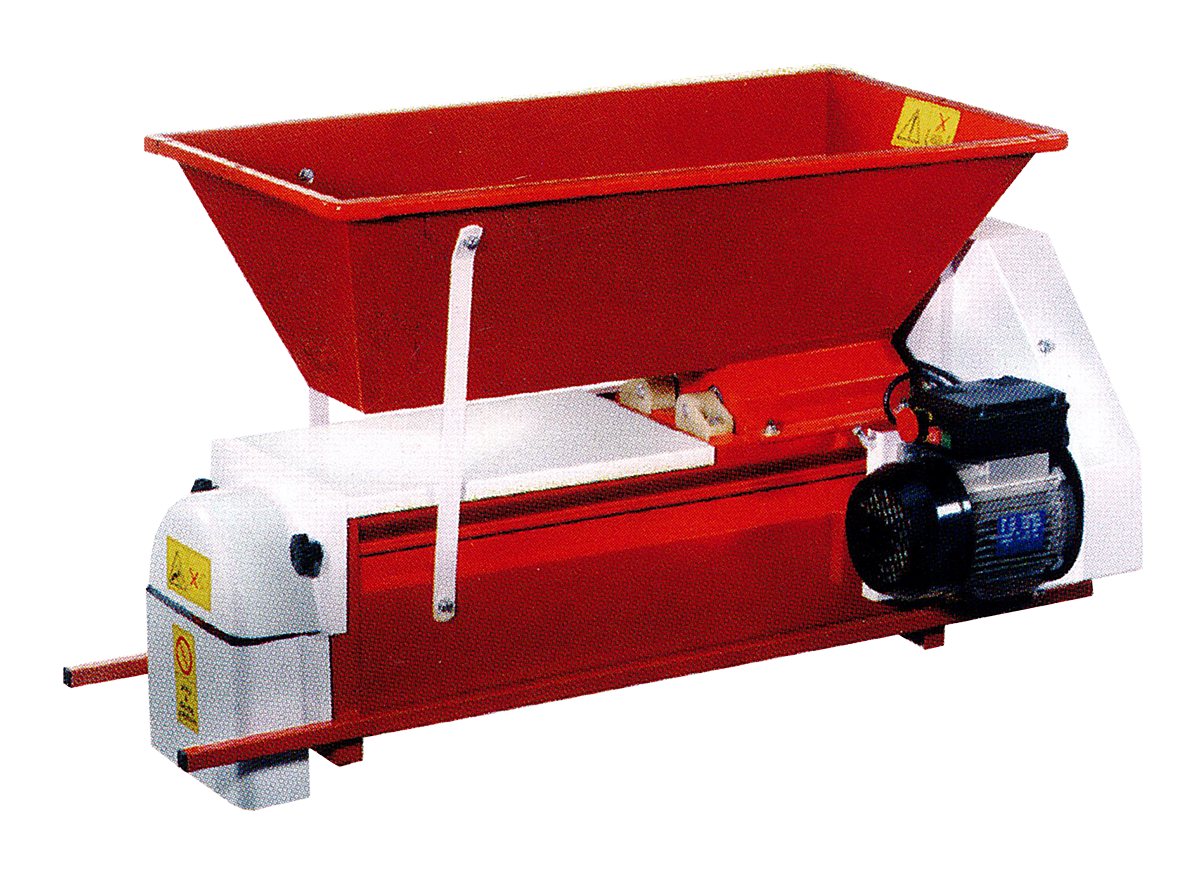

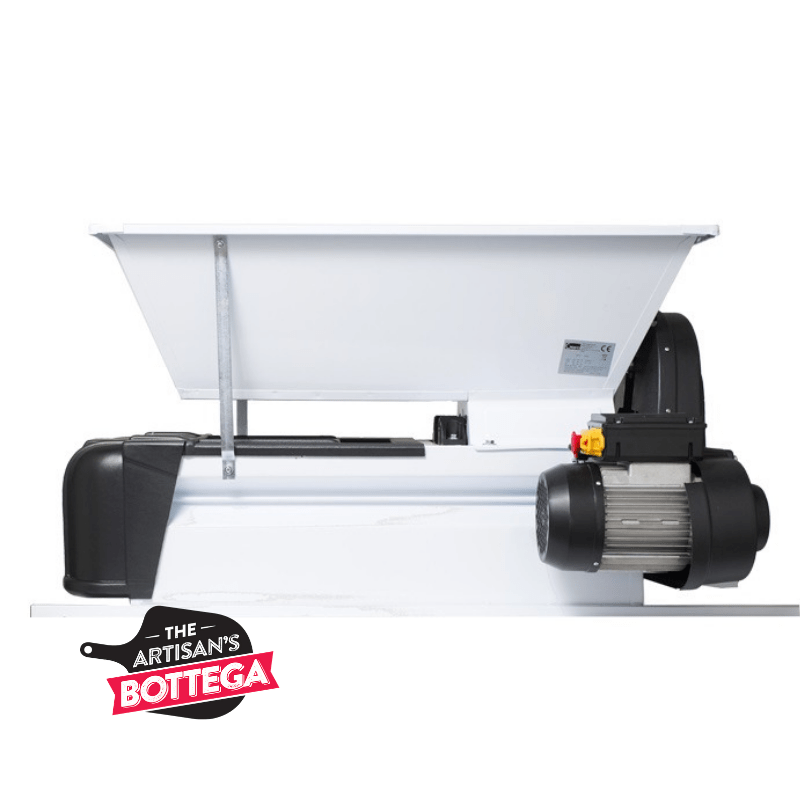

Italian Electric Crusher Destemmer with 80L baked enamel hopper and nylon rollers. Capable of processing up to 1000-1500kg per hour.
Work simple, turn on, and get the wine juice into the fermentation vat and stems straight to the bin!!!

This model does not include extra guard for Australia Region.

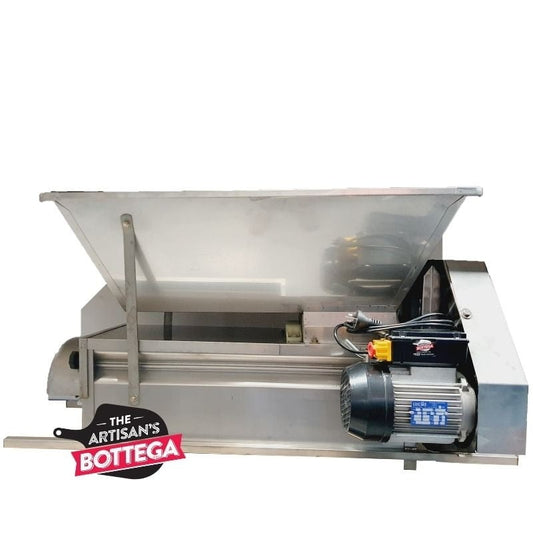

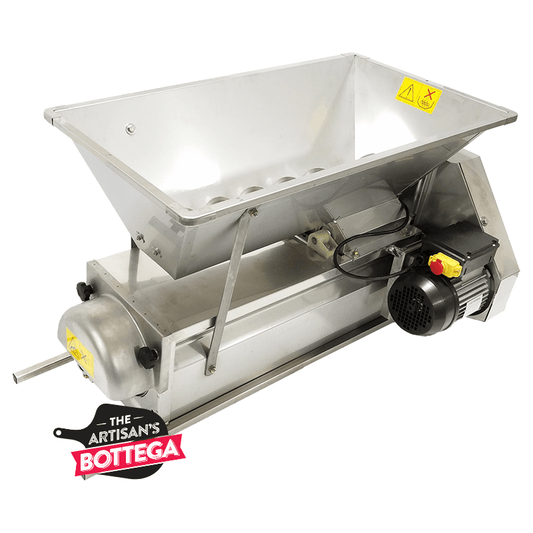

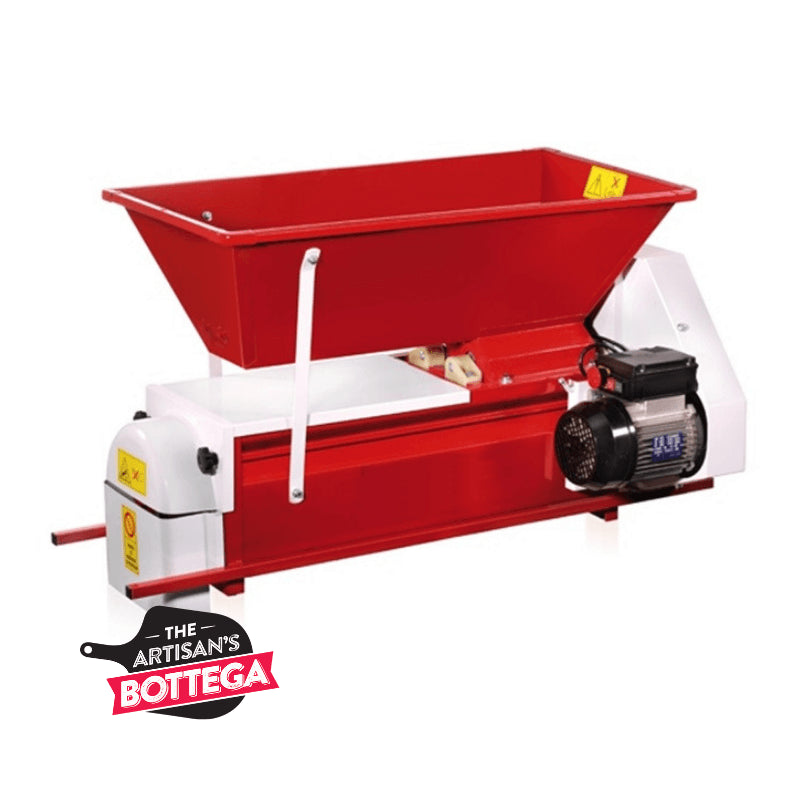

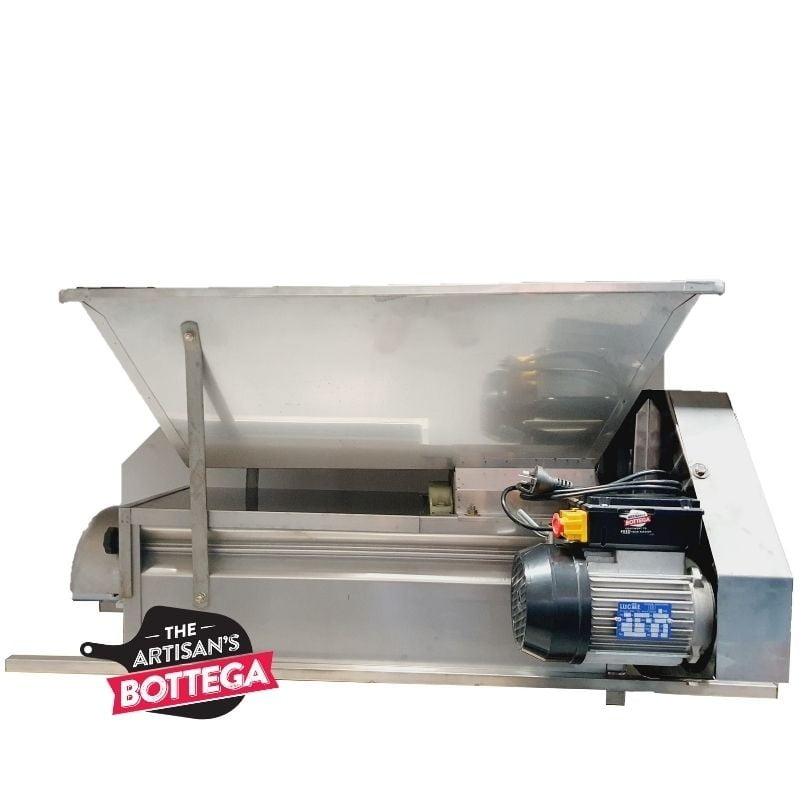

Crusher Destemmer  (Italy's best producer- Fratelli Baesso)

• 1200kg  per hour capacity unit
• 1.0Hp Italian single phase motor 240V /50Hz ( with easy belt tensioning plate)
• 80L capacity hopper with  powered screw auger feeder to rollers
• Available in Painted Baked Enamel ( or Full Stainless Steel body)
• Adjustable food-grade rollers available in Composite nylon plastic

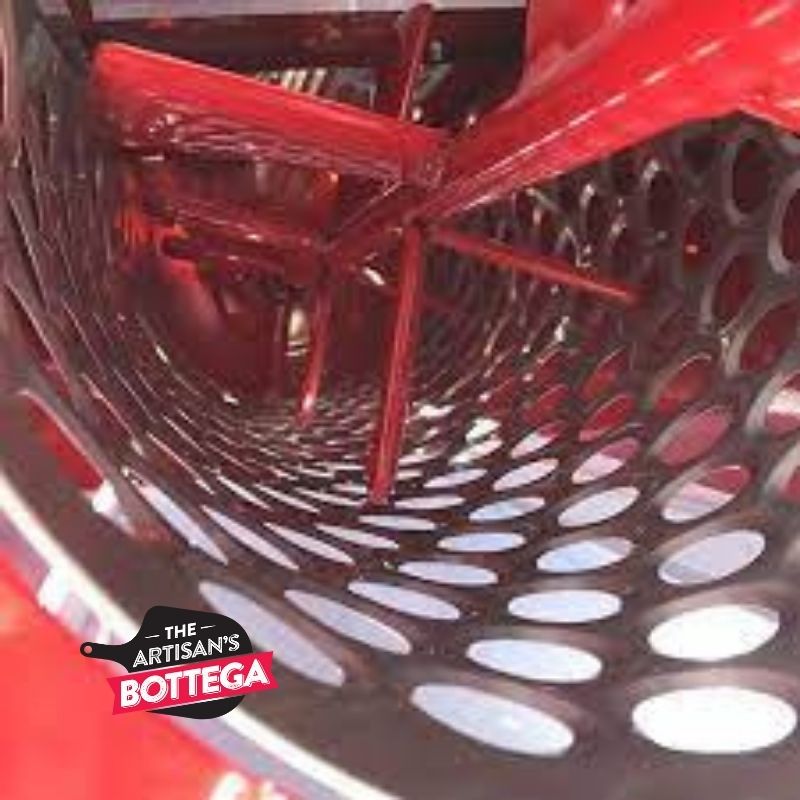

• Folded Stainless steel grate, for more strength and easier insertion along channels
• Composite nylon roller supports and bearings - (Durable with high heat tolerance)
• Ergonomic, well-designed, and solid construction, (52 Kg) with raised lifting handles to facilitate positioning and reduced movement over your grape fermenter.
• Metal grate cover and guards are easily removed for cleaning/servicing
• Optional: Extension hopper to meet Health and safety regulations from Auger feeder
• Optional: Grape funnel collection and Destemmer stand ( Painted or Stainless Steel)
• Tip 1: Purchase our clear food-grade grease for the prevention of rust and paint damage in the grate section.
• Tip 2: Sits well on top of either the 350 to 500L Vat fermenter

****************************************************

*This unit is currently at a clearance price, and it was shipped in excess to a Western Australian reseller near Perth. So the freight was covered. Additional freight required if in other states. purchase in cart as collect only, and we will manually quote you shipping to the nearest depot or home.

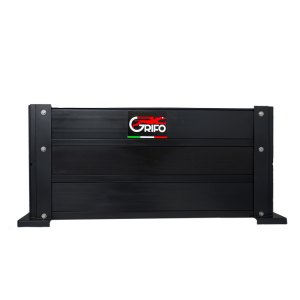

Increase the safety and functionality of your electric apple crusher with the Safety Hopper Extension from Beasso. Made with durable plastic, this extension kit is specifically designed to fit the PIPMO crusher, adding an extra layer of protection and convenience. Easily attach and enjoy peace of mind while crushing apples.

W40 x L45 x H35cm

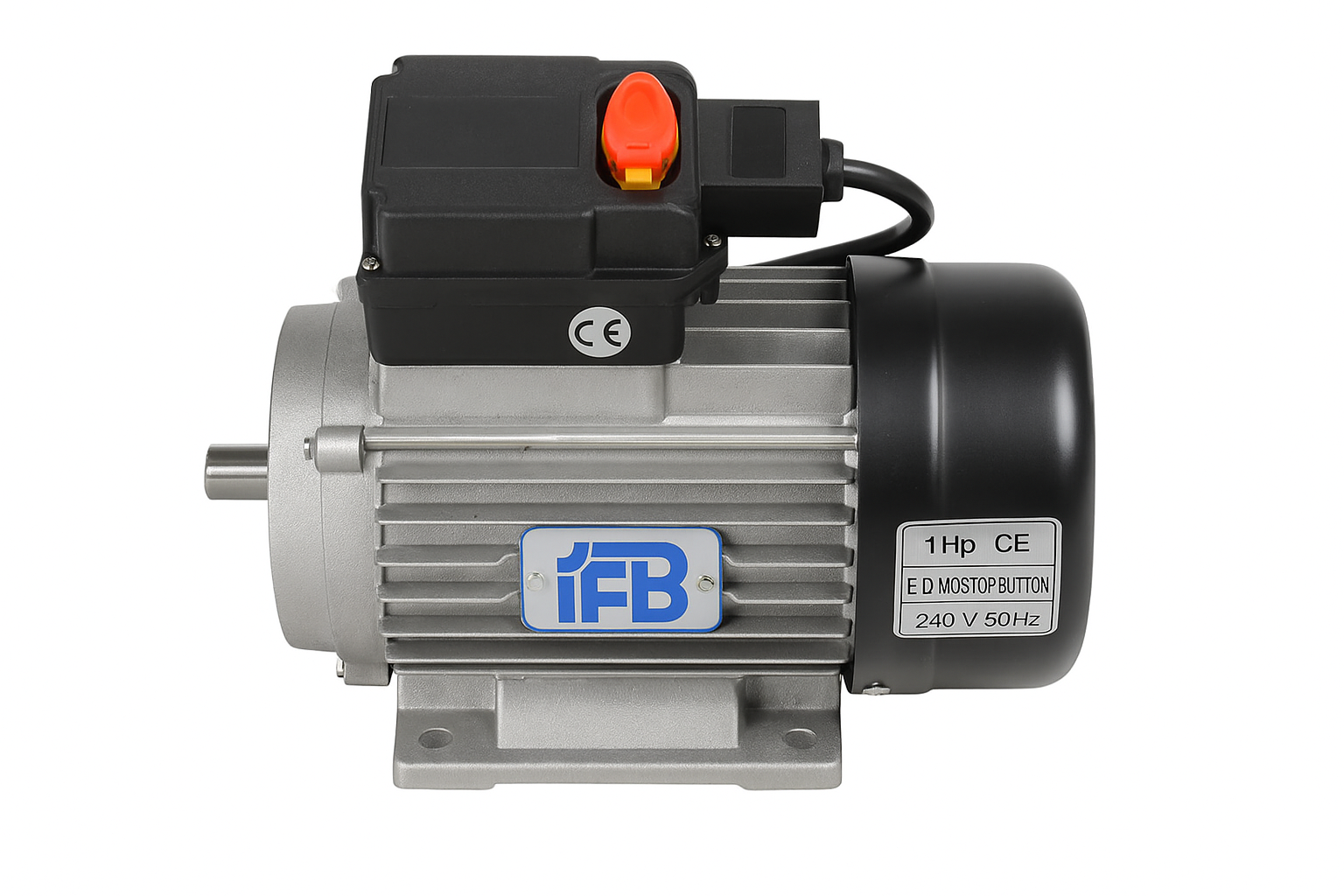

This 1Hp CE motor is designed specifically as a spare for the Baesso Fratelliaa Destemmer. Operating at 240 V and 50Hz, it features an integrated emergency stop button for enhanced safety. Its reliable performance ensures seamless motor replacement and uninterrupted operation of your destemming equipment.

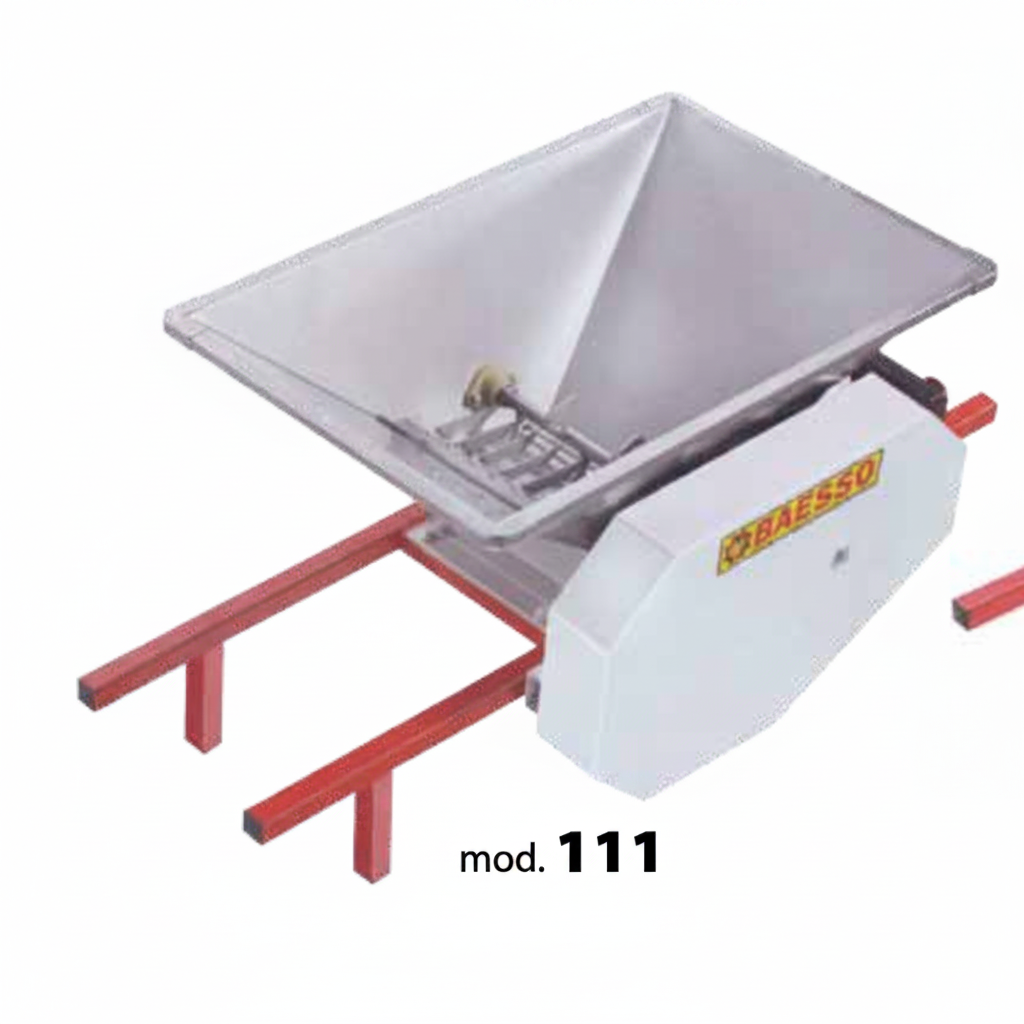

Hand-operated or electric motor drive for flexible operation. Robust painted steel frame built for durability and stability. Stainless steel hopper resists corrosion and maintains hygiene standards. Pressed aluminium rollers with stainless steel agitator and cutting blades for efficient crushing and processing.

0.75hp motor delivers reliable performance for consistent results. Includes extension hopper for increased capacity and workflow efficiency. Compact footprint at 50 x 75 x 35cm fits seamlessly into artisanal production spaces.

Engineered by Fratelli Baesso, a trusted name in quality food processing equipment. Ideal for crushing grapes, berries, and other produce in winemaking, cider production, and culinary applications.

•  50 x 75 x 35cm
• 0.75 HP Motor
• Production per hour: 500 - 800kgs
• Weight: 25kgs

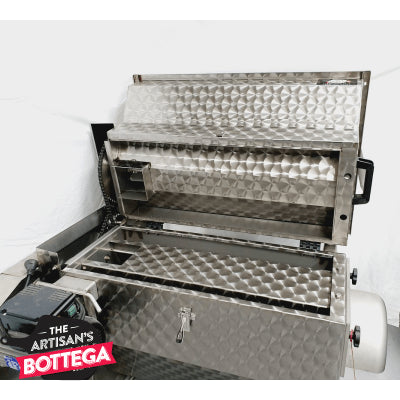

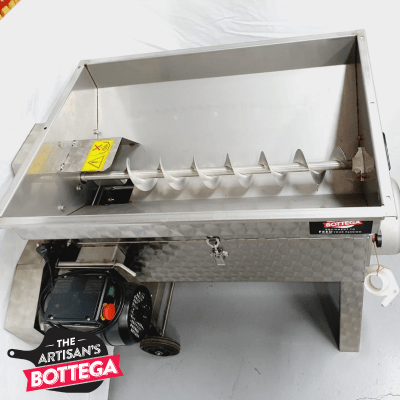

For the serious home winemaker or a very small winery, this machine represents an amazing value. It is gentle, easy to load, and pumps the grapes into your awaiting fermenter, eliminating the need for a separate must pump.

Here is how it works. You put fruit in the top bin and the screw feed moves the fruit to the left where it drops down into the destemming chamber. The fruit is destemmed and grapes drop down through the grate to the next level. Stems are ejected out the end of the destemming chamber and onto a tarp on the ground. After the fruit drops through the destemming chamber it falls into a bin at the bottom of the machine that has a screw feed. The screw feed pushes the grapes to the right where they are pushed into a circular chamber. In the circular chamber, a paddle wheel, pushes grapes back out the exit tube you attach, and into the awaiting fermenters.

We recommend this machine for small wineries or larger home producers who do not wish to make the considerable jump to truly commercial quality equipment. You can make very, very good wine with this machine and we often tell small winery owners that the money saved can be used more effectively in other ways to make great wine.

Summary of Features:

1) Stainless Body, Bin, Agitator, and Screw Feed
2) Removable stainless basket for easy cleaning
3) A Screw Feed for continual, faster, hands-free operation
4) Rubber tipped destemming bar for softer processing
5) Output of 1.5 - 2 ton /per hour
6) Paddlewheel style Must pump built-in
7) A powerful Single Phase 220V 2 HP motor
8) High-quality units made in Italy
9) Two casters allow for easy wheel-barrow type movement
10) Emergency stop button

Approx. dimensions hiehg 92, wide 62 and lenght 108
