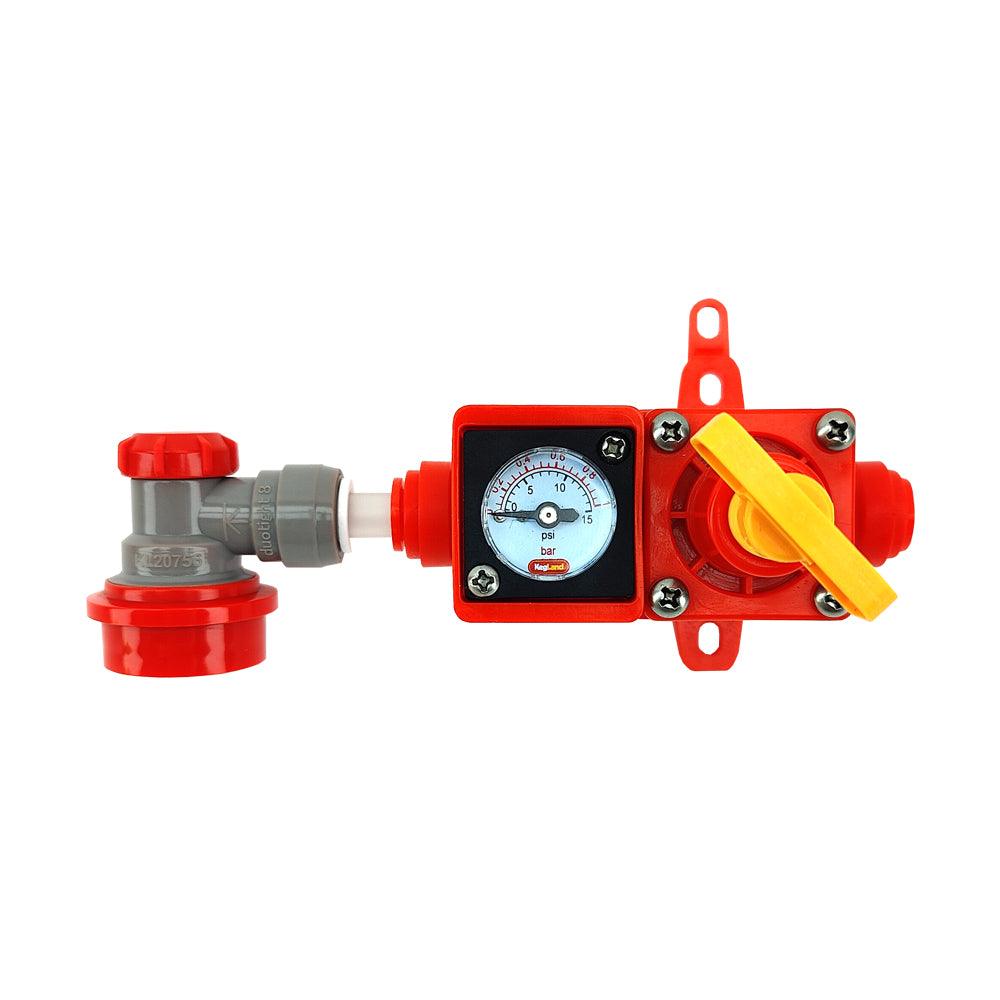

Integrated Gauge BlowTie Kit (0-15psi)

Take control of pressure fermentation with the compact Integrated Gauge BlowTie Spunding Valve Kit. Designed to regulate the pressure retained inside a fermenter, keg or other compatible pressure vessel, this easy-to-use kit combines an adjustable diaphragm valve, integrated pressure gauge and gas ball-lock disconnect.

The top-mounted adjustment knob makes increasing or decreasing the release pressure simple, while the integrated 0–15 PSI gauge provides convenient pressure monitoring. Its compact design is ideal for pressure fermentation, natural carbonation and controlled pressure release.

Key Features

Adjustable Pressure Control
The diaphragm spunding valve automatically releases excess gas to help maintain your selected pressure.

Integrated 0–15 PSI Gauge
Monitor vessel pressure directly from the valve without requiring a separate gauge assembly.

Gas Ball-Lock Connection
Includes a grey-and-red duotight gas ball-lock disconnect for fast connection to compatible kegs and pressure fermenters.

Compact Gen 2 Design
Combines pressure adjustment and monitoring in a space-saving unit suited to compact brewing setups.

Easy Adjustment
Turn the top adjustment knob clockwise to increase the retained pressure or anticlockwise to reduce it.

Serviceable Construction
The BlowTie valve can be disassembled for cleaning using a Phillips-head screwdriver.

Food-Grade Materials
Manufactured from food-grade acetal with stainless-steel screws for dependable brewing use.

Ideal For

• Pressure fermentation
• Maintaining fermenter pressure
• Natural carbonation
• Keg-to-keg pressure transfers
• Controlled release of excess fermentation gas
• Compatible FermZilla and keg-based brewing systems

Kit Includes

• 1 × BlowTie Gen 2 Spunding Valve with integrated 0–15 PSI gauge
• 1 × duotight 8mm (5/16-inch) gas ball-lock disconnect
• 1 × rigid 8mm plastic joiner

Specifications

• Pressure range: 0–15 PSI
• Connections: 8mm (5/16-inch) push-fit connections
• Compatible tubing: 8mm OD EVABarrier tubing with 4mm or 5mm internal diameter
• Valve material: Food-grade acetal
• Screws: Stainless steel
• Product code: KB03529

Basic Setup

1. Connect the supplied gas ball-lock disconnect to the BlowTie valve using the rigid joiner.
2. Attach the disconnect to the gas post of a compatible pressure vessel.
3. Turn the adjustment knob clockwise for higher retained pressure or anticlockwise for lower pressure.
4. Monitor the integrated gauge and adjust gradually until the desired pressure is reached.

Always stay within the pressure rating of your fermenter, keg and connected equipment. Follow the manufacturer’s operating and safety instructions.
