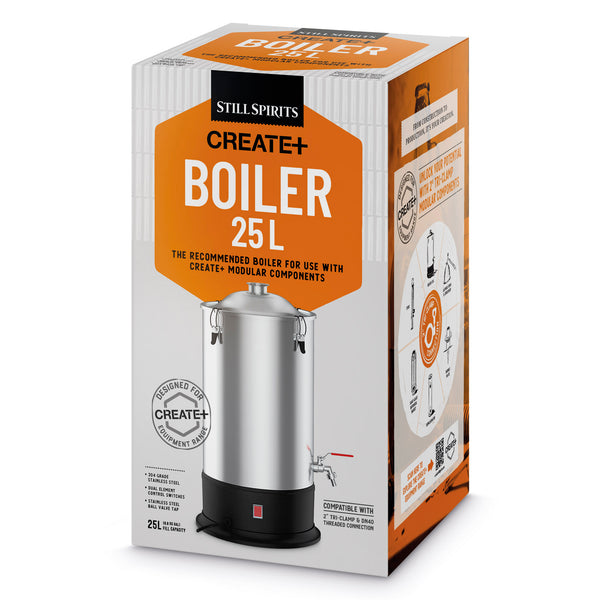

Still Spirits Create+ SS Boiler 25L

SKU: 9421037103624

$329.00 AUD

Size: 25 Lt
  • 25 Lt
In stock
Ordering for Christmas? Check your delivery cut-off. View order cut-off dates

Standard Parcels

FNQ (Far North Queensland), NT, TAS and WA
Anywhere in Australia excluding FNQ, NT, TAS and WA

Standard Pallets

FNQ (Far North Queensland), NT, TAS and WA
Anywhere in Australia excluding FNQ, NT, TAS and WA

These are order cut-off dates for our standard services, not guaranteed arrival dates. They do not apply to Express services.

Pre-orders: these cut-off dates apply to in-stock items. They do not confirm that a pre-order will be available or arrive before Christmas.

Pre-order — dispatch timing varies. Contact us to confirm the expected timing before ordering.

Estimated delivery between November 19 and November 22.

!

Shipping Information

Still Spirits Create+ SS Boiler 25L

$329.00 AUD

$329.00 AUD

Options
Size: 25 Lt
  • 25 Lt

Product description

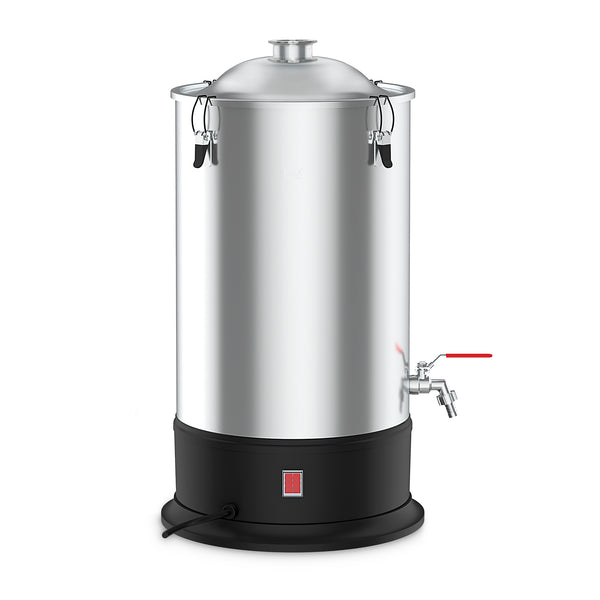

The Create+ Boiler 25 L is the recommended boiler base for use with the Create+ T500 Column & Condenser and the Create+ Alembic Copper Dome & Condenser. With a maximum capacity of 25 litres, the Boiler 25 L is designed for distillers seeking precise control and versatile functionality.

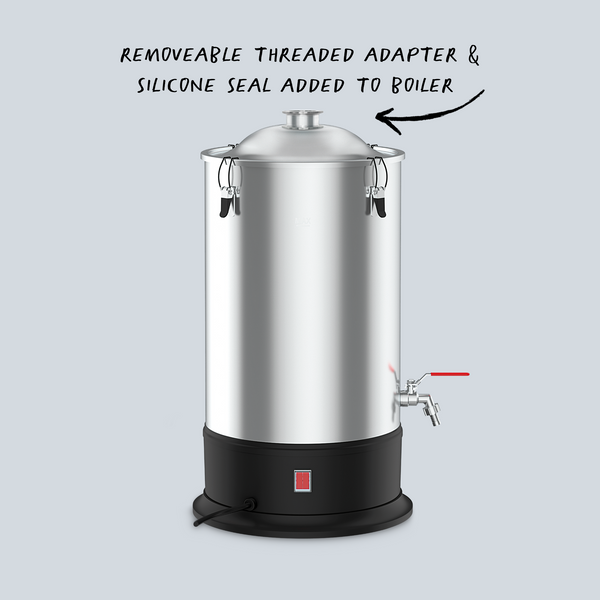

It features dual element control switches to provide more control during distillation. The Boiler 25 L comes complete with a 2" tri-clamp to DN40 threaded adapter, allowing for connection to 2" tri-clamp accessories, so your customers can experiment with different setups and attachments.

Key Features:

Dual element control switches provide more control during distillation - when both switches are in the ON position, the element will be supplied full power of 2200W (1600 if using a US/CA unit). When one switch is in the OFF position, it will only consume 1100W (or 1100W/500W if using a US/CA unit) of power.

  • Boil dry reset
  • Thermal cut out fuse
  • Waste discharge tap with a stainless-steel ball valve
  • Boiler lid with 48 mm opening
  • 25 L Boiler capacity
  • Connects to 2" tri-clamp distilling accessories
  • 304 grade sainless steel construction
  • High temperature resistent food grade silicone

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

What's Included:

  • Create+ Boiler 25 L
  • Create+ Boiler Lid
  • 2" Tri-clamp to DN40 Threaded Adapter (includes: Silicon gasket and DN40 Nut)
  • Instructions

Specifications:

Boiler:

  • Capacity: 25 L
  • Dimenions: H 64 cm x W 36 cm x D 37 cm
  • Weight: 5.42 kg
  • Power: 2000W (1600W for US/CA Units)
  • Warranty: 3 years
  • Create+ Threaded Adapter Set
  • Dimensions: 80mm x 80mm x 65mm
  • Weight: ~400g Approx.

NOTE: The Threaded Adapter is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:

A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.

A total column & condenser weight up to 11 kg (24 lbs), including uop to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.

The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
