This Italian pump is a classic self priming lateral liquid ring pump with the starry impeller. It is particularly made for the transfer of liquids such as wine, must, salty and soft water, milk, oil, and soil, whose viscosity is not over 30 degrees CENTISTOKES or over 4 degrees ENGLER.

To choose from the size options keep in mind that those are in regard to the hose tail outlets.

• Pump Rover BE-M 10 Brass Impeller pumps 7Lt /min 10mm In/Outlet 0.4hp
• Pump Rover BE-M 14 Brass Impeller. Flow rate 12.5Lt /min 14mm In/Outlet 0.5hp

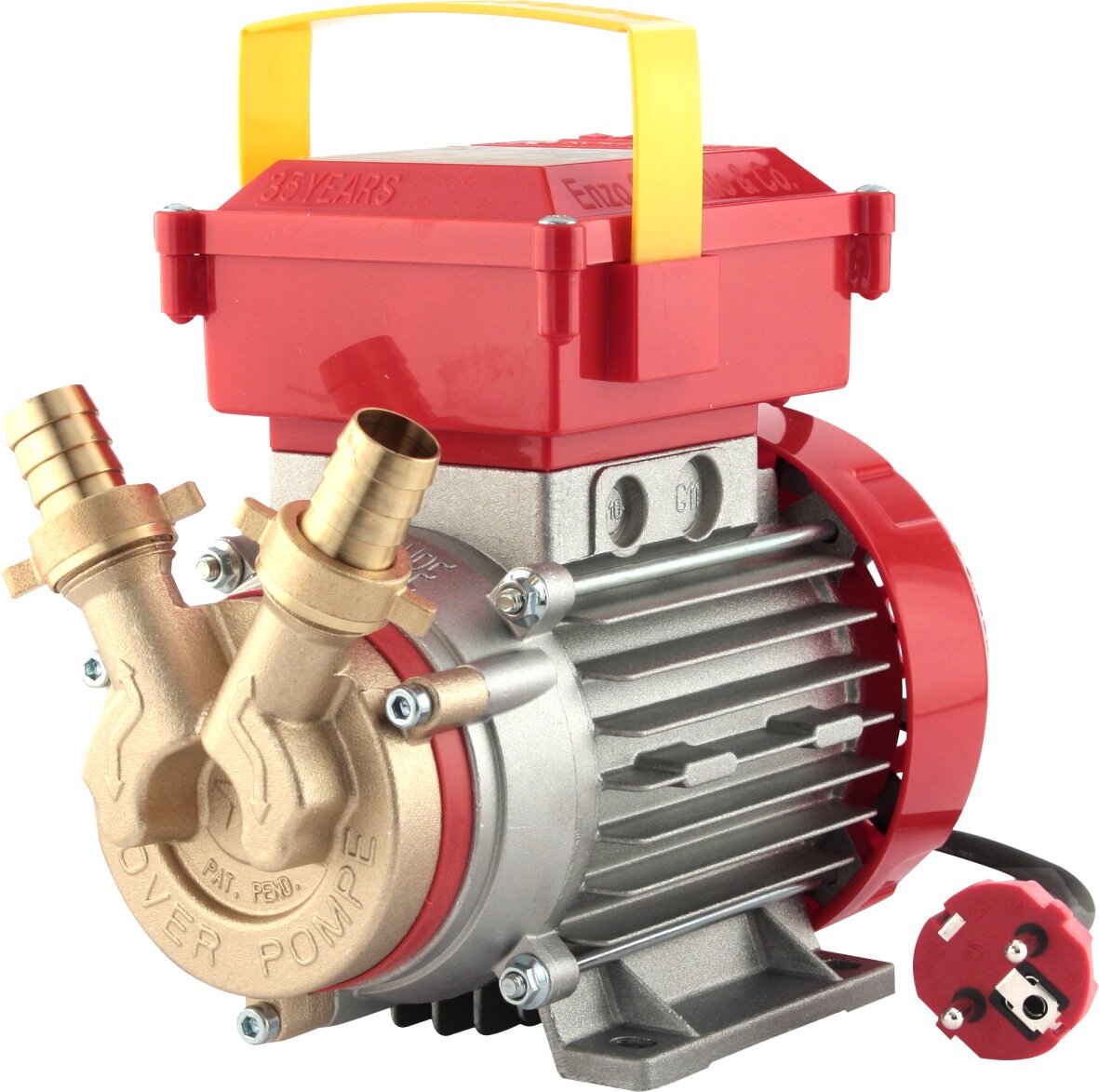

• Pump Rover BE-M 20 Brass Impeller. Flow rate 28Lt/min 14/19mm In/Out 0.5hp 1 Phase
• Pump Rover BE-M 20 Brass Impeller with Bypass. Flow rate 28Lt/min 19mm In/Outlet 0.5hp 1 Ph
• Pump Rover BE-M 25 Brass Impeller. Flow rate 45Lt/min 25mm In/Out 0.6 hp 1 Phase 1450 rpm
• Pump Rover BE-M 30 Brass Impeller with Bypass. Flow rate 80Lt/min 32mm In/Outlet 1.0hp 1 P

This particular type of hydraulics provides the pump with an extraordinary self priming capacity, also in absence of a continuous flowing of the liquids in suction (presence of air or other gases).

The fluids to be conveyed are to be neutral and clean or contain in suspension only a small percentage of solids (0.2-0.5% max). They are to have a hardness and granulation which prevent the damage of the inside pump surface. Yet a narrow mesh filter can be mounted on the suction piping. At best use by keeping the pump below the vessel.

ByPass feature provides pressure and flow rate reduction.

Technical Specifications
