Kegs With Ball Lock - Cornelius

The beauty about this device is that it takes a 1/2inch square drive meaning you can quickly insert and remove spears with a ratchet gun/impact driver.  This is the fastest way to insert and remove spears for kegs and great for breweries that want to go into the keg and check them.

These are primarily designed to be used with the A-Type Spear kegs which do not have a tamper locking circlip.

A-type keg opening tool suitable for Lion, Little Creatures Tooheys, Coopers, XXXX type kegs and many more if they do not have a locking circlip.  You will still have to remove this locking device if that is the type of keg you are using.

This couples with the a-type spears that we sell and the a-type spears that have a hole that the tool engages with (see attached photos)

For use with MKII, MKIII & MKIV Regulators.
Can be used with CO2 & Nitrogen Mixed gas Australian Standard Gas Bottles.
Nylon Regulator Washer and Filter not included.

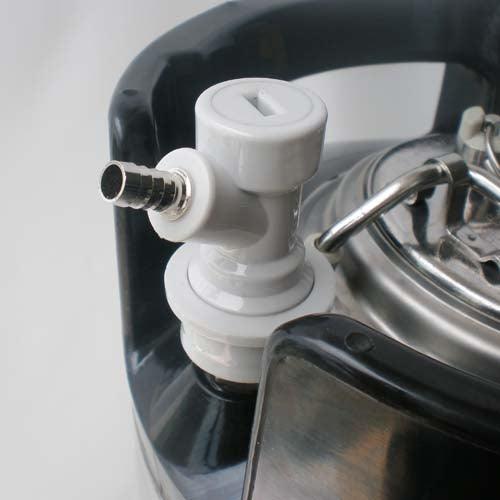

A ball lock gas disconnect with a 5mm barb for Cornelius style kegs, listed under Keg King. It pairs with a liquid disconnect to get a keg pouring.

The title spells it Conelius, one of several spellings floating around the trade. Ball lock and pin lock posts are not interchangeable, so confirm which your keg uses before you order.

A clear plastic floating dip tube measuring 25 x 40mm, with a 5 to 6mm barb, listed under Keg King. The float keeps the pick up point near the top of the liquid rather than down in the sediment.

Check the barb size against your own tubing, and that it will clear the inside of your keg, before you order.

A ball lock liquid disconnect with a 5mm barb, for Cornelius style kegs. It goes onto the liquid post. Listed under Keg King.

The title spells it Connelius, which is a typo for Cornelius. Ball lock and pin lock posts do not interchange, so check which type your keg actually uses before ordering a pair.

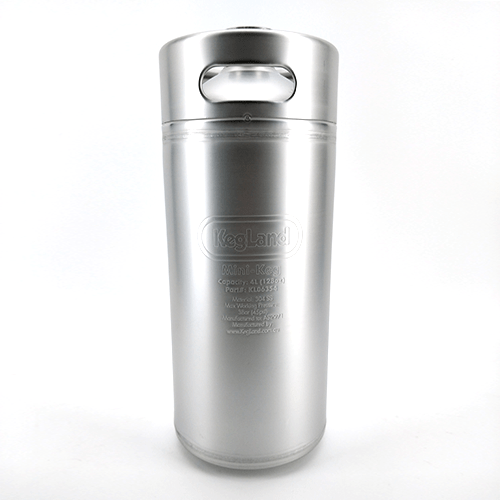

This small mini keg is commonly used as a growler. Small enough to drink directly from the keg or pour directly from the keg into a glass. This mini keg system is ideal for use as a portable keg at parties, BBQs, or simply enjoying a few beers in the sun. The 4L size is equivalent to 12 330ml beer bottles.

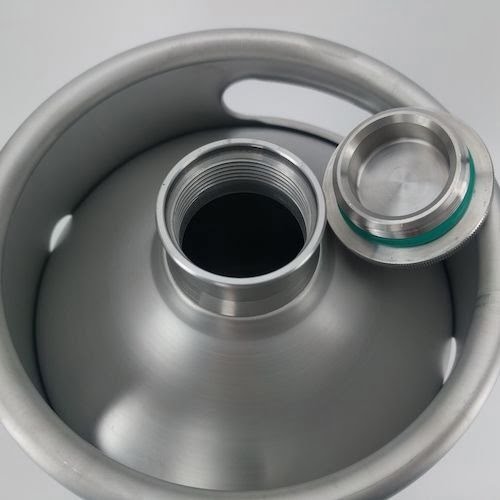

Small Stainless Steel Mini Beer Kegs are designed specifically for home brewing/growler dispensing. They are best suited for small batches and people who want to fit them into standard domestic fridges.
You can naturally carbonate your beer with priming sugars, or you can force carbonate it and serve it with the ball lock lid.

Because these kegs use a flexible silicone dip tube/spear, they can be dispensed on their side or upright, so no matter what orientation is most convenient in your fridge, you can stand the keg up or lie the keg down and the dip tube will always sink and draw liquid from the bottom (as it is heavier than beer).

Unlike many other mini kegs on the market, these mini kegs use gold standard acid bath electrolysis to pacify the stainless steel, making them more rust resistant than any other mini keg on the market. These mini kegs are the ONLY mini kegs that use a unique technique to weld the kegs from the inside out. This means that we get a better welding finish that is more sanitary than any other option.

So, if you've been looking for the highest quality mini kegs money can buy, this is what you've been looking for!
The Mini Kegs also come with a neoprene jacket, compact tapping systems, and other accessories that you might find useful.

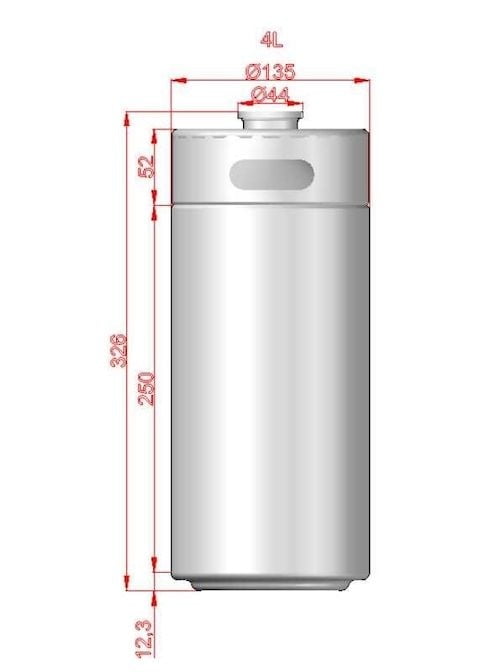

Dimensions

• 135mm x 326mm
• Add on 115mm in length if using a tapping head with a black liquid disconnect with a Duotight or 140mm if using a flow control disconnect.

A new 50 litre keg fitted with a CO2 type A spear. Fifty litres is commercial size, and a type A spear needs the matching coupler, so check what coupler you are running before ordering.

New rather than reconditioned, which matters if you are putting it into a venue. Have a chat with us about couplers, gas and line if you are setting up from scratch.

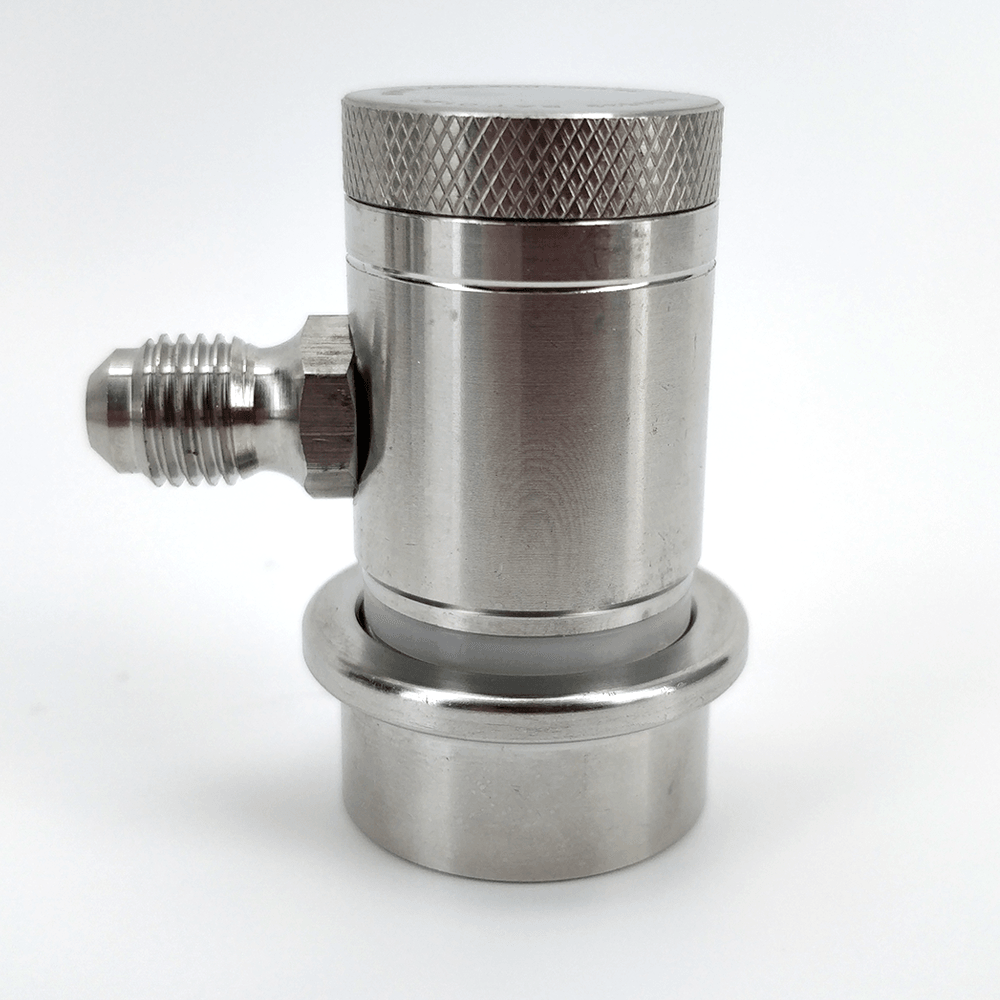

A machined stainless steel gas disconnect with an MFL thread, built for a long, leak free life on your keg. Solid stainless holds up to constant use far better than plastic, so it just keeps working. A quality upgrade for anyone serious about their kegging setup.

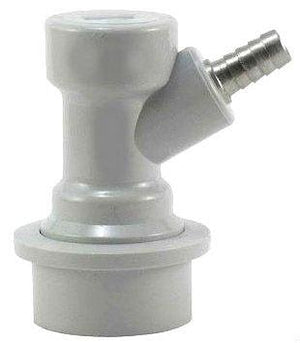

These high quality plastic disconnects are the most common homebrewer piece of equipment to attach to ball lock kegs. Our Premium Ball Locks are designed with the highest tolerances and quality control standards. The barbs are made from stainless steel not nicle coated brass like some of the other cheaper disconnects you might see on the market.

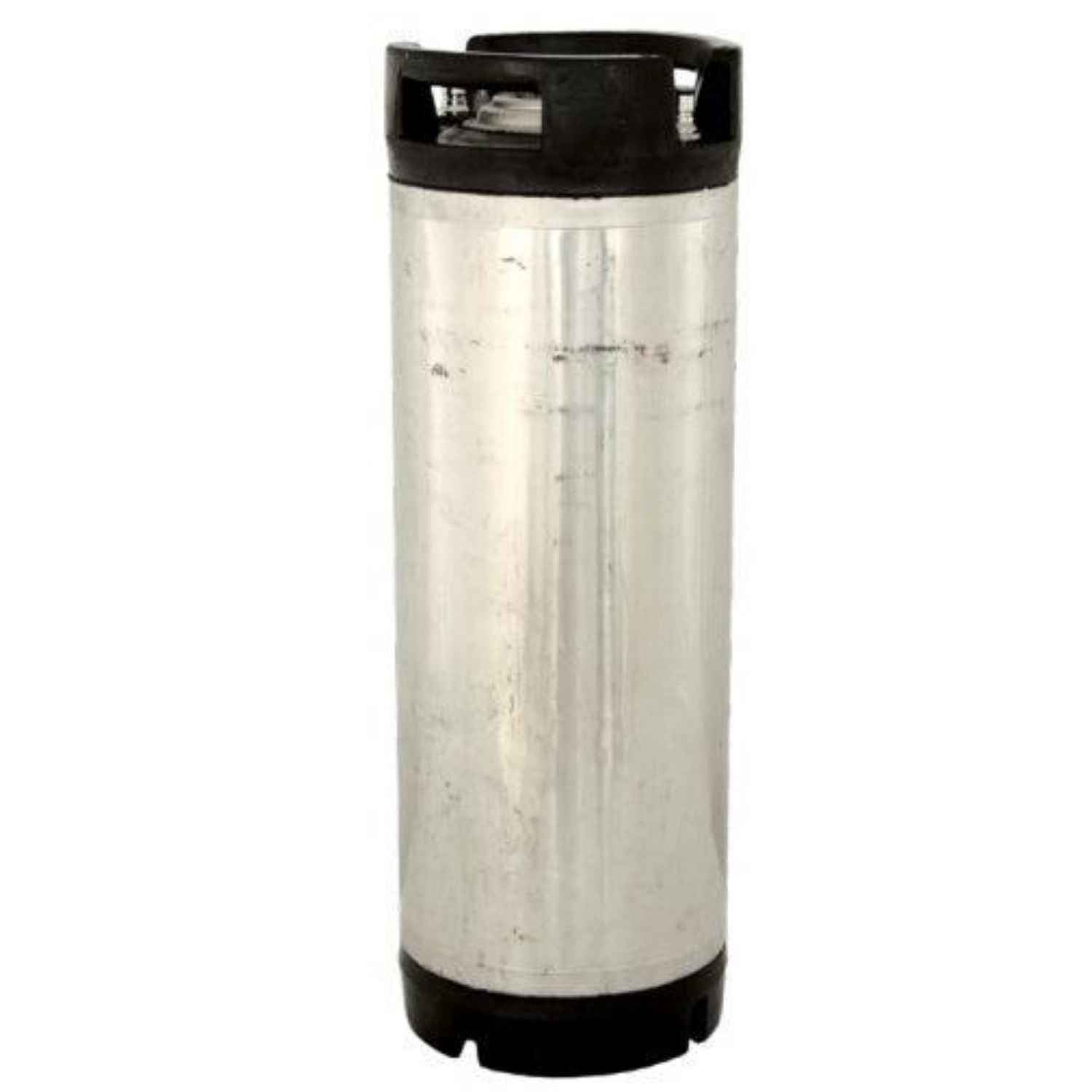

These second‑hand Ball Lock Kegs are ideal for brewers looking for a budget‑friendly option. As previously used commercial kegs, they will show visible signs of wear such as marks, dents, and general cosmetic imperfections.

Each keg has been pressure‑tested to ensure the body is structurally sound, but servicing will be required on arrival to bring it back to optimal working condition.

Custome Notice

Please note that rubber chimes and handles may come in a variety of colours, including black, red, blue, green, or yellow. Pressure relief valves may also vary, with options such as ring‑pull, manual, lever, or no PRV at all. These variations are selected at random from our large stock.

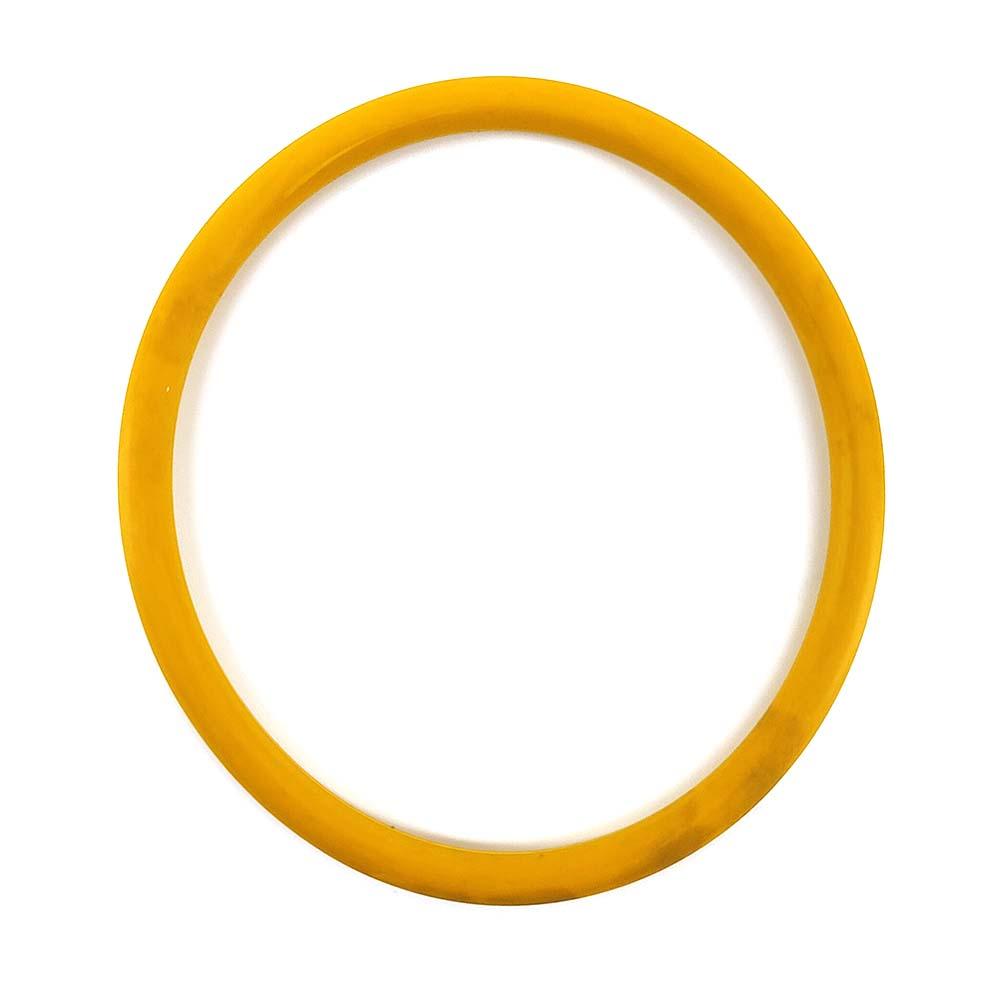

A replacement O-ring for the hatch lid of a 19 litre keg, to keep your seal tight and your beer under pressure. O-rings perish over time, so a fresh one is the easy fix for a keg that will not hold gas. A handy spare to keep your keg pouring perfectly.

** Online Price Only **

A tapping head coupler for Cornelius mini kegs, supplied with an extension pipe shank so it reaches down into the keg properly. It is the connection between your gas and beer lines and the keg itself, and the shank saves you rigging up a length of dip tube.

Confirm your mini keg takes a Cornelius style head before ordering, and give us a yell if you're not certain.

An adapter fitting that takes a Cornelius connection across to Kinglock, for washing out a keg. It means you can use the gear you already own on the other fitting style rather than buying a second set of lines.

Small, solid, and one of those parts you only need once but really need it then. Check which post style your keg carries, and ask at Laverton North or Epping if you're not certain.

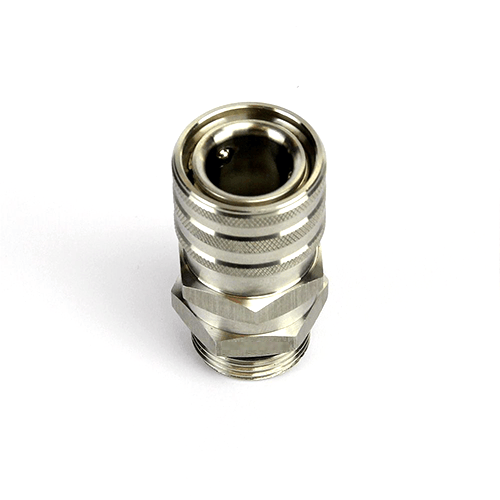

A Cornelius to Kinglock font adapter, female to male, for linking your keg gear to the K-Lok dry break system. It makes swapping and connecting lines quick and clean, with barely a drip. A handy piece for a well organised draught setup.

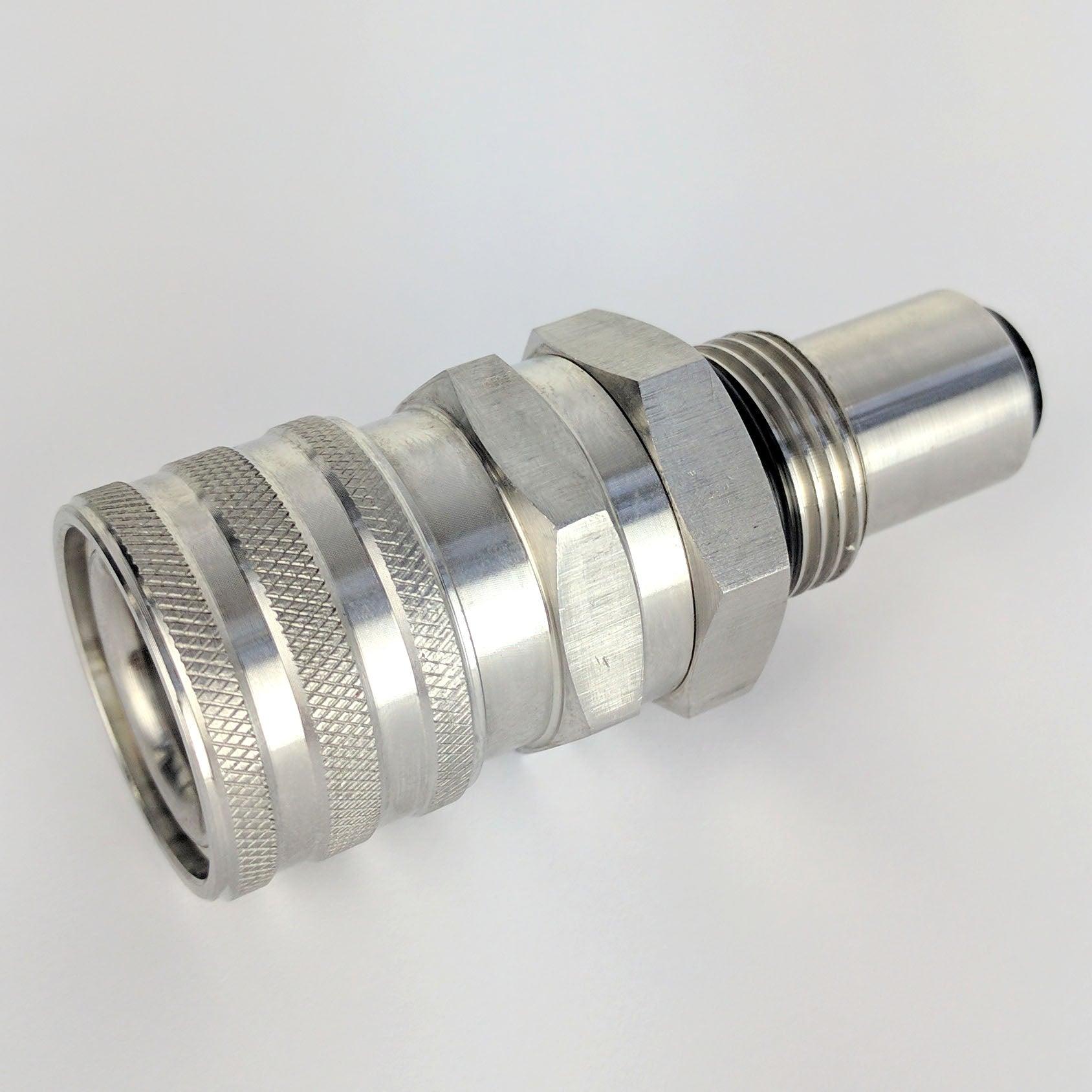

A Cornelius to Kinglock flooded font adapter, female to male with an 8mm push in, for keeping your font full and pouring perfectly. It links your keg gear to the K-Lok system cleanly and quickly. A tidy solution for a flooded font draught setup.

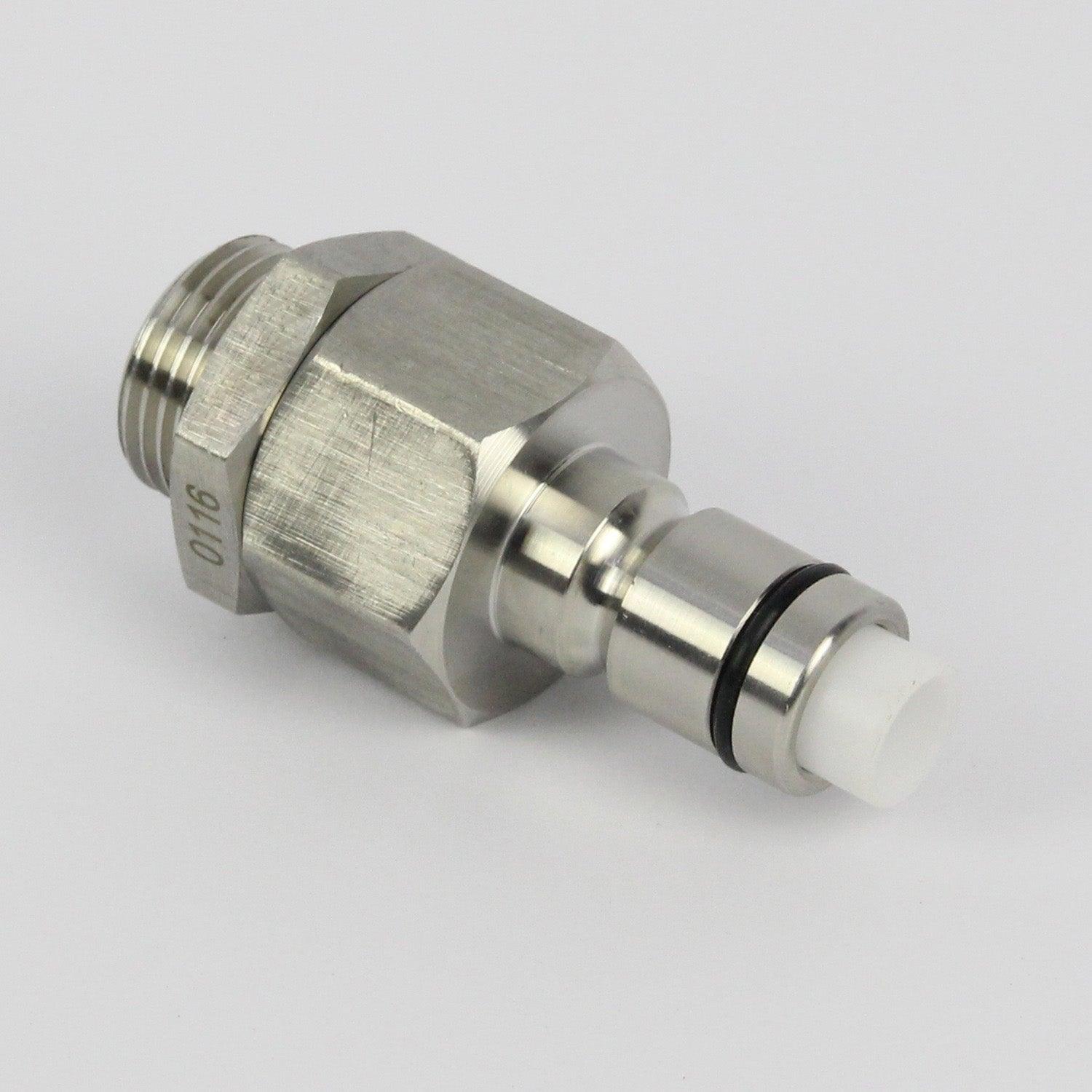

A Cornelius to Kinglock adapter with a liquid check valve, for connecting and washing out your kegs cleanly. The check valve keeps flow going one way, so cleaning and transfers stay tidy and controlled. A handy fitting for the keg lover chasing an easier clean up.

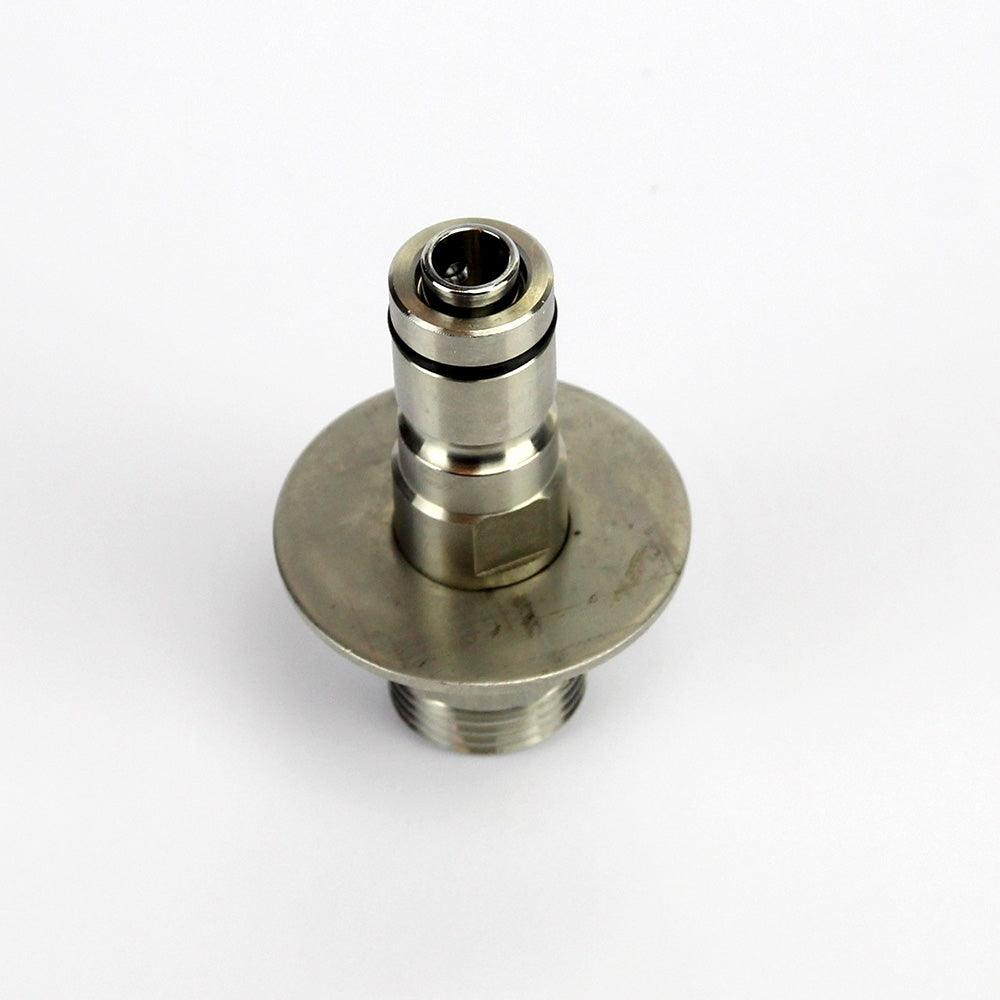

A Cornelius to Kinglock gas check valve, letting gas flow one way while stopping any beer or liquid backing up into your line. It keeps your gas side clean and your regulator protected. A small safeguard that saves a messy job down the track.

New stainless steel 50L keg with predrilled hole for electric boiler element. Perfect for use with the Keggomax FM Reflux attachment.

Keg Boiler 50lt with provision for heating element siutable to use with keggom condensor.

Code: 129413

An easy way to clean out your beer lines. Simply fill the wash out keg with a cleaning solution and attch to your keg coupler.

Includes both A-type and D-type spears for use with both coupler types.

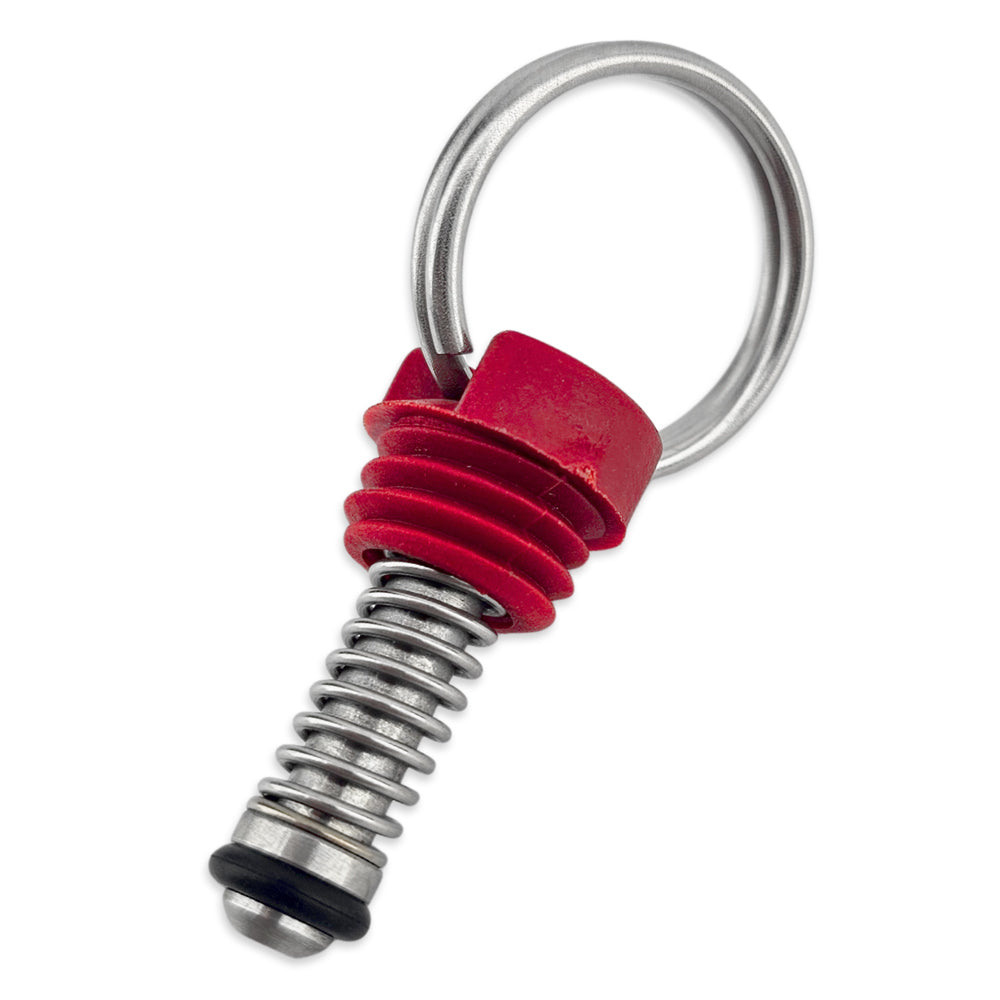

A red pressure relief valve rated to 35 psi (2.5 bar), for Cornelius type kegs and pressure fermenters. It vents safely if the pressure climbs too high, protecting your keg and giving you peace of mind. A small but important safety fitting for the home brewer working under pressure.

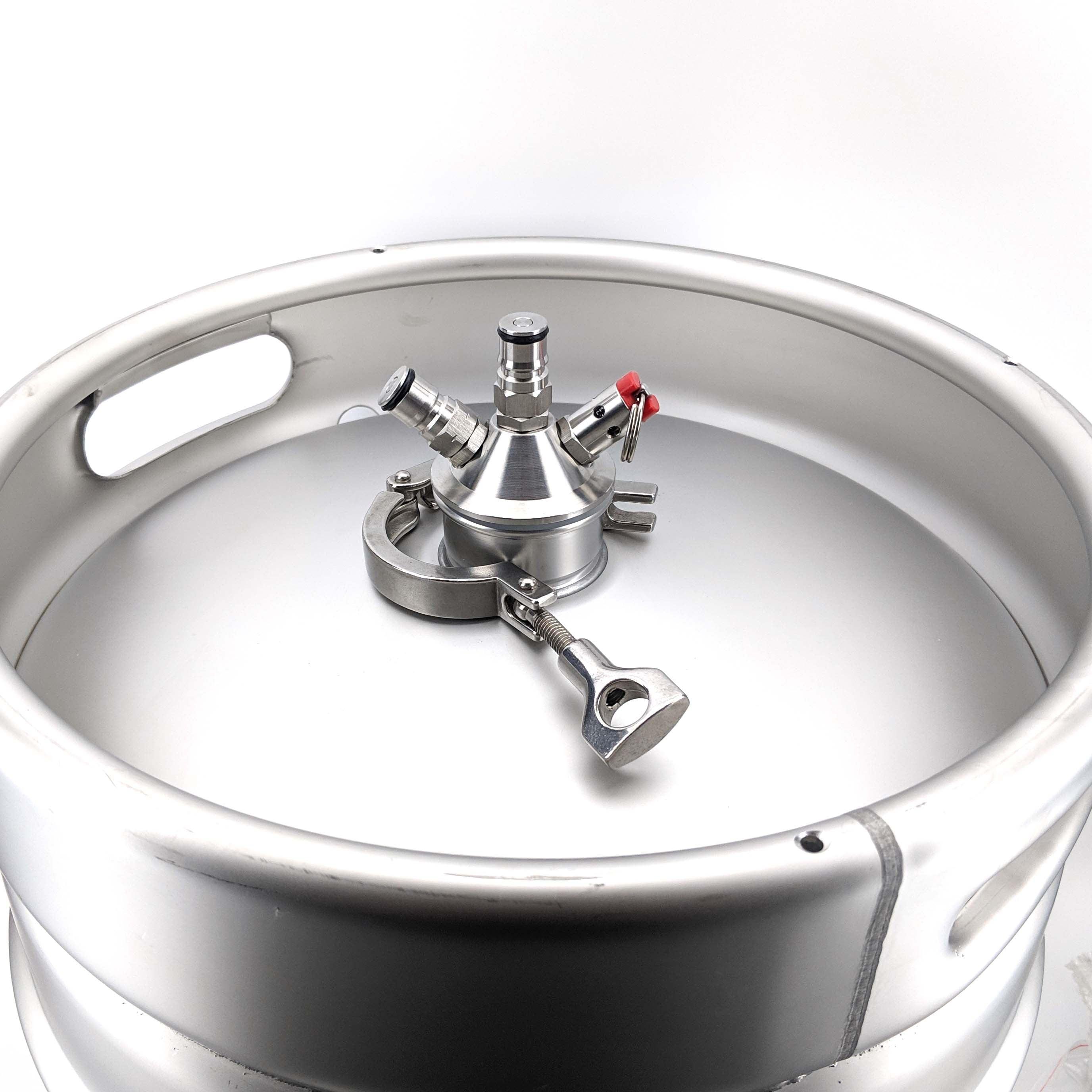

A keg tapping head that steps a Cornelius ball lock connection up to a 2 inch (50mm) tri clover, clamp included. It lets you connect ball lock gear to your commercial keg or larger fittings with ease. A clever adapter that bridges the home and commercial worlds.

Quickie - Cornelius Post Dispenser Nib
For when you need to get a sample, a top up or simply just to shoot a bit of sanitiser through your post.
Quickie is all Stainless Steel. Slip Quickie over your liquid post and push down. Quickie depresses the poppet allowing the liquid to pass through the exit tube on its side.
Quickie stops pouring when you stop pushing down.
That's pretty much it.

Question: But hey, why not just use a picnic tap?
Answer: Because,cleaning a picnic tap when all you need is a quick sample or shot of sanitiser is a royal pain. Quickie, rinses out in seconds and is ready to go again.

Question: But why not get a cheap PC Tap, MFL Shank Adaptor, and Liquid MFL Disconnect to serve from my mini keg set up?
Answer: You can. But, with Quickie you can bring your mini keg wherever, pop the Quickie in you pocket and dispense without having to bring along all the extra hardware. Just add a CO2 injector and a couple of 16gram bulbs and you're off.

Yes! You can serve and dispense from whatever you want, whenever you want, but sometimes, you just want a Quickie so you can get what you need without all the messing around.

This stainless steel ball lock keg has a capacity of 19 liters, making it ideal for use in the food and beverage industry. Its rubber top and bottom provide convenient transportation and stacking options. NSF approved, it features a durable stainless steel body, a single meter handle, and a rubber boot. It is also compatible with cornelius parts and has a diameter of 22.3cm.

Specification:

Code: 129311

Replacement seals for both pin lock and ball lock type kegs.

Includes:
-Hatch o-ring
-2 post o-rings
-2 dip tube o-rings

L__cm x W__cm x H__cm

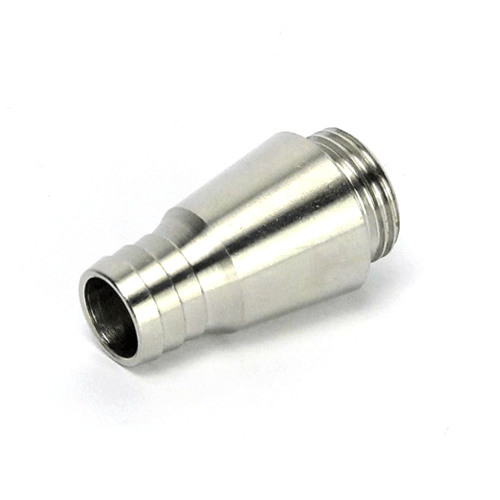

A threaded Intertap spout that steps down to a barb, made for filling growlers cleanly with minimal foam. Fit it to your tap and you can fill flat or carbonated beer straight into a growler for taking away. A simple accessory that makes sharing your brew a breeze.

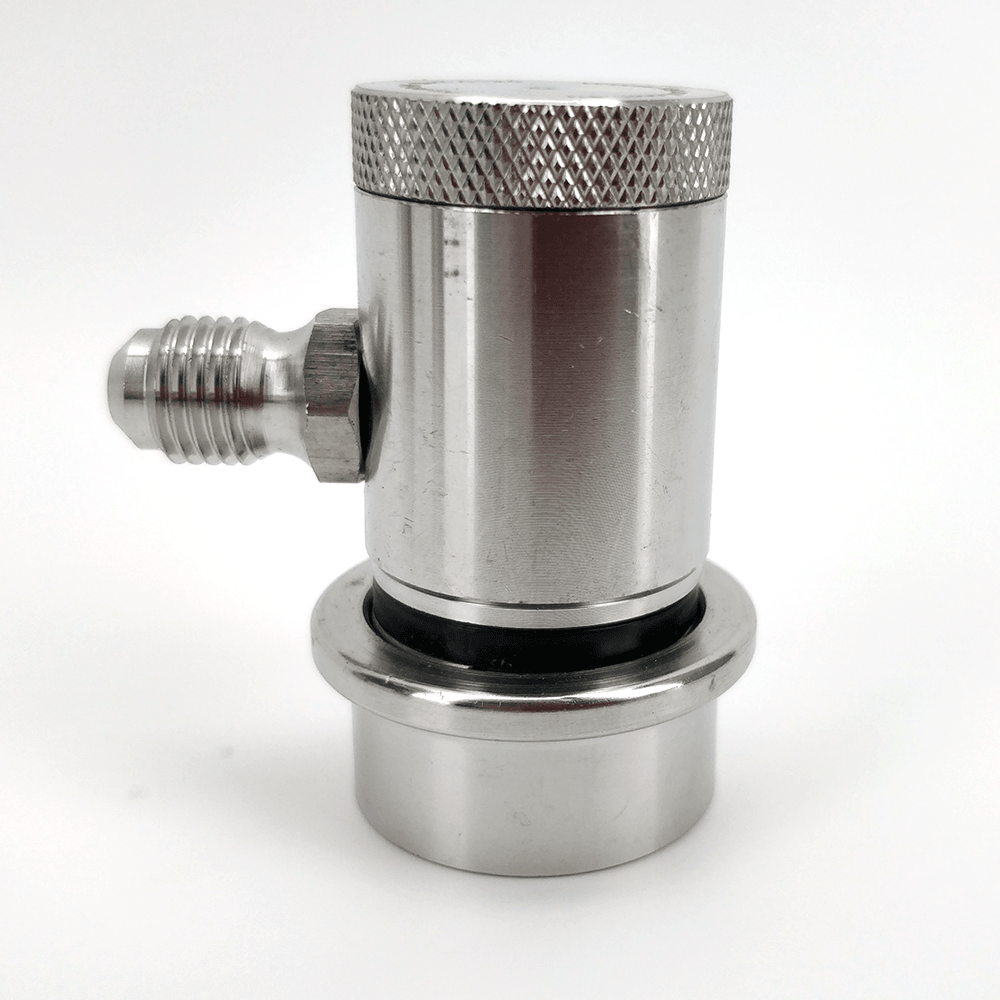

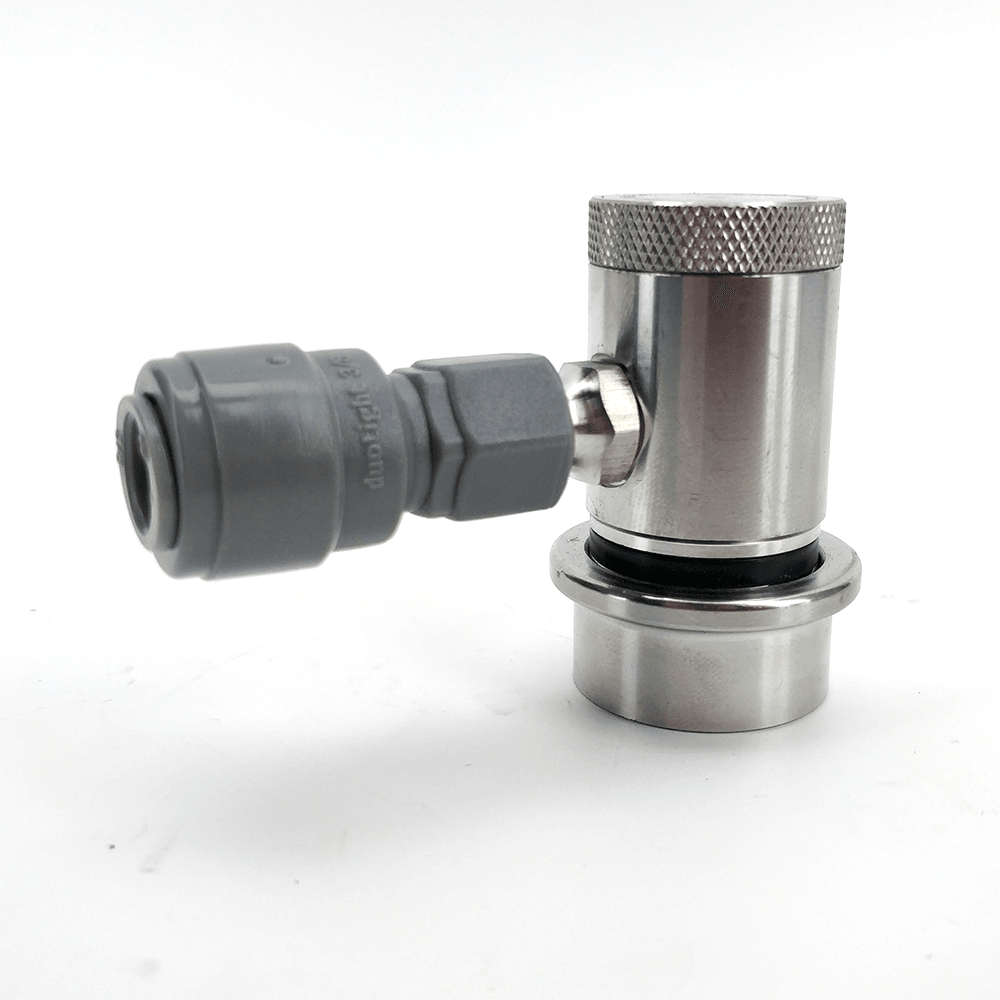

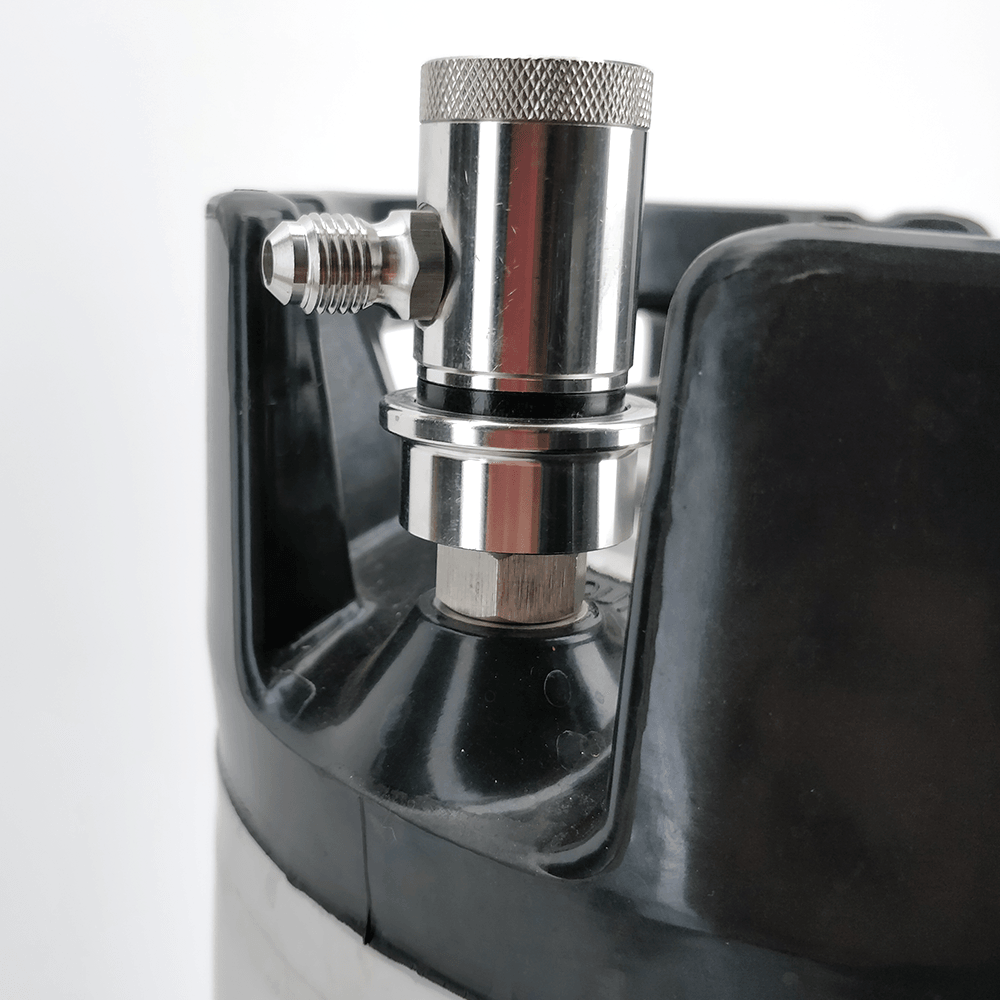

304 Machined Stainless Steel Liquid (Black) Ball Lock Disconnect With Barbed Fitting are the top of the range in stainless steel Cornelius disconnects. For both the commercial sector using corny kegs and for high-end homebrew use. Now with collar lip for easier attaching and detaching.

Suited for 19L Ball Lock kegs, or converted 50L Keg Couplers.

We recommend applying some keg lubricant to your keg posts before you attach your new Machined Stainless Ball Lock Disconnect. It will make it easier to detach when you detach the disconnect.
