All Grain Brewing Systems

Code: 127623

These flexible heat pads are manufactured from polyurethane to give water resistant properties combined with durability & flexibility. Will provide low heat for the purpose of brewing or fermenting.

Code: 127621

30W Fermenter Heating Belt easily wraps around any fermenter to help control temperatures in cold months.
Belt can simply be moved up and down the fermenter in order to control temperature.

A cooler bag made for the 30 litre brew fermenter. It wraps the fermenter to hold temperature steady, which matters more than most people expect once the weather turns.

Slips on and off without tools, so you can check the airlock without unwrapping the lot. For the 30 litre fermenter. Measure yours before ordering, and ask us if you are not sure of the fit.

Code: 129421

Sits over the edge of your kettle or keggle, allowing up to 300g of hops to be poured directly in.

Made from stainless steel with a 0.2mm aperture mesh.

• Sleek, 304-grade stainless steel build
• Includes a standard 4" tri-clamp connection that can be used to connect third-party distilling equipment
• Pressure relief valve for safer distilling
• Can be used as a steam condenser while brewing indoors (when paired with the appropriate equipment)

IMPORTANT NOTES:
The G40 & G70 Distilling Lid is designed primarily for small to medium-sized still heads that do not have heavy, off-centre attachments. The lid is reasonably flexible and is sturdy enough to fit a still head that is within the following specifications:

• A still head height up to 1.1 m (3.6 ft) from the lid.
• A still head weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or
• Condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.
  We recommend external support if:

Your still exceeds the above specifications.
The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
If the main still head (column) is noticeably leaning.

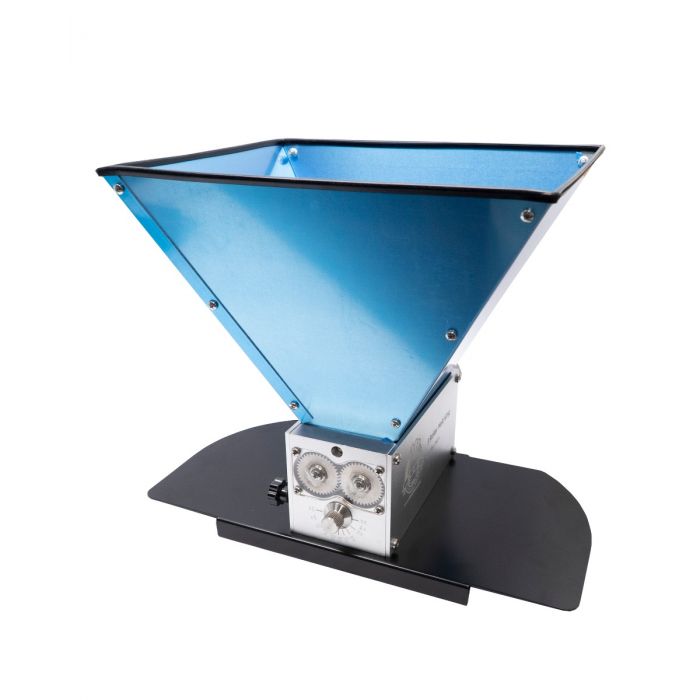

• 6kg hopper
• crank handle
• steel mounting board
• Adjustable rollers at both ends to give uniform crush
• 12 TPI knurl to efficiently pull grain through rollers while leaving hull intact to form an excellent filter bed for sparging
• 12mm crank shaft

Made from cold rolled steel and aluminium body and hopper with long lasting bearings, this 2 roller grain mill includes hopper and crank handle with adjustable rollers at both ends to give a uniform crush.

** Online Price Only **

From the creators of the original award-winning all grain brewing system, the Grainfather G70 is the next level in brewing equipment. The ultimate Brewing System with a gigantic 70 L capacity, allowing you to create 60L batches of beer at a time. Now featuring a new perforated grain basket and an integrated sight glass now as a part of the recirculation pipework.

• Wireless brew session control. Connect your smart controller to the Grainfather app for remote-controlled brewing.

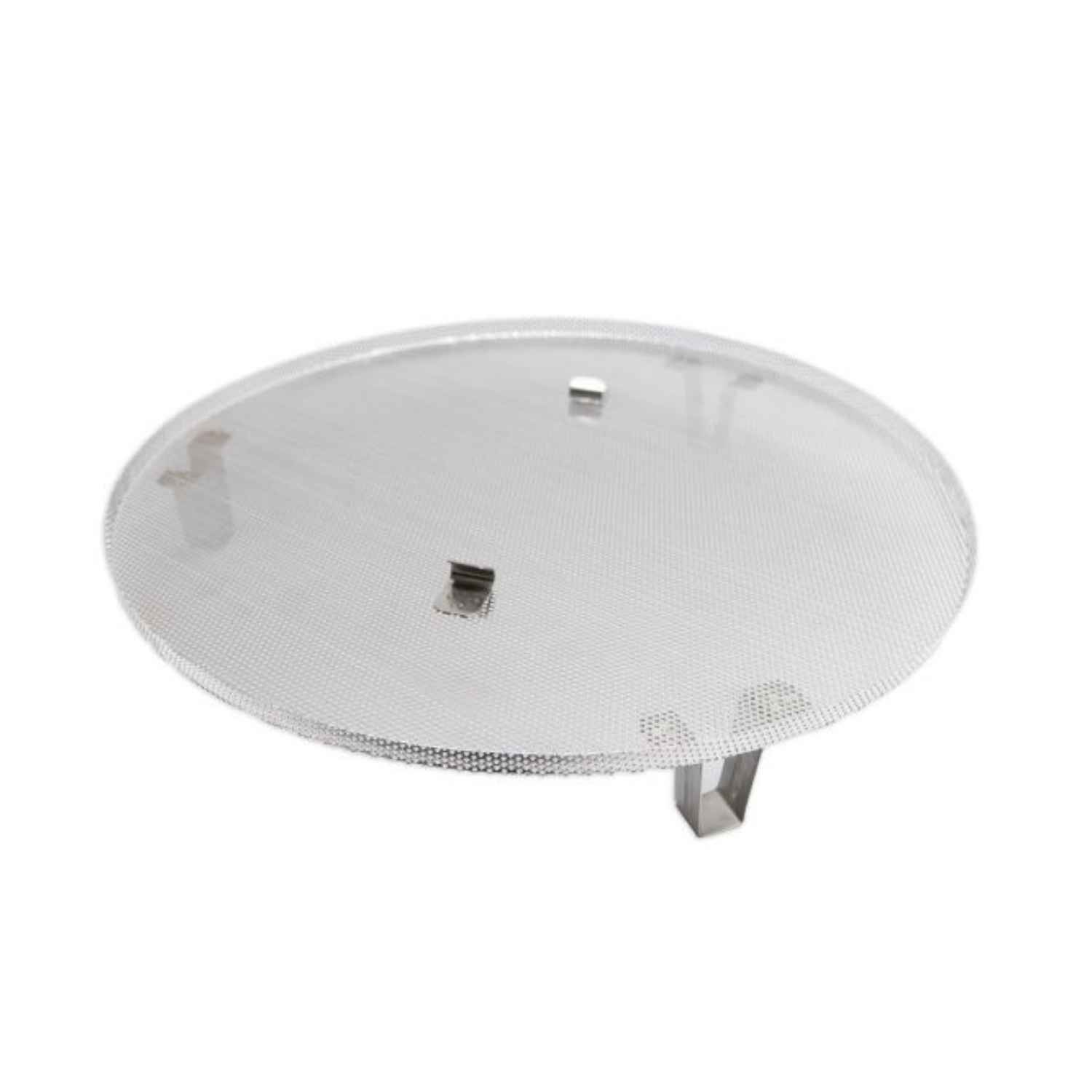

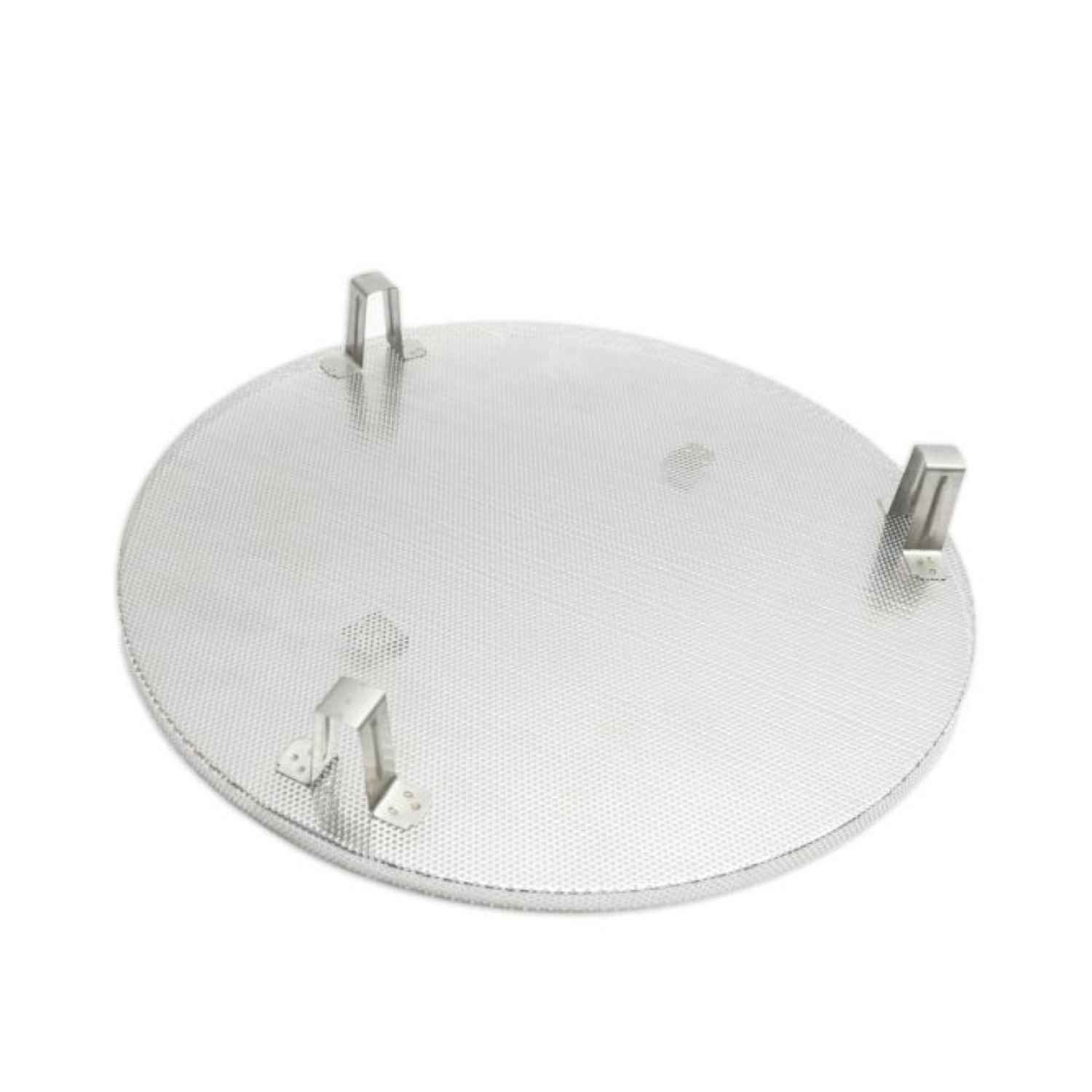

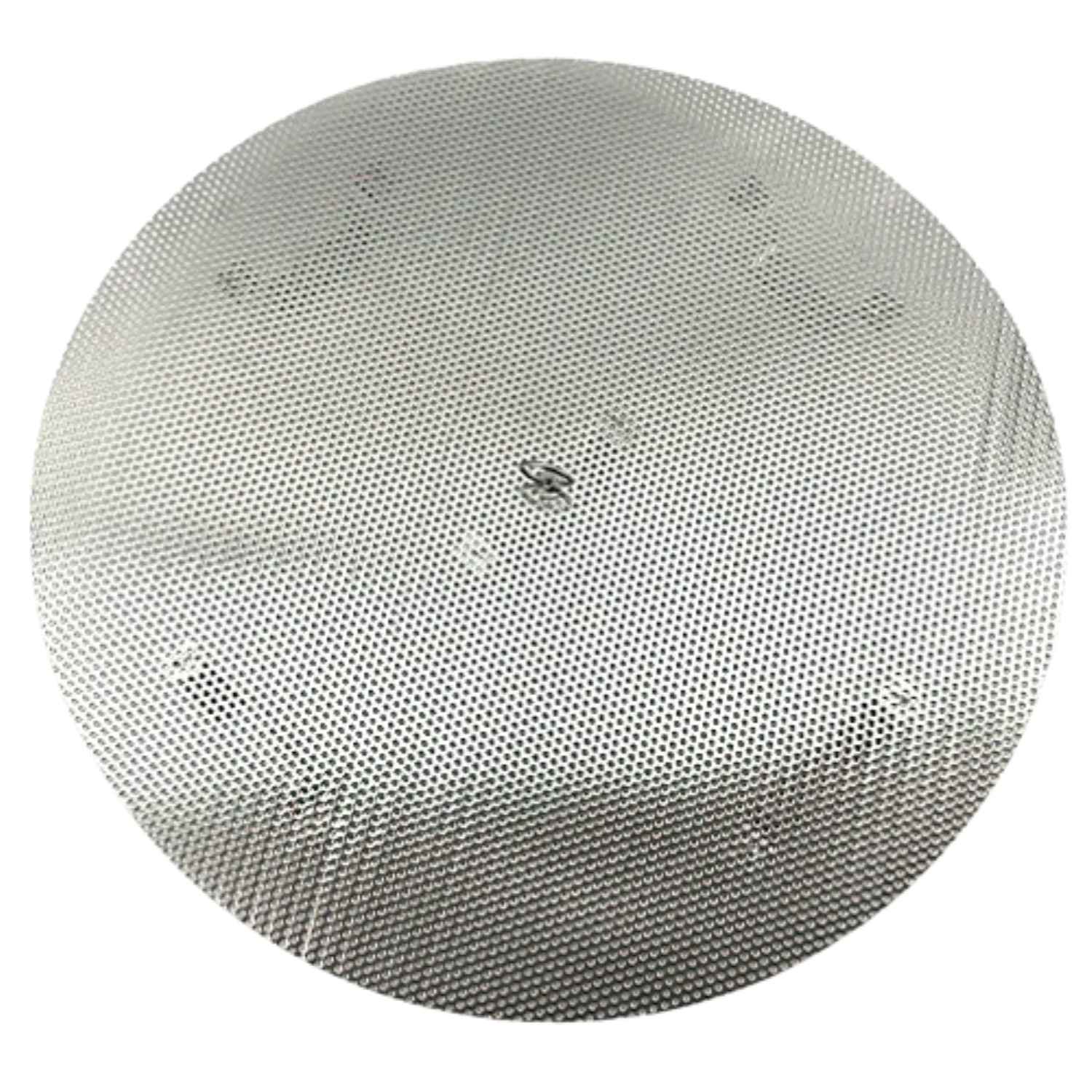

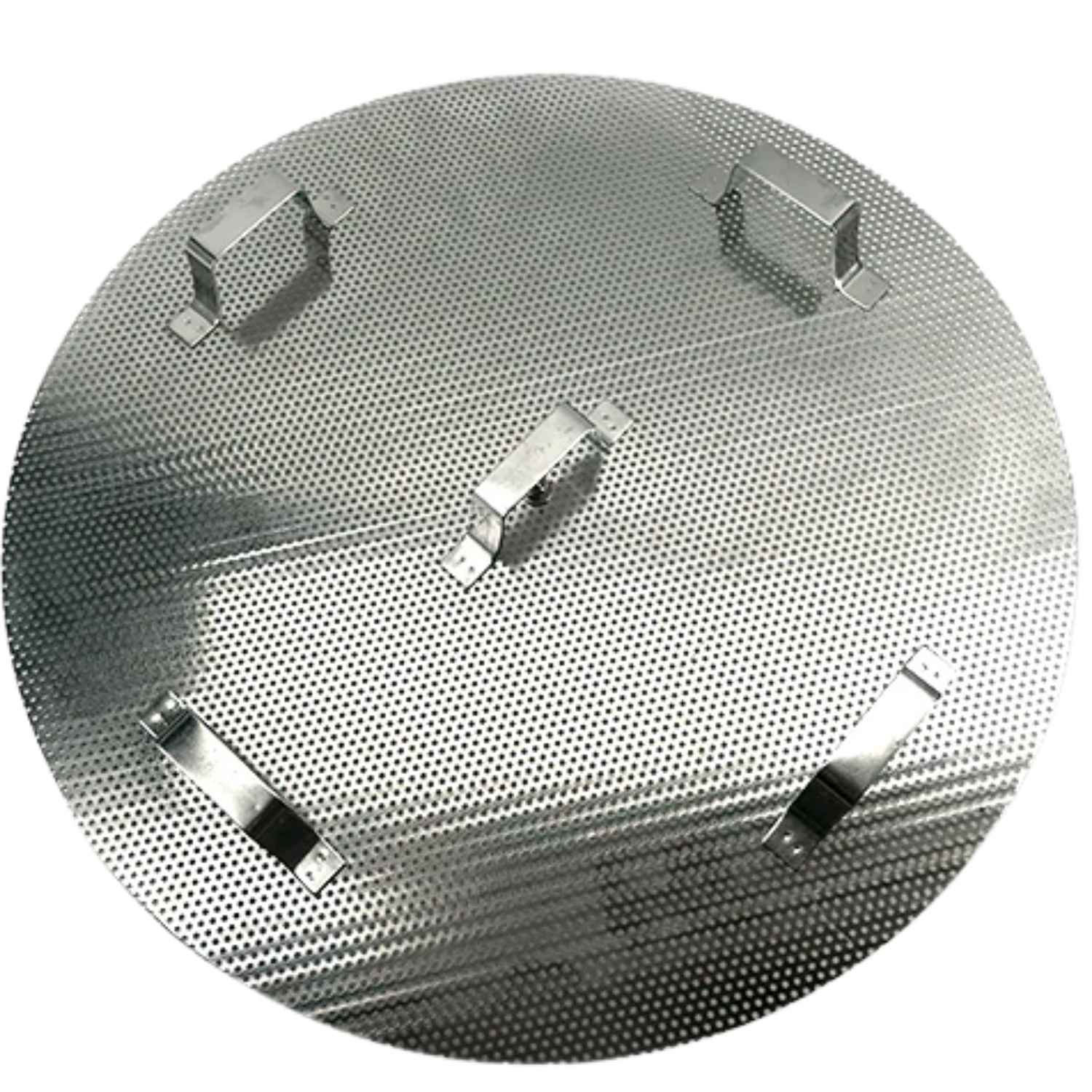

• Two stage false bottom. The conical base allows a false bottom with an inner collar to sit in the recess of the base. Early testers used 21 oz (600g) of hops and saw full flow through the pump. Very effective!
• Concealed conical heating element. The element covers 80% of the base and it's mounted using thermal paste rather than braised. This increases heat efficiently, by minimizing heat loss in areas it’s not needed. The wide heating area minimizes hot spots and scorching. Most solids settle on the false bottom, not the elements, making clean up a breeze.
• Integrated sight glass for easy volume readings. Instead of trying to judge the level of your preboil, you can now sparge until you reach preboil volume. It’s also easy to clean. The sight glass cap can be replaced with the sight glass cleaning barb to recirculate cleaner.
• High temp & flow rate, food-grade pump. With a 2 Gal (8L) per min flow rate, you can transfer your brew efficiently and safely.
• Convenient side entry recirculation. Rather than up and over, the G70 has a built in side port. If the pump is accidentally switched on, the wort is safely directed back into the boiler.
• New rolled edge, mash plates and hop filter for increased strength and easy set up. No more silicone seals, the plates have a smooth finish, making them more robust, hard-wearing, and easy to install. Compared to the G30, the G70 is wider, but not much taller. Comparatively, draining is quick from the basket and there’s less likelihood of a stuck sparge as the draining surface is bigger.
• Safety aspects including locked in support ring, heavy duty, no slip brackets on the grain basket and protection from knocking the ball valve open.
• Automatic heat sensors and safety cut-out for dry boil protection.
• Huge Wort Chiller. Despite the volume more than doubling, cooling times remain about the same as the G30 thanks to a powerful pump, efficient false bottom, and bigger wort chiller. The large size means it needs to be positioned away from the G70, however, this is made easy with longer silicone tubing.
• Lifting bar included with winch lifting hook. Use the bar for a two person lift or use a winch system for individual brewers.
• Large dual-stage hop filter provides a large surface area to allow for a hopping rate of up to 3.25 lbs (1.5kg) which also reduces pump load and blockages.
• Clean in place (CIP) capability. Cleaning after a brew session has never been so quick and easy. With CIP capability, there are minimal parts that need to be removed and individually cleaned. Every G70 has a cleaning filter included. Simply add your cleaner, run water through the unit, and drain.
  Electrical Req:
  • Power Req: 3300 W, 220-240 V, 50Hz/60Hz
  • Power Supply Outlet Req: NEMA 6-15R or NEMA6-20R compatible
  Specs:
  • Dimensions: 35.6" H x 24.4" L x 22.6" W
  • Weight: 80.5lbs (103lbs shipped)
  • Volume: Max Preboil 18.5 Gal (70L)
  • Batch Size: Max 17.2 Gal (65L), Min 10.5 Gal (40L)
  • Grain Weight (dry): Max 37.5lbs (17kg), Min 17.6lbs (8kg)
  • 304 Stainless Steel
  • Power Req: 3300 W, 220-240 V, 50Hz/60Hz
  • Power Supply Outlet Req: NEMA 6-15R or NEMA6-20R compatible
  • Heating Element: 3150 W
  • Power Cord Length: 8.2ft (2.5m)
  • Mash Tun Dead Space: 1.8 Gal (4L)
  • Boil off rate: 1.1 Gal (4L) per hour
  What's Included?
  • Grainfather G70
  • Counter Flow Wort Chiller
  • Dust cover
  • Mash recirculation hose
  • Lifting Bracket
  Required Specifications for the App:
  iPhone/iPad
  • iPhone 5 or higher
  • iOS10 or higher. Must have Bluetooth 4.0 or higher
  Android
  • Android 5.0 (API Level 21 - Lollipop) or higher
  • Must have Bluetooth Low Energy (LE)/Bluetooth Smart

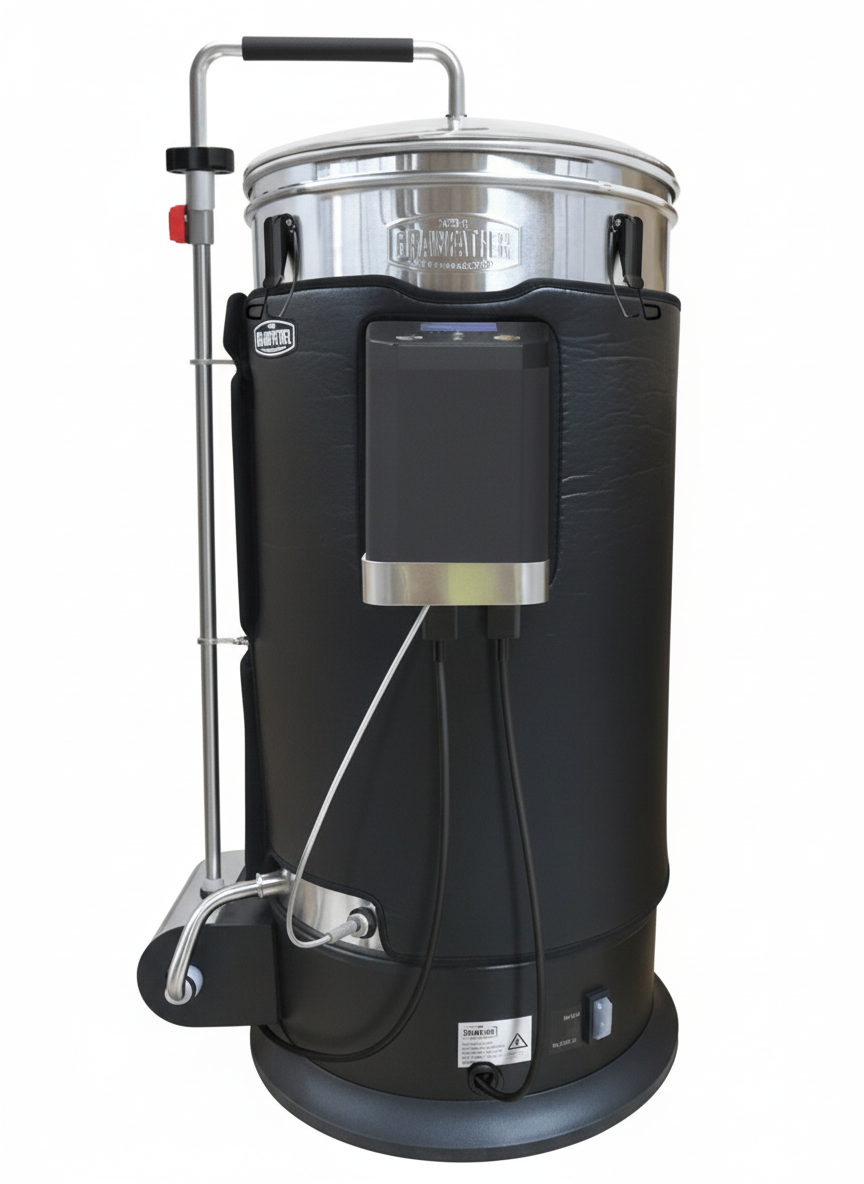

This heat insulation jacket is designed to be used with the Grainfather to keep heat contained in the boiler and maintain a constant temperature during your brew during cooler times of the year.

Designed for the Grainfather for heat insulation, especially in colder temperature areas. Easy to wipe clean, polyurethane outer layer, and machine washable.

Features

• Material - SBR Foam (11 mm thickness)
• Designed for the Grainfather for heat insulation, especially in colder temperature areas.
• Easy to wipe clean, polyurethane outer layer, and machine washable.

2 Inch TC Clamp - 2 Segments:

Made from 304 stainless steel and compatible with wide range of other standard 2inch tri-clover fittings.

This is a standard 2inch tri-clover clamps. They are commonly used in brewery hardware and are compatible with our Alcoengine Pot Stills and Reflux Stills and will allow you to connect these stills to keg boilers.

They are often used on brewery hardware larger than 100L in size.

2 Inch TC Beaded Seal - Silicone:

This silicone beaded seal is 2" is suited to sanitary tri-clover clamp connections. The seal itself can come in a wide range of colours (chosen at random based on supply at the time.)

Colours can include: White, Black, Brown, Transparent, or Semi Transparent White and Blue. Temperature Range: -54°C to 200°C

Cornelius Type Pressure Relief Valve (PRV) (RED 35psi / 2.5BAR):

Graduation volume stickers for the Fermentasaurus conical fermenter, sold by Keg King as an accessory. They let you read the level off the side of the vessel instead of guessing from the top.

Listed for the Fermentasaurus conical. If you are hoping to run them on another fermenter, measure your vessel first or ask us and we will check.

Perfect heating solution for those who want more even coverage and absolute certainty that their PET fermenter will not melt even if the fermenter is empty.

FermZilla Heating Wrap Belt - With Velcro Strap (30watts)

Perfect heating solution for those who want more even coverage and absolute certainty that their PET fermenter will not melt even if the fermenter is empty.

Punching in at an ample 30 watts, this heating wrap belt is great when paired with insulation and a temperature controller box to dial in that optimum fermentation profile.

Dimensions:
1000mm x 250mm

AU Plug

A 300 watt immersible glass heater by EHEIM of Germany, for precise fermentation temperature control. German build quality means reliable, even heat to keep your ferment in the sweet spot for clean, consistent results. A quality choice for the brewer who takes temperature seriously.

A 2200W heating element rod with cable, from Kegland. A straight replacement part for a vessel already set up to take an element of this rating, sold on its own. Check the rating and fitting on your existing element before you order, and bring the old one in if you would rather we compare the two side by side.

An insulation jacket for the 35 litre Fermentasaurus conical fermenter. It wraps the vessel and slows the swing in temperature when the shed warms up through the day, which is half the battle with fermentation in a Melbourne summer.

Made for the 35 litre conical, so check your fermenter size before ordering. Tell us which model you are running and we'll confirm the fit.

Code: 130171

Replacement two stage hose barb that screws into the dump valve of plastic conical fermenter.

Code: 130170

Replacement gravity lid kit for plastic conical fermenter.

Code: 130169

Seal kit for the butterfly dump valve for plastic conical fermenter.

Replacement Butterfly Dump Valve assembly for plastic conical fermenter.

Code: 130164

Rotating racking arm for plastic conical fermenter, allowing clear beer to be racked from the centre of the fermenter. Requires hole to be drilled in fermenter in order to install.
