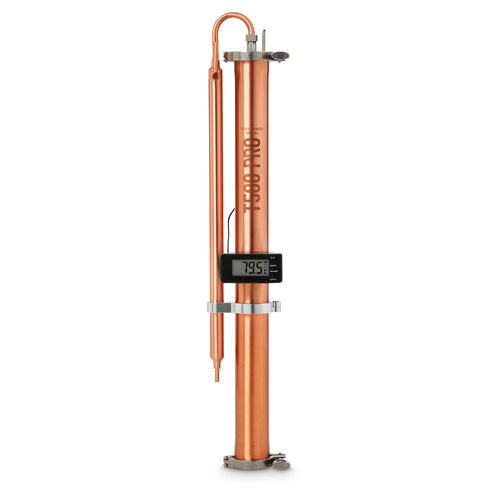

Still Spirits Create+ T500 Pro Column & Condenser

Engineered for modularity and performance, the T500 Pro is an all-in-one reflux column and condenser designed to streamline the distillation process while delivering exceptional results. This innovative unit combines advanced functionality with unmatched convenience, eliminating the need for separate components. Its integrated design features a pre-packed column with both copper and stainless steel saddles, optimising vapour reflux and elevating the quality of your distillate.

Constructed from the highest quality materials, the T500 Pro is crafted with precision using T2-grade copper for the column and cold finger coil, complemented by durable stainless steel tri-clamp ferrules. The use of copper in the spirit path enhances the distillation process by reducing unwanted compounds, ensuring a cleaner, smoother finish. Food-grade, high-temperature silicone seals are included for use in the tri-clamp connections.

The T500 Pro features a thermowell at the top of the column for accurate vapour temperature monitoring, a beeping alarm thermometer with adjustable high and low temperature alerts, and robust 2” tri-clamp fittings for a secure, modular setup. The detachable product condenser and removable cold finger cooling coil offer added versatility, while improved water efficiency saves up to 30% compared to the original T500, depending on usage.

Ideal for producing clean, neutral alcohol, the T500 Pro delivers exceptional clarity and purity in every run. It can reach up to 93% ABV and recover up to 95% of the alcohol from your wash—producing a neutral spirit that’s ideal for vodka or as a base for flavourings, gins, and other botanical spirits. The T500 Pro is perfect for distilling water, thanks to the combined performance of copper and stainless steel saddles, which aid in the effective removal of impurities.

The T500 Pro is compatible with the Create+ Boiler 25 L and the Grainfather G30, G40, and G70 Brewing Systems, making it a powerful and flexible addition to any distiller’s setup.

Features:

• All-in-one reflux column and condenser
• Suitable for distilling water and alcohol
• Constructed from high-quality T2-grade copper with stainless steel tri-clamp ferrules
• Designed in New Zealand
• Pre-packed with copper (105 g) and stainless steel saddles (485 g)
• 2" tri-clamp connections
• Integrated thermowell in the column head for accurate vapour temperature readings
• Beeping alarm thermometer with adjustable high/low temperature alerts
• Removable cold finger cooling coil and detachable product condenser
• Food-grade silicone seals
• Saves up to 30% water compared to the original T500 (depending on usage)
• Compatible with Create+ Boiler 25 L, and Grainfather G30, G40, and G70 Brewing Systems

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

What's Included:

• Create+ T500 Pro Column & Condenser
• 2 x Create+ 2" Tri-Clamps
• Copper and Stainless Steel Saddles (Pre-Packed)
• Create+ Beeping Alarm Thermometer with 2" Mounting Bracket
• 2x Cooling Water Tubes
• Ceramic Boil Enhancers
• Tap Adapter Flow Controller with Kitchen and Garden Tap Adapters
• Instructions

Specifications:

• Dimensions: H 67.7 cm x W 12.1 cm x D 10.8 cm
• Weight: 2.63 kg
• Warranty: 3 years
• Ease of Use: Intermediate
• Average water use during distillation: You will use approx. 140 L (37 US Gal) per 25 L distillation.*
• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 8 kg (17.6 lb) of sugar**
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)**

* When used with the Create+ Water Flow Regulator.

**Per 25 L (6.6 US Gal) Turbo Classic 8 Production pack wash using the Create+ Boiler 25 L and T500 Pro Column & Condenser.
